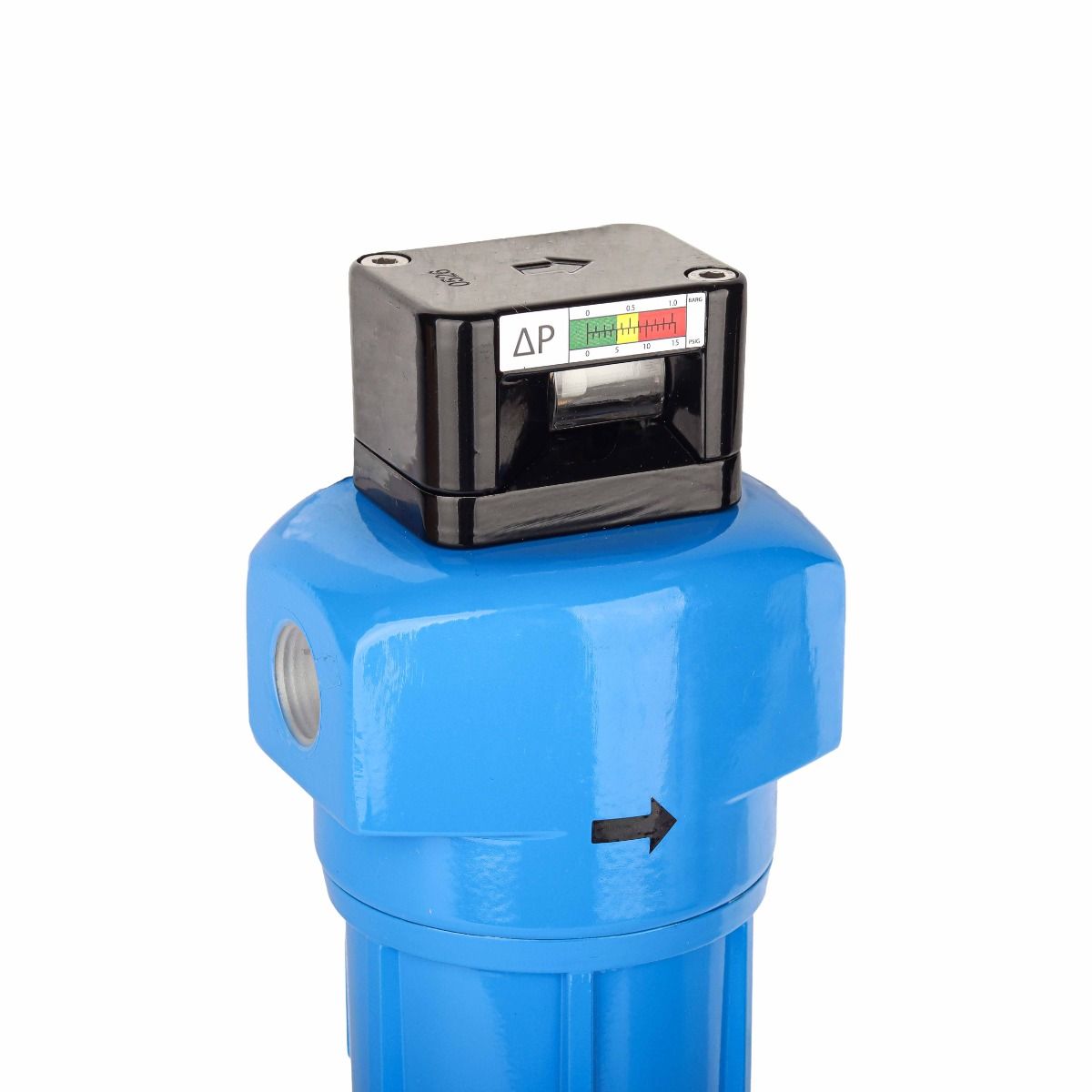

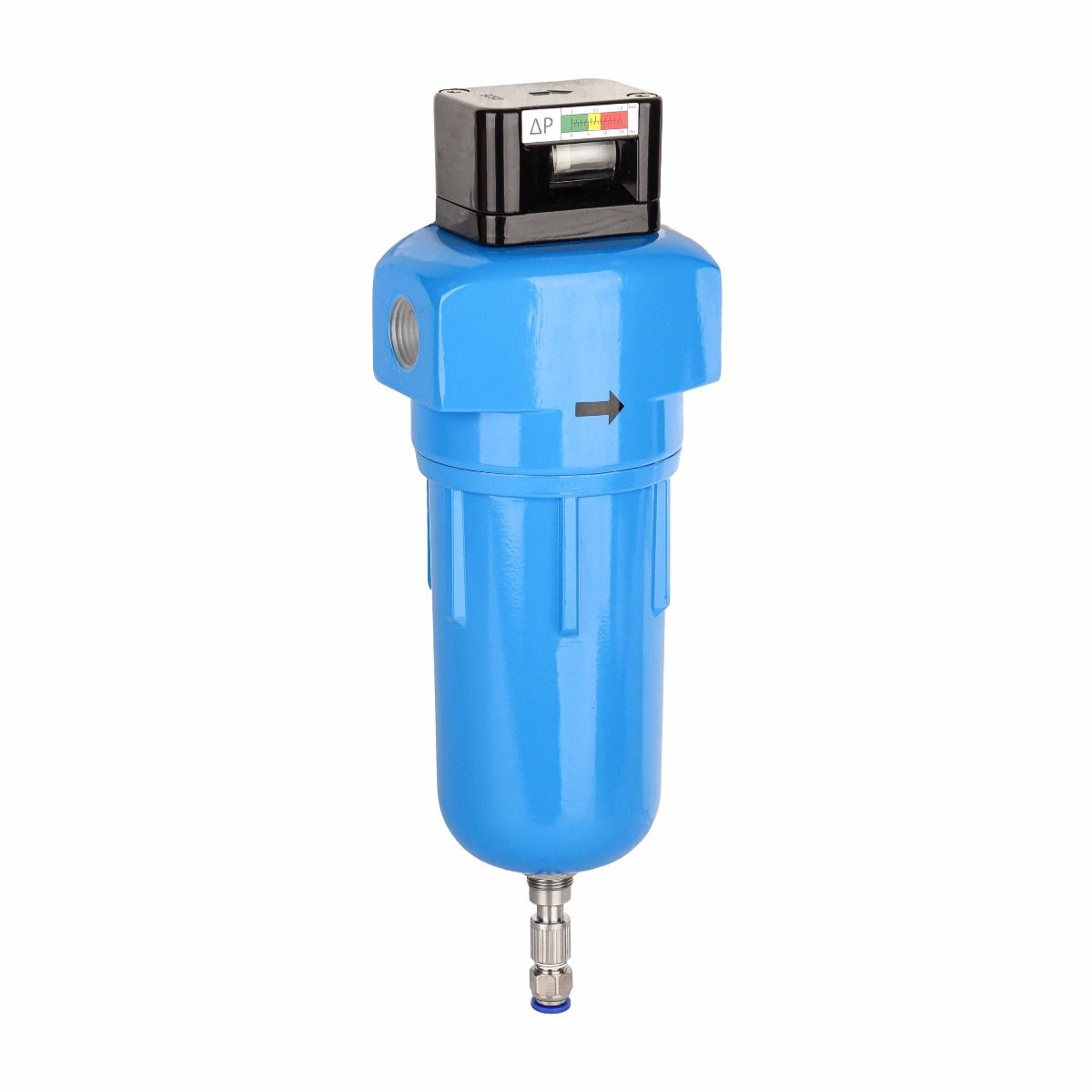

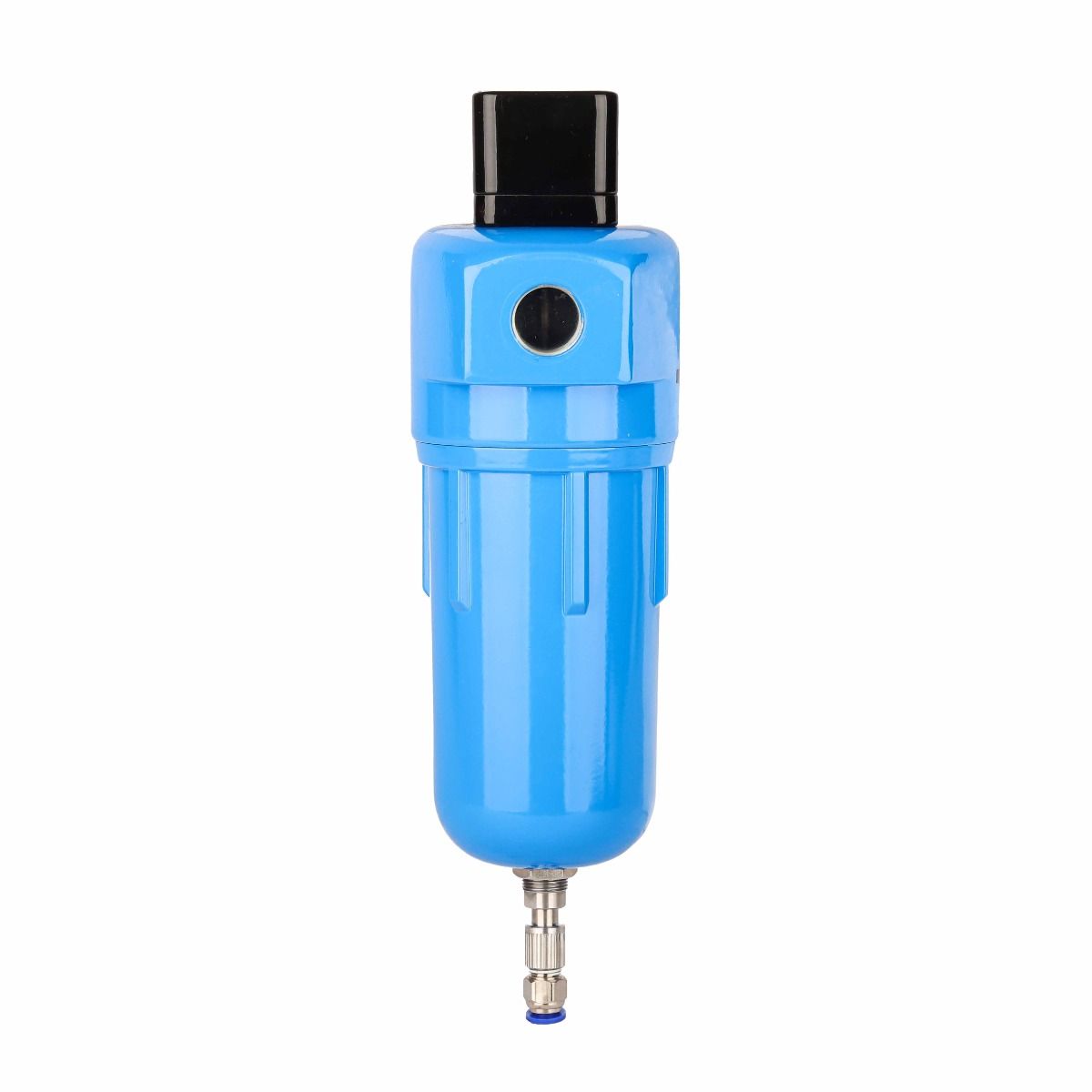

ARTIC DRIERS E50-100 1/2" E-Series Air Filter (U Grade)

Purify Your Compressed Air: Ensure the purity of your compressed air with our E-Series Filter, minimizing downtime and maintaining the quality of your end products.

Key Features:

• General filtration with particle removal down to 1 micron.
• Oil content control, reducing it to 0.1 mg/m3 at 20°C.
• Highly efficient pleated filtration media for a superior clean.
• Compatible with a range of applications, offering versatility and customization.

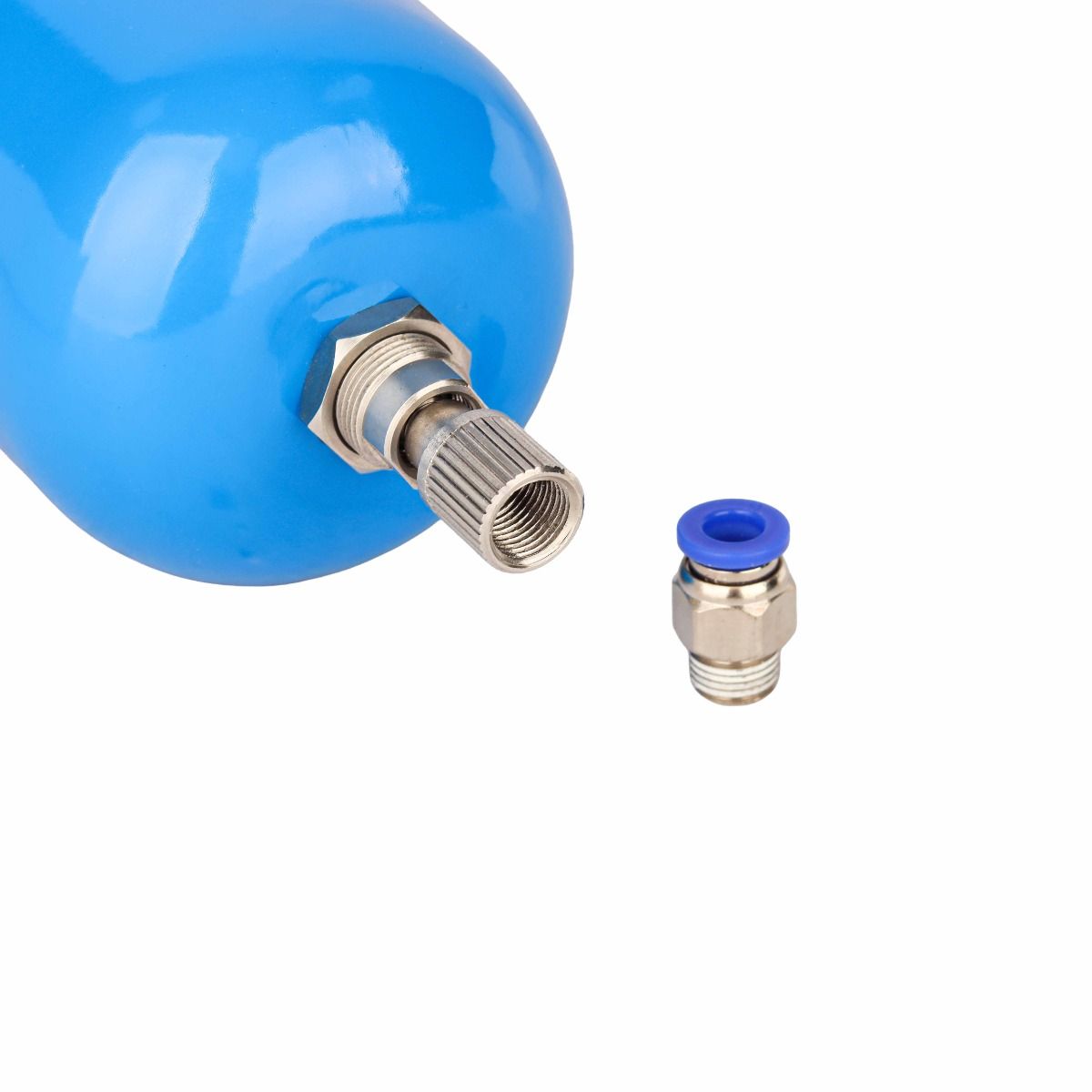

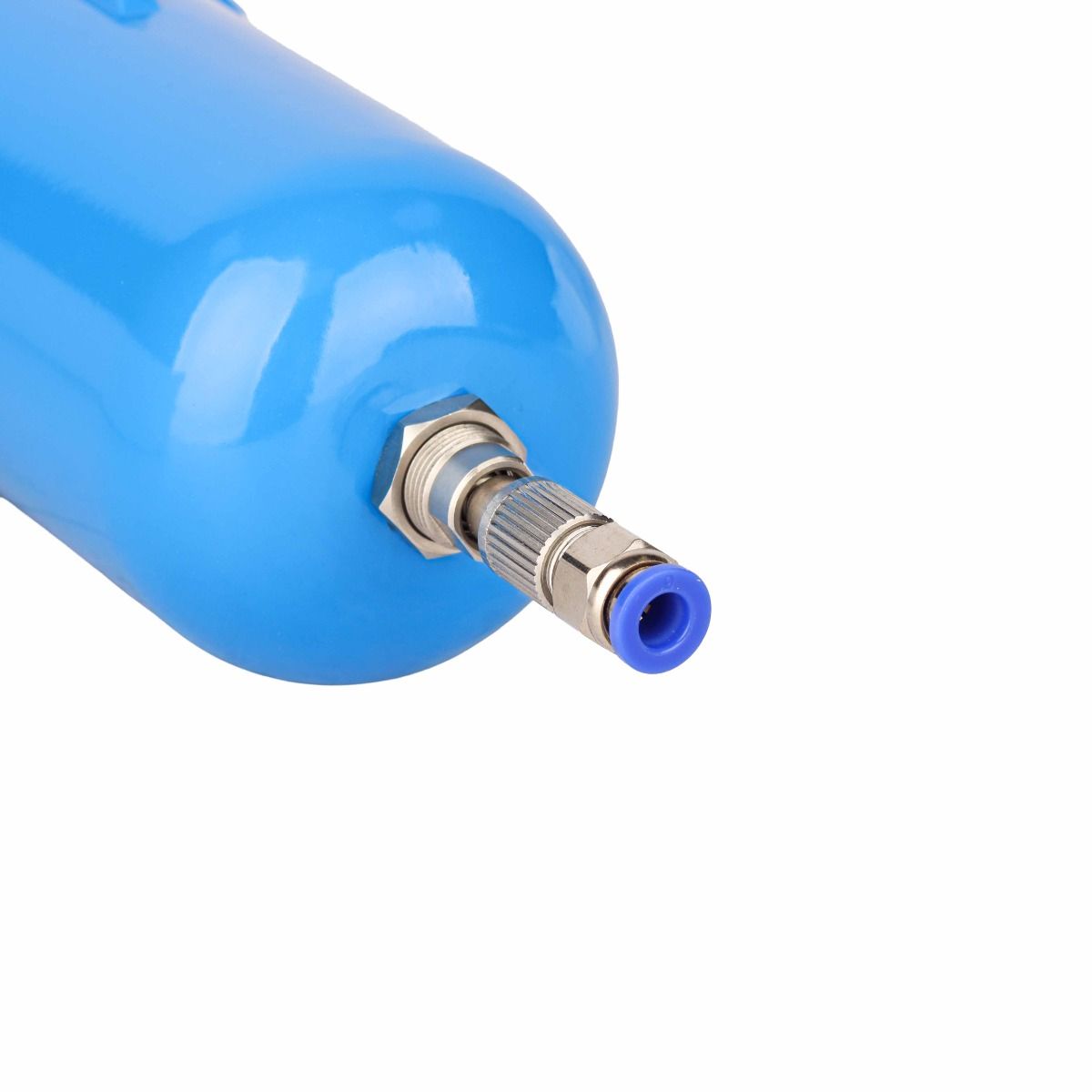

• Equipped with either an automatic or manual drain to suit your needs.

Specifications:

Constructed to handle a maximum pressure of 16 bar g, our filters are designed for both efficiency and durability. With an optimal operating temperature range from 1°C to 60°C, they can withstand a variety of industrial environments. The housing material for G-Type filters is aluminium, ensuring longevity.

Advantages:

• Enhanced filtration area for improved performance.
• Increased dirt holding capacity for less frequent cleaning.
• Reduced pressure drop for a more efficient operation.
• Potential for higher airflow to maximize productivity.

Product Details:

Our E-Series air filters come with pleated filter elements that significantly increase the filtration area, resulting in higher efficiency and airflow. These filters are designed to meet the European Pressure Equipment Directive (PED) 97/23/EC standards, ensuring safety and reliability.

The approximate weight of the filter is 0.95 kg, not including packaging and gauge, making it a lightweight addition to your system. The E50-100 model has a capacity of 53 CFM at 7 bar g, making it suitable for various industrial applications.

Why Choose ARTIC DRIERS Filters?

With essential parts imported from Europe's renowned suppliers and our high-quality pleated filtration media, ARTIC DRIERS provides a well-engineered solution to air purity that stands apart from the rest.

Important Considerations:

When choosing a filter, consider the particle and oil removal specifications to ensure they meet your system's requirements. Our filters are capable of general filtration, with a nominal initial pressure drop of 0.05 bar g, offering you a cost-effective and reliable solution for air purification.
