Engineering EquipmentMAC AFRIC 160 MM 3-Jaw Self Centering Chuck (K11/160/D4)
MAC AFRIC 160 MM 3-Jaw Self Centering Chuck (K11/160/D4)MAC AFRIC 160 MM 3-Jaw Self Centering Chuck (K11/160/D4)

MAC AFRIC 160 MM 3-Jaw Self Centering Chuck (K11/160/D4)

SKU: EACHUC102

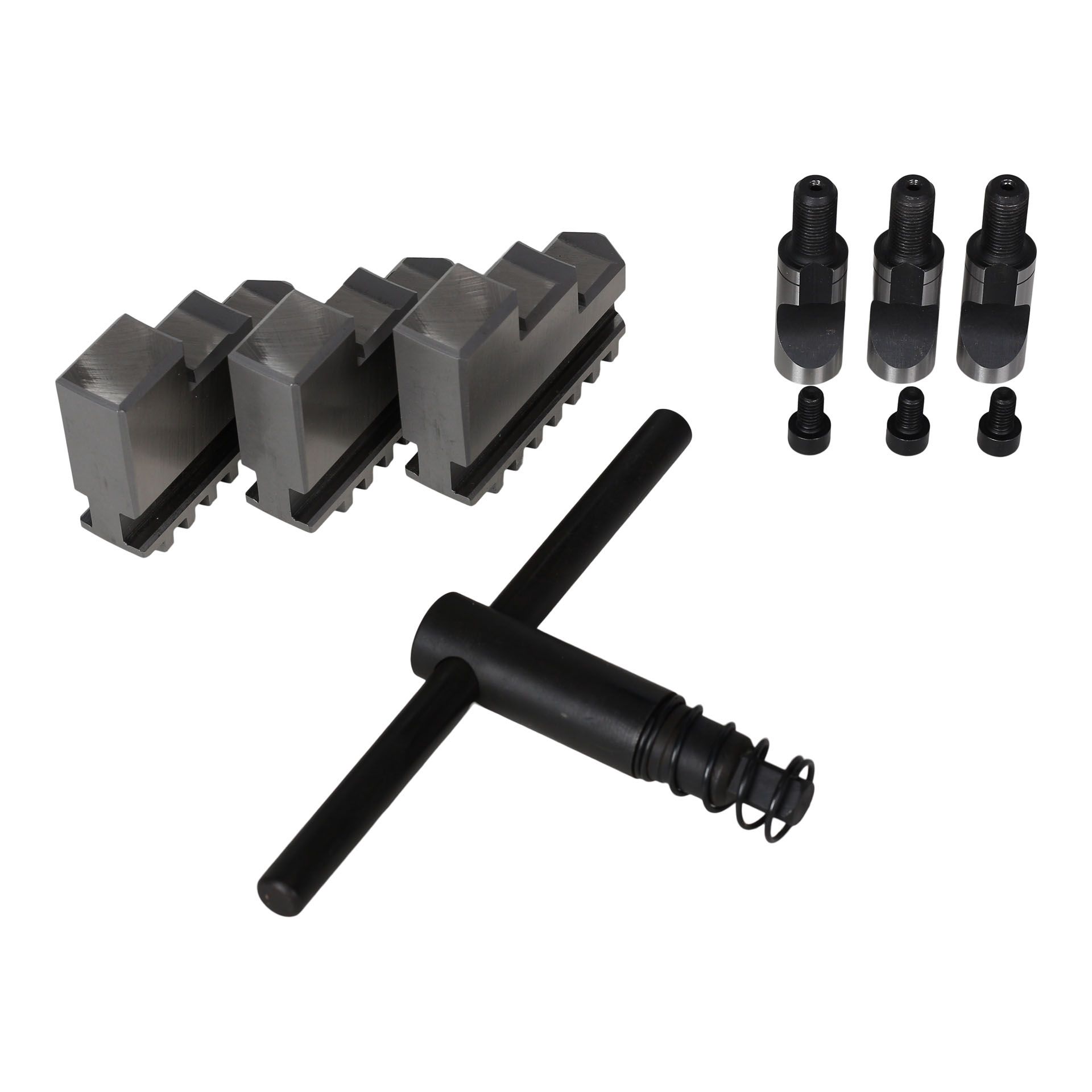

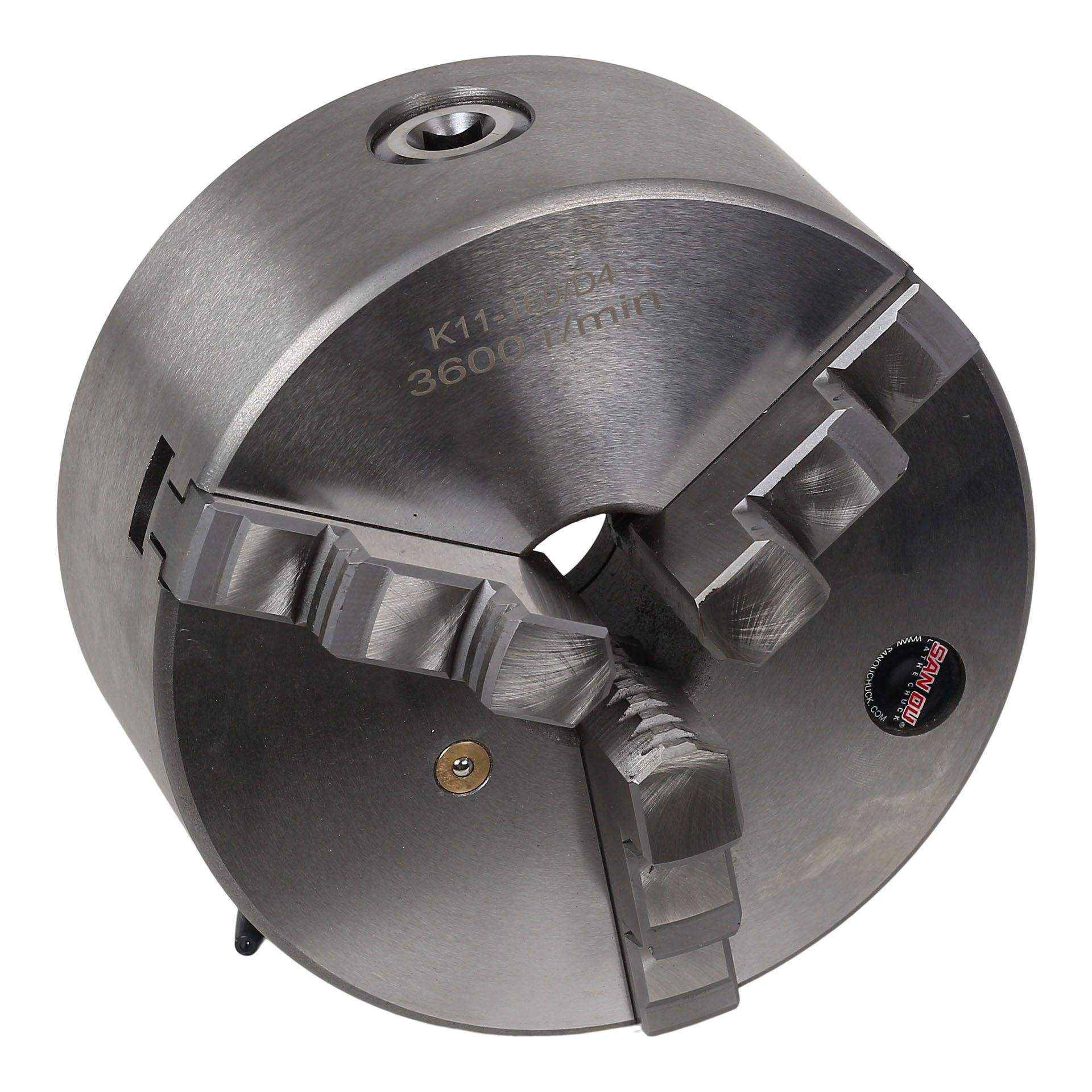

Standard 3-jaw chuck with high-quality cast iron body With Camlock direct mount according to DIN 55029 Inclusive each 1 set hard inside and hard outside solid jaws Application: Suitable for conventional turning lathes Standard accessories: 1 set hard inside solid jaws DIJ-DK11 1 set hard outside solid jaws DOJ-DK11
Now only
R 3,495.00(incl. VAT)

Specifications
Chuck Diameter (D)
160 MM
Registration Recess Diameter (D1)
63 MM
Bolt Circle Diameter (D2)
82 MM
Center Hold (D3)
45 MM
Registration Recess Depth (h)
0
Body Thickness (H1)
74 MM
Number of Bolts
3 Bolts
RPM
2 500 RPM
Handle Length
150 MM
