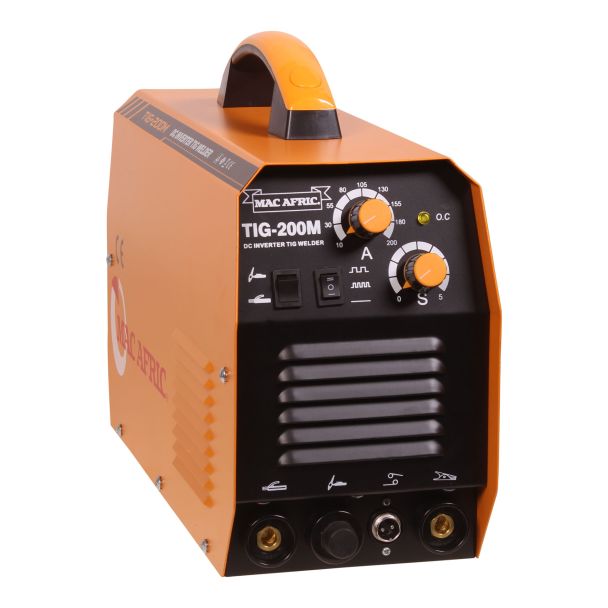

MAC AFRIC 200 A MMA/TIG Inverter Welder

Leverage MOSFET Inverter Technology:

Energy Efficiency: Benefit from the energy-saving aspects of MOSFET technology. It ensures higher efficiency with less power wastage, translating to lower operational costs.
Reliability: Expect a stable and reliable welding current, essential for high-precision work, especially when dealing with sensitive components or thin materials.

Utilize Advanced Features for Superior Weld Quality:
Arc Stability: Take advantage of the stable arc with low welding noise and minimal spatter. This not only makes for a cleaner working environment but also reduces post-weld cleanup time.
Smooth Weld Appearance: With advanced control over the welding process, expect a good and smooth welding appearance, which is crucial in applications where aesthetics are important, such as in custom fabrication or visible structural work.

Ensure Consistent Performance Under Varying Conditions:
Power Voltage Fluctuation Compensation: The automatic compensation feature is vital in scenarios where power supply is unstable. This ensures that the welder operates consistently, providing uniform results irrespective of power fluctuations.

Specifications:

Input Voltage: 1 phase, 230V, 50Hz

Welding Modes:

TIG (Tungsten Inert Gas)
Input Current: 20 A
Input Power: 4.6 KVA
No-load Voltage: 56 V
Welding Current Range: 10~200 A
Welding Voltage: 10.4~18 V
Rated Duty Cycle: 60%
Arc Start Way: H/F (High Frequency)

MMA (Manual Metal Arc)
Input Current: 30 A
Input Power: 6.8 KVA
No-load Voltage: 56 V
Welding Current Range: 10~160 A
Welding Voltage: 20.4~26.4 V
Rated Duty Cycle: 60%
Electrode Diameter: 1.6~4.0 mm

General Specifications:
Efficiency: 85%
Power Factor: 0.7
Protection Class: IP21S
Insulation Class: F
