Engineering EquipmentMAC AFRIC 200 MM 3-Jaw Self Centering Chuck K11200/D6
MAC AFRIC 200 MM 3-Jaw Self Centering Chuck K11200/D6MAC AFRIC 200 MM 3-Jaw Self Centering Chuck K11200/D6

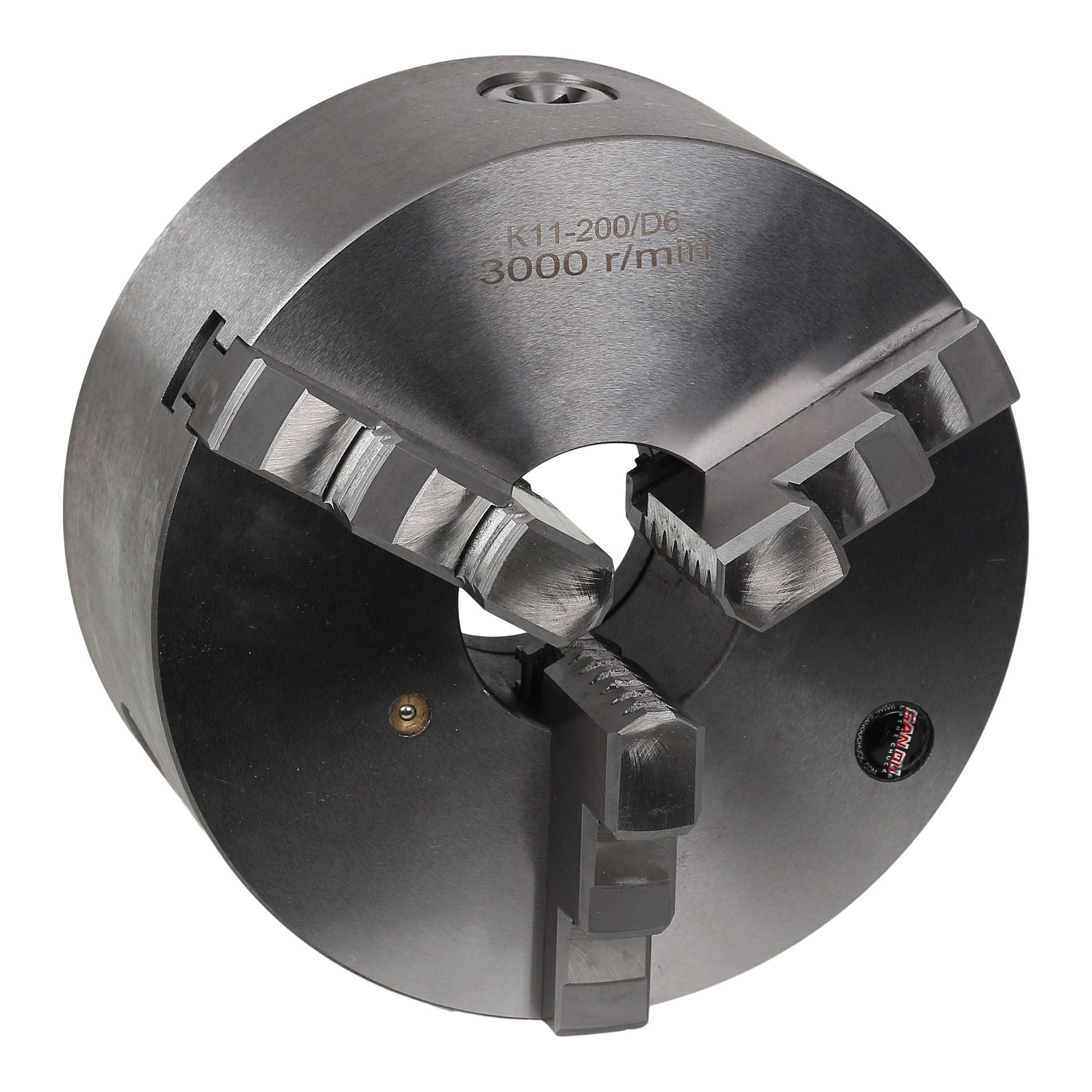

MAC AFRIC 200 MM 3-Jaw Self Centering Chuck K11200/D6

SKU: EACHUC104

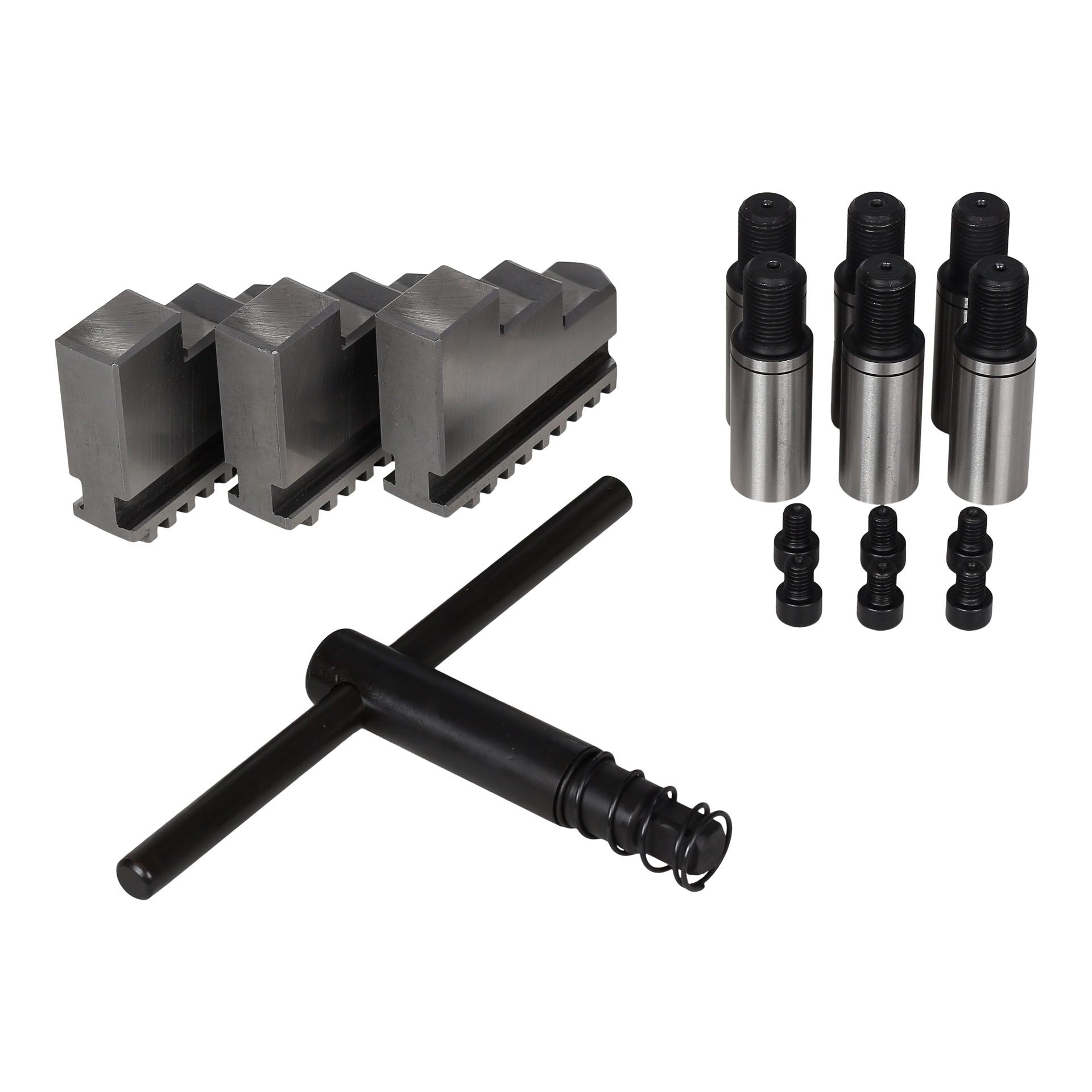

Execution: Standard 3-jaw chuck with high-quality cast iron body With Camlock direct mount according to DIN 55029 Inclusive each 1 set hard inside and hard outside solid jaws Suitable for conventional turning lathes Standard accessories: 1 set hard inside solid jaws DIJ-DK11 1 set hard outside solid jaws DOJ-DK11
Now only
R 4,995.00(incl. VAT)

Specifications
Chuck Diameter (D)
200 MM
Registration Recess Diameter (D1)
106 MM
Bolt Circle Diameter (D2)
133 MM
Center Hold (D3)
60 MM
Registration Recess Depth (h)
5 MM
Body Thickness (H1)
90 MM
Number of Bolts
3 Bolts
Size of Bolts
M6
RPM
3 000 RPM
Handle Length
150 MM
Additional Information
Delivery & Warranty
FAQs
Recommended Products

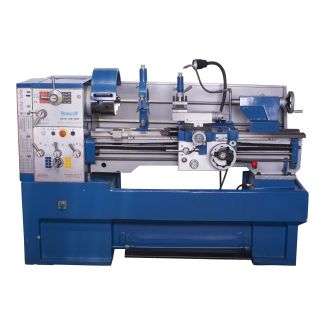

MAC AFRIC Industrial Tool Room Lathe D420MAC AFRIC Industrial Tool Room Lathe D420
