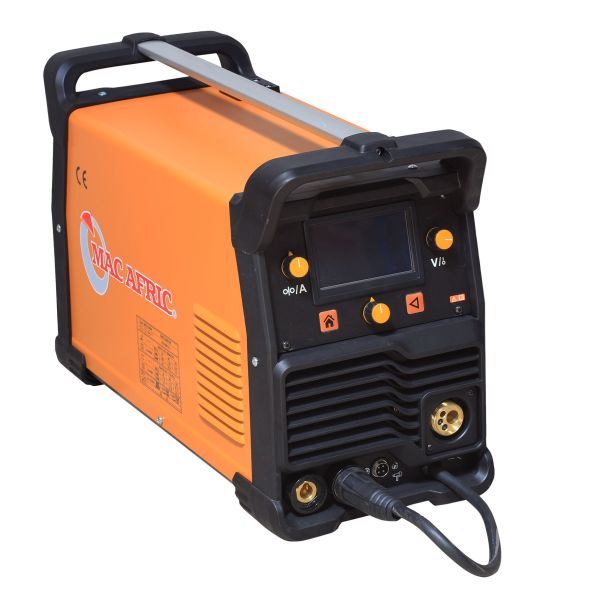

MAC AFRIC 200A Multi-Process MIG/MAG Inverter Welder
In stock
SKU
EWELDM206
R 8,995.00

MAC AFRIC 200A Multi-Process MIG/MAG Inverter Welder

In stock
SKU
EWELDM206
R 8,995.00
Check Store Availability
MAC AFRIC 200A Multi-Process MIG/MAG Inverter Welder
In stock
SKU
EWELDM206

Find a Store

The MAC AFRIC 200A Multi-Process MIG/MAG Inverter Welder is an advanced and versatile welding solution, designed to tackle a range of welding processes with ease. Featuring an intuitive MCU controller and a TFT-LCD screen, it simplifies settings for enhanced precision. Capable of handling MIG, flux-cored arc, LIFT TIG, and MMA welding, this welder offers flexible functionality for various tasks, including optional aluminum welding with a spool gun. Equipped with PFC (Power Factor Correction), it maintains excellent performance even during voltage fluctuations.
More Information
Product Quote No
Disable Add To Cart No
Disable Add To Quote No
Is In Storelocator Stock Yes
Product FAQs

How do I order a Product?

You are welcome to visit any of our stores nationwide. Alternatively you can order the product here on our website. Simply click add to cart to begin. We offer both delivery option or collection in store

Is the payments secure?

Yes. You payment information is never present on our website or the payment providers software. Its all encrypted with the highest level of security. You are welcome to contact our payment providers websites for more information

How can I contact you?

You can contact any store directly from the store locator page. Or alternatively use the button on the right. All your contact information is on our contact page for easy reference

How long does delivery take?

Delivery orders are sent from our warehouse DC in Aeroton every business day. Time for final delivery is between 3-5 business days for most orders. Sometimes sooner for main centres. Deliveries are completed by our trusted couriers & logistics partners

How can I make payment?

In store we offer Visa & Mastercard or EFT payments (please note EFT payments take 48 Hours to clear). Alternatively online we offer Visa, Mastercard & Secure Instant EFT

Specifications Description
  • Multi-Process Capability: Perform MIG, flux-cored arc, MMA, and LIFT TIG welding, covering a variety of materials and applications.
  • LCD Display & MCU Controller: The user-friendly TFT-LCD screen combined with the MCU controller ensures precise adjustments and easy operation.

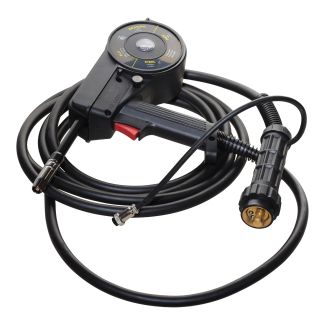

  • Spool Gun Compatibility: Optional spool gun available for efficient aluminum welding.
  • Power Factor Correction (PFC): Enhances performance and stability, even with fluctuating voltage, for reliable operation.
  • Wide Output Range: Suitable for different types of welding projects with variable output currents.

Technical Specifications:

  • Rated Output Voltage:
    • 15.5 - 24 V (MIG)
    • 20.8 - 27 V (MMA)
    • 10.8 - 17 V (TIG)
  • Duty Cycle: 25%
  • Suitable Wire Diameter: 1 - 4 mm
  • Output Current:
    • 30 - 200 A (MIG)
    • 20 - 175 A (MMA)
    • 20 - 175 A (TIG)
  • No-Load Voltage: 56 V
  • Voltage: 230 V
  • Rated Input Current:
    • 39 A (MIG)
    • 36 A (MMA)
    • 21 A (TIG)
Package Length (cm) 69.00
Package Height (cm) 49.00
The MAC AFRIC 200A Multi-Process MIG/MAG Inverter Welder is an advanced and versatile welding solution, designed to tackle a range of welding processes with ease. Featuring an intuitive MCU controller and a TFT-LCD screen, it simplifies settings for enhanced precision. Capable of handling MIG, flux-cored arc, LIFT TIG, and MMA welding, this welder offers flexible functionality for various tasks, including optional aluminum welding with a spool gun. Equipped with PFC (Power Factor Correction), it maintains excellent performance even during voltage fluctuations.
