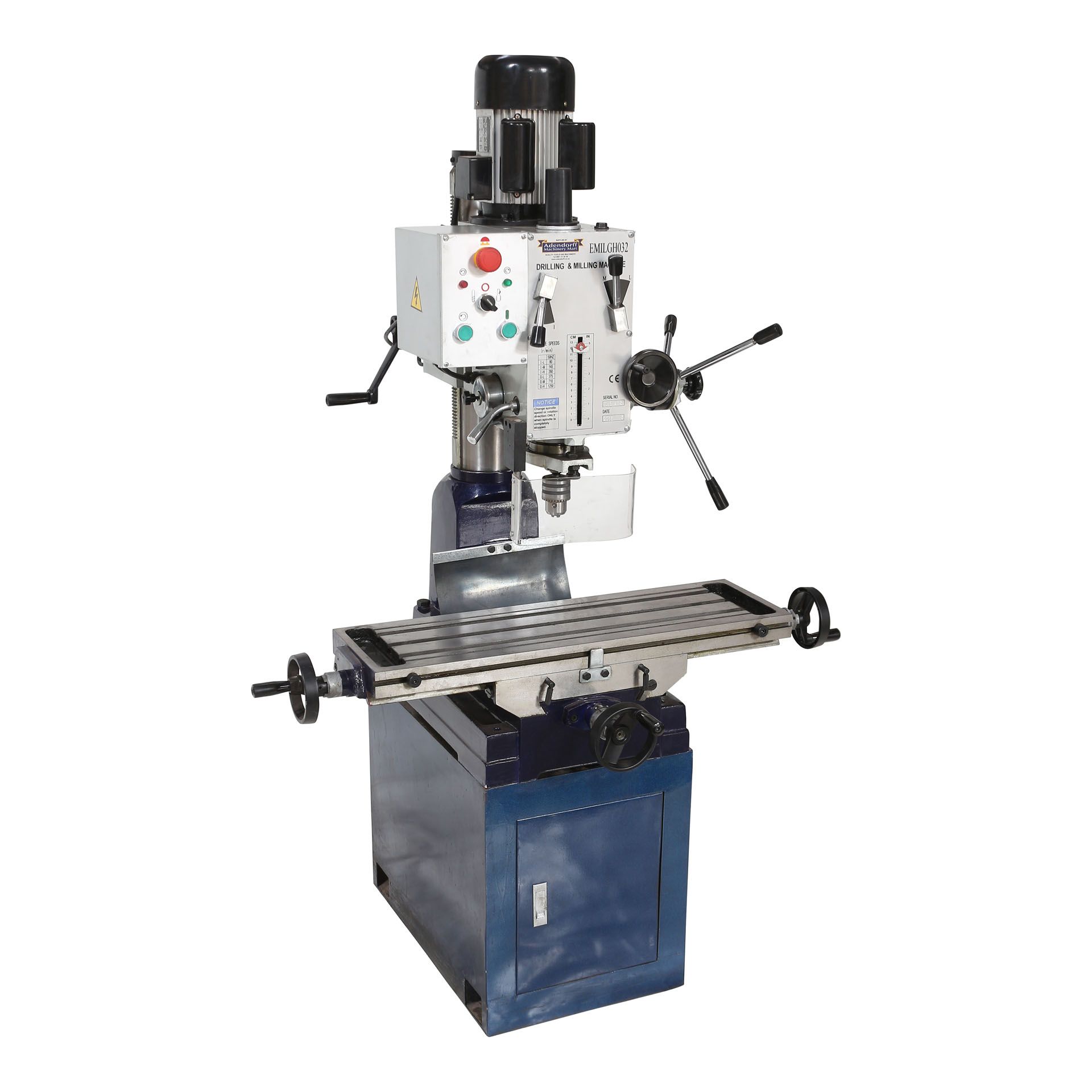

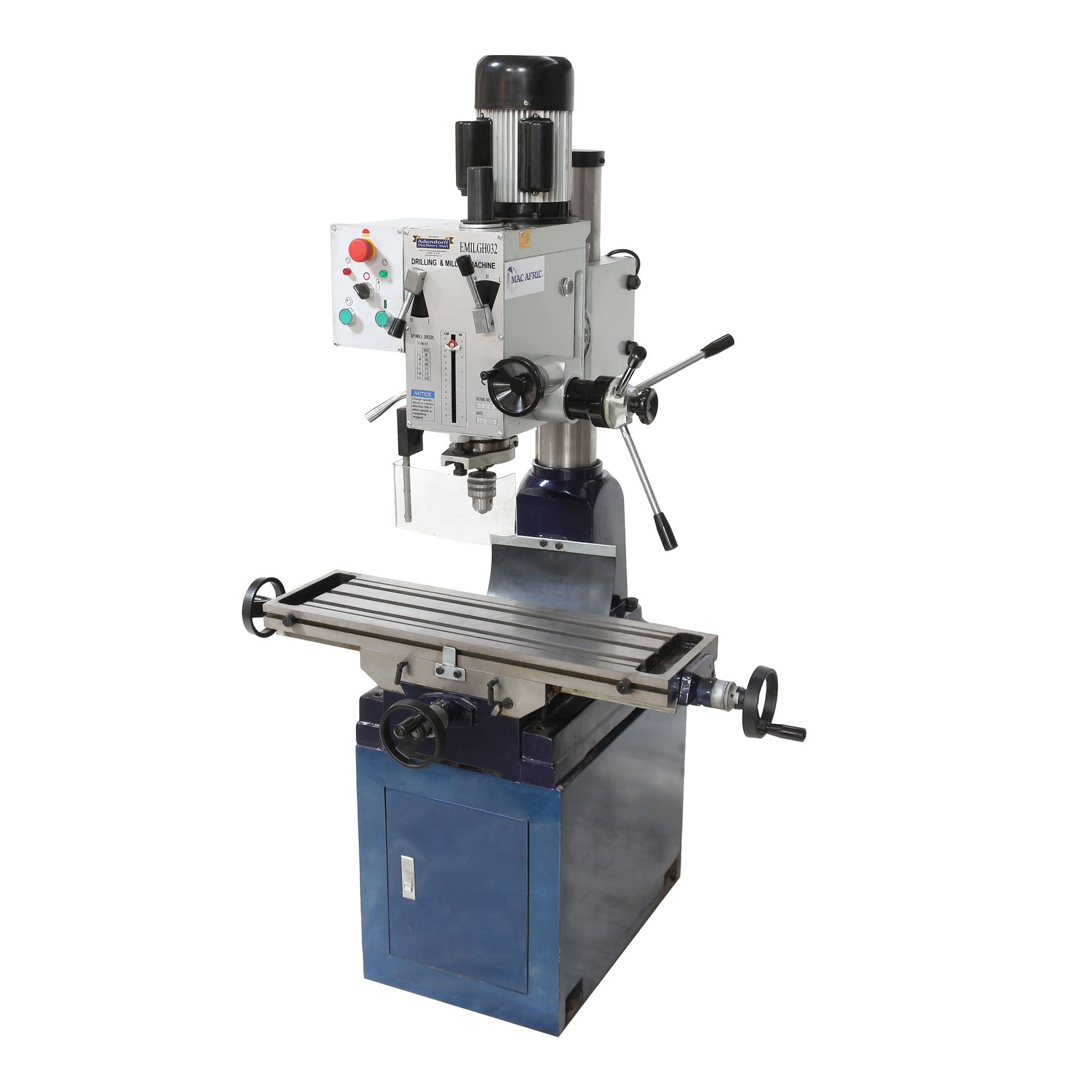

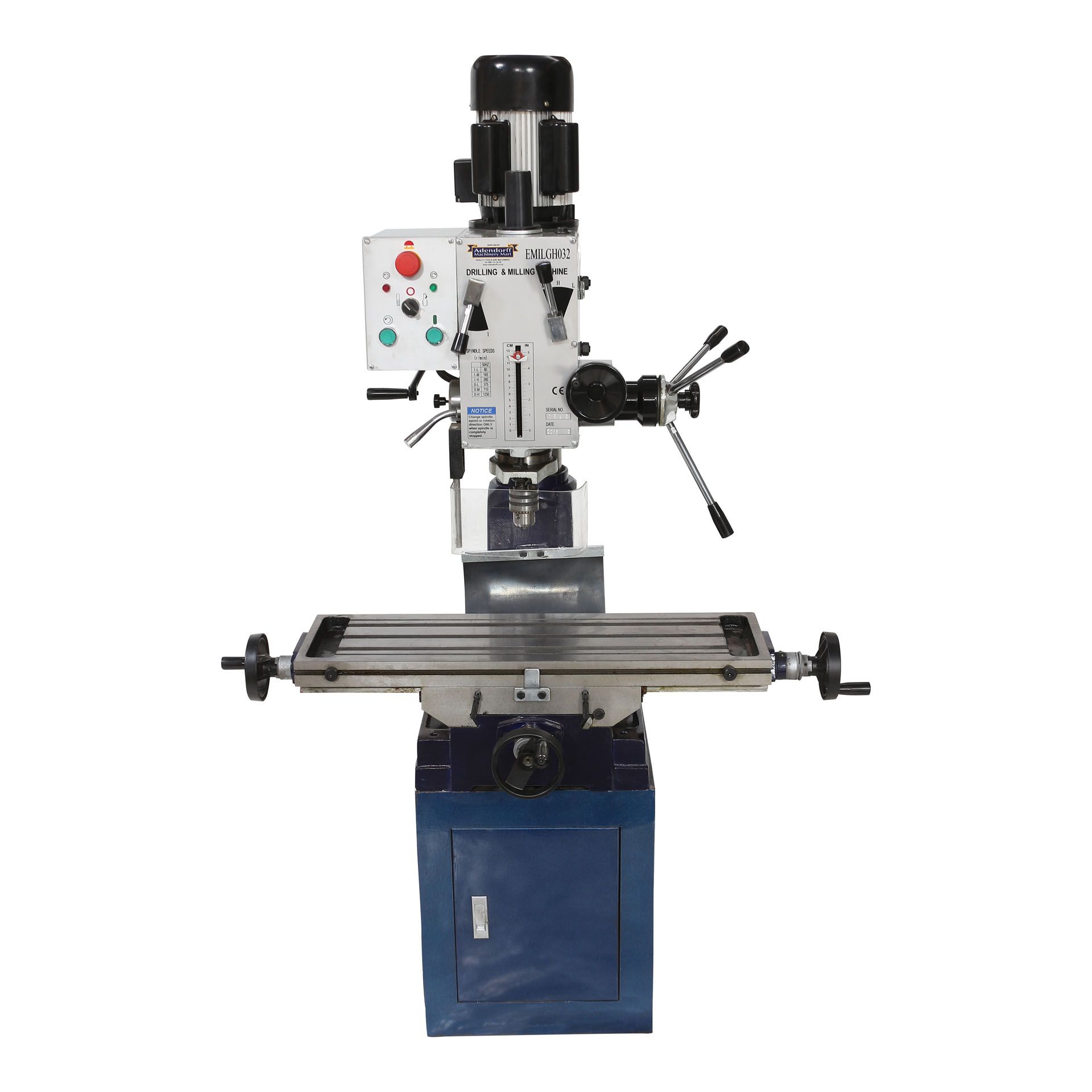

MAC AFRIC 32 MM Geared Head Milling Machine (Round Column)
Ideal for small engineering workshops. Uses milling, drilling, surface cutting, and tapping. Features bi-directional tapping function. Heat-treated head table. Worm gear and hand-feed function. Precision ground gears swivel head.*EXCLUDING STAND (OPTIONAL EXTRA). OPTIONAL EXTRA AUTO FEED (X – Y)
| Package Length (cm) | 77.00 |
|---|---|
| Package Width (cm) | 88.00 |
| Package Height (cm) | 115.00 |
| Package Weight (kg) | 320.000000 |
Drill/Mill Machine Specifications
| Feature | Specification |
|---|---|
| Power Output | 0.75 KW (1 HP) |
| Max. Drilling Capacity | 32 mm |
| Max. Face Mill Capacity | 80 mm |
| Max. End Mill Capacity | 28 mm |
| Max. Tapping Capacity | M 12 |
| Max. Spindle Stroke | 130 mm |
| Max. Distance from Spindle Axis to Column | 260 mm |
| At Perpendicular Direction | ± 90° |
| Max. Distance from Spindle Nose to Table | 450 mm |
| Spindle Taper | MT 3 or R8 |
| Working Area of Table | 700 x 240 mm |
| Forward and Backward Travel of Table | 175 mm |
| Left and Right Travel of Table | 400 mm |
| Spindle Speeds (4P) | 50 Hz: 80, 145, 260, 375, 710, 1250 RPM 60 Hz: 95, 175, 310, 450, 850, 1500 RPM |
| Motor Type | ZAY7032FG |
| Height without Stand | 1 020 mm |
| Standard Accessories | Double End Wrench, Allen Wrench (3, 4, 5, 6 mm), 6" Flat Screwdriver, Drill Stock, Wedge, Drawbar, Drawbar Washer |
| Optional Accessories | 16 mm Drill Chuck, 76 mm Face Milling Cutter, 90/125 mm Parallel Vice, Mill Chuck, Machine Stand, End Milling Cutter (2 - 20 mm), Twist Drill (1 - 31.5 mm) |
