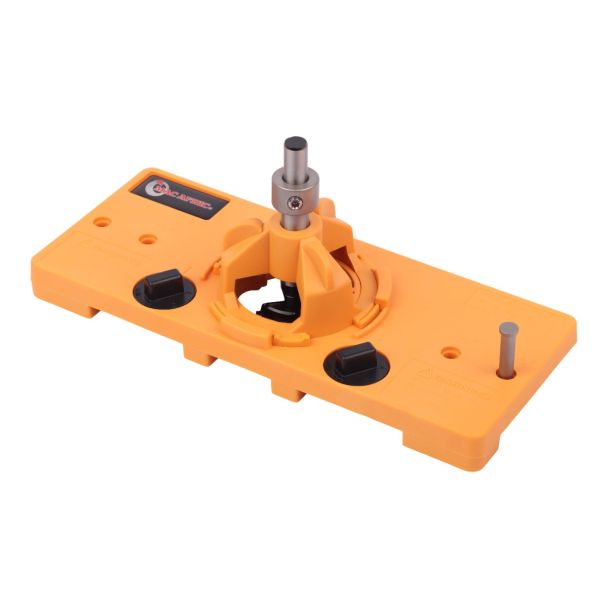

MAC AFRIC 35mm Concealed Cup Style Hinge Jig
In stock
SKU
WWJIGS002
R 475.00

MAC AFRIC 35mm Concealed Cup Style Hinge Jig

In stock
SKU
WWJIGS002
Be the first to review this product
R 475.00
Check Store Availability
MAC AFRIC 35mm Concealed Cup Style Hinge Jig
In stock
SKU
WWJIGS002

Find a Store

Add to Wish List Add to Compare
Hinge Hole Cutter Punch Locator for Cabinet Door Installation: The MAC AFRIC 35mm Concealed Cup Style Hinge Jig is the perfect tool for cabinet door installations, designed for precision drilling of hinge cup holes for concealed hinges. This jig allows both professional woodworkers and DIY enthusiasts to easily install 35mm hinges. Its durable construction, made from high-quality metal and environmental engineering plastic, ensures long-lasting performance and stability. With adjustable cams, depth stops, and limit settings, this hinge jig offers a highly customizable experience, making it ideal for precise and efficient installations.
MAC AFRIC 35mm Concealed Cup Style Hinge Jig
MAC AFRIC 35mm Concealed Cup Style Hinge Jig MAC AFRIC 35mm Concealed Cup Style Hinge Jig MAC AFRIC 35mm Concealed Cup Style Hinge Jig MAC AFRIC 35mm Concealed Cup Style Hinge Jig
More Information
Specifications Description
  • Precision Drilling: Designed to drill 35mm hinge cup holes. Also drills mounting screw holes at standard distances.
  • Adjustable Limit Settings: Black limit blocks allow adjustable offsets (3mm, 4mm, 5mm, 6mm) for precise alignment with the board edge.
  • Durable & Reliable: Made from high-quality environmental protection metal and engineering plastic for long-term durability.
  • Easy to Use: User-friendly design with clear step-by-step instructions, making it ideal for DIY projects.
  • Complete Package: Includes all necessary components such as the positioning plate, hole opener, drill bit, hex wrench, and more, so you’re ready to go right out of the box.

Specifications:

  • Material: High-quality plastic and metal
  • Main Component Size: 225 x 95 x 25 mm (L x W x H)
  • Bracket Height: 36 mm
  • Bracket Diameter: 58 mm
  • Bracket Hole Diameter: 13 mm
  • Positioning Rod Length: 40 mm
  • Drill Length: 49 mm
  • Limit Ring Diameter: 11 mm
  • Suitable for: 35mm concealed hinges
Package Weight (kg) 0.500000
Package Length (cm) 31
Package Width (cm) 23
Package Height (cm) 7
Details
Hinge Hole Cutter Punch Locator for Cabinet Door Installation: The MAC AFRIC 35mm Concealed Cup Style Hinge Jig is the perfect tool for cabinet door installations, designed for precision drilling of hinge cup holes for concealed hinges. This jig allows both professional woodworkers and DIY enthusiasts to easily install 35mm hinges. Its durable construction, made from high-quality metal and environmental engineering plastic, ensures long-lasting performance and stability. With adjustable cams, depth stops, and limit settings, this hinge jig offers a highly customizable experience, making it ideal for precise and efficient installations.
