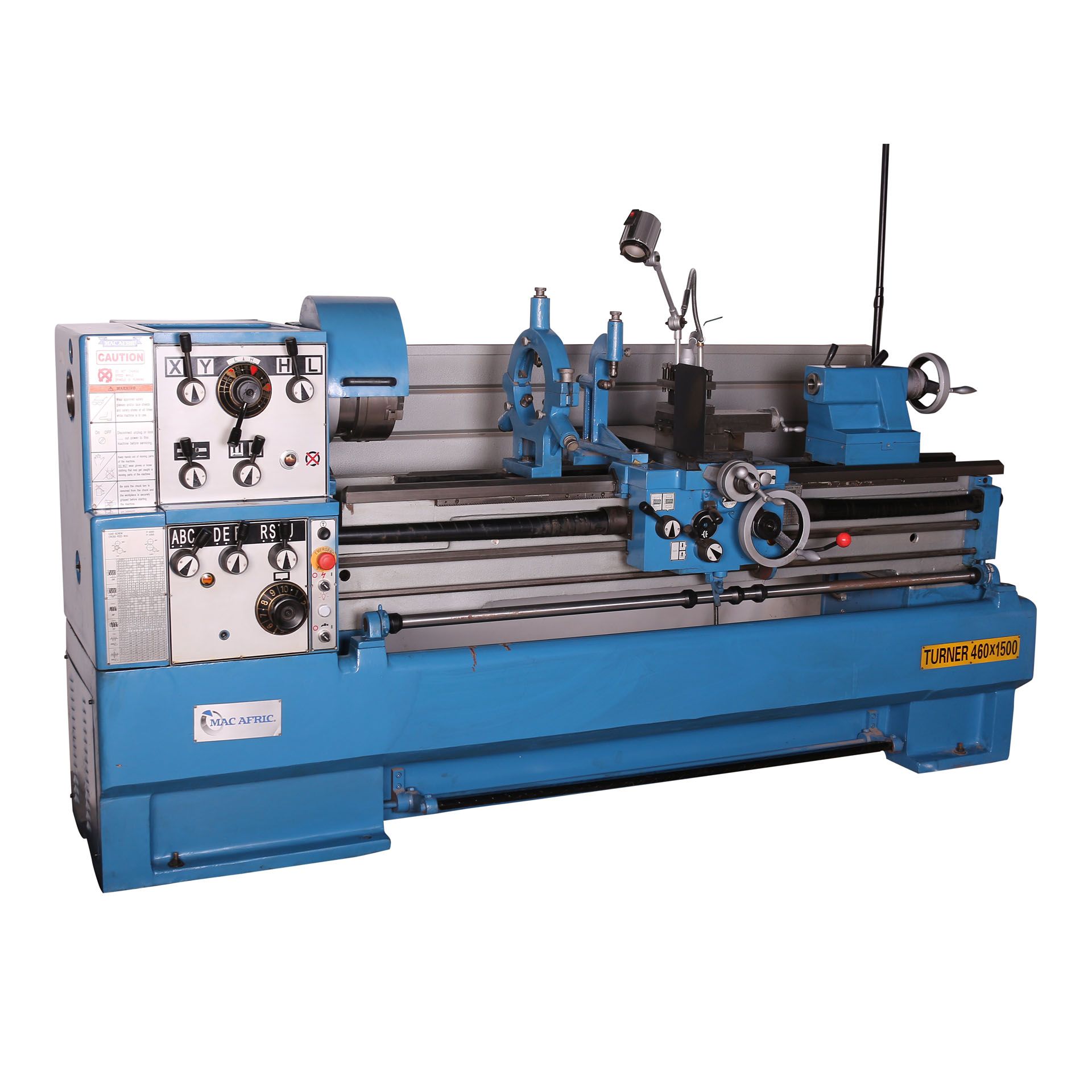

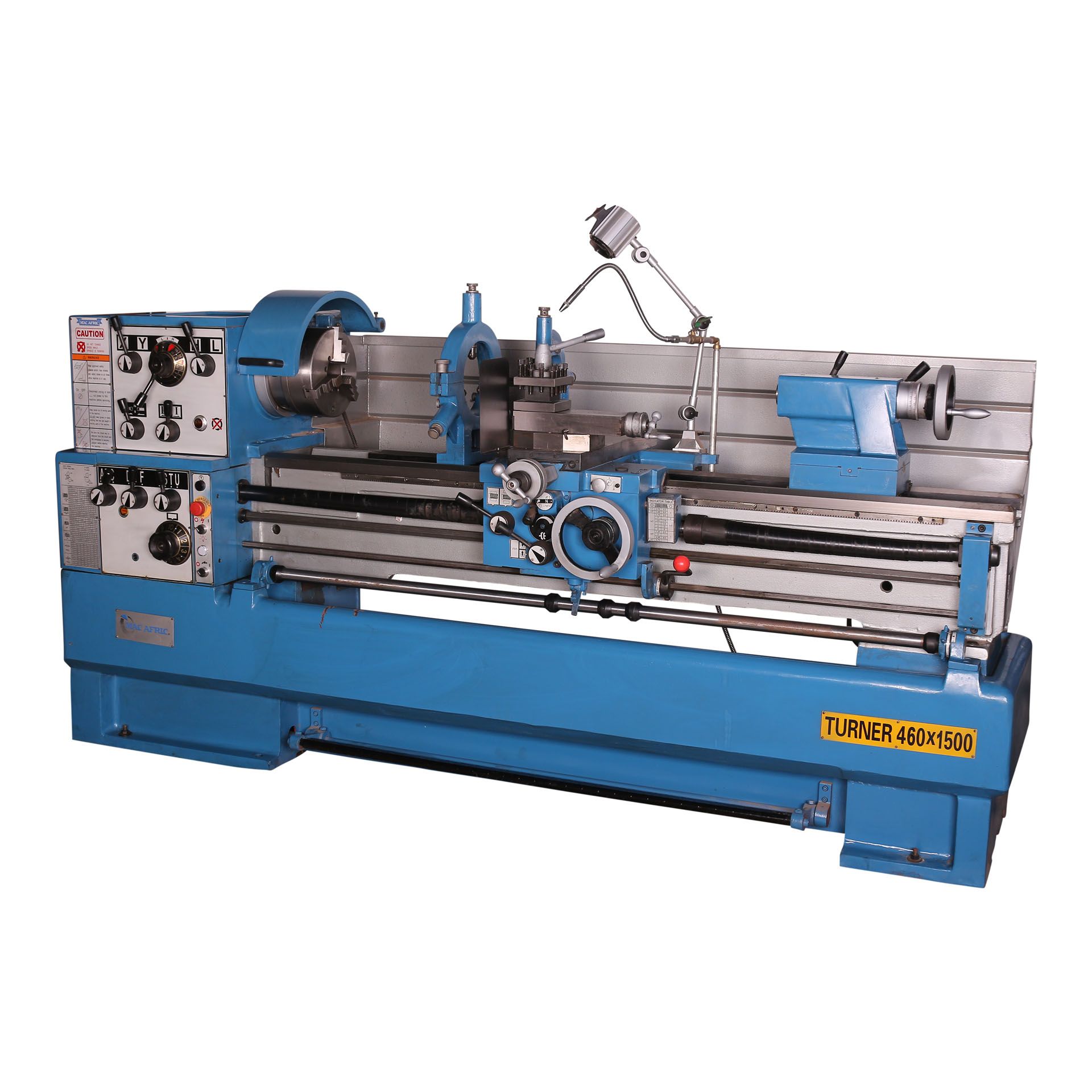

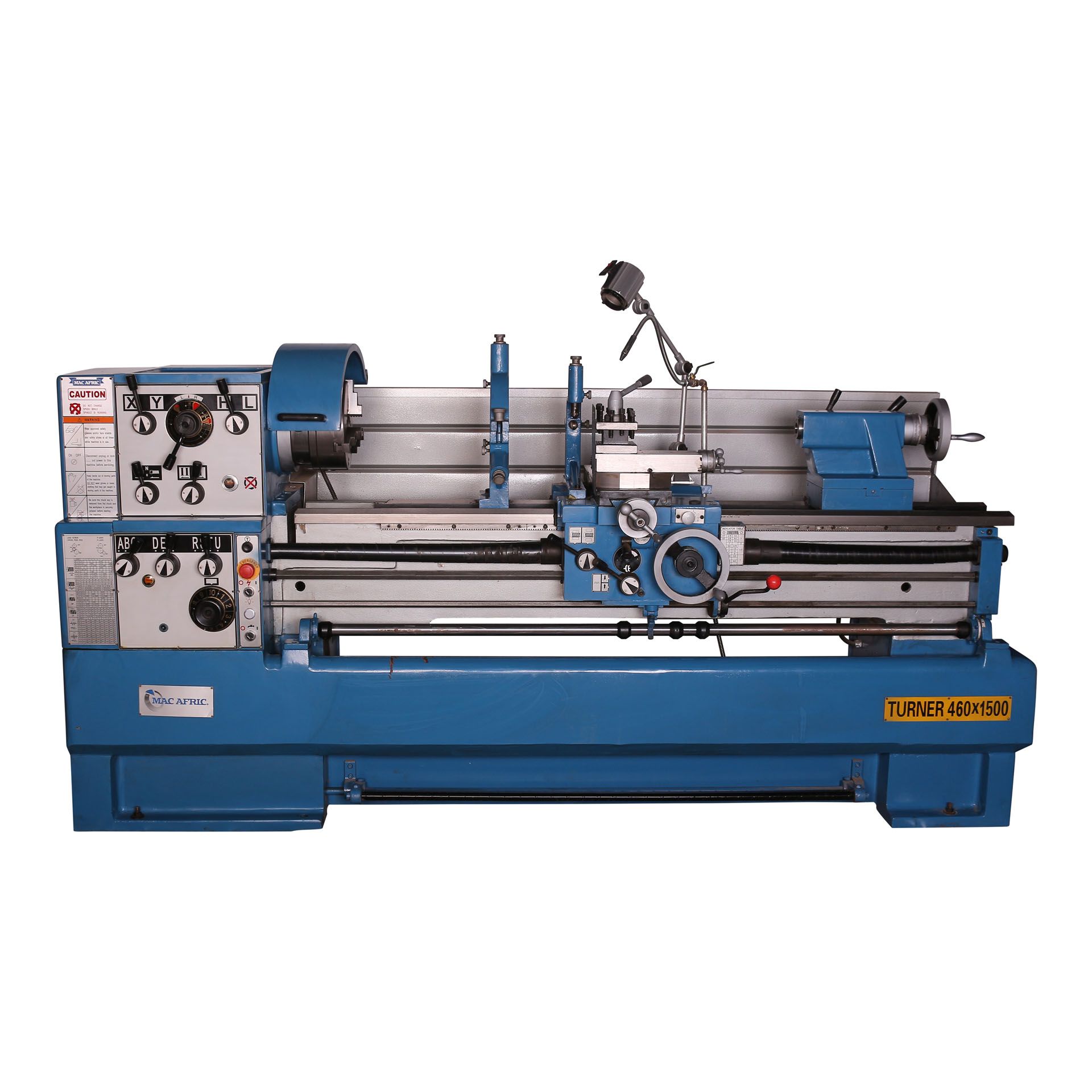

MAC AFRIC 460 x 1500 MM Lathe

SKU: ELATHE150
ACCESSORIES INCL PEDESTAL AND SPLASH COVER Precision ground and supersonic frequency hardened bed ways. The spindle is supported with a precision roller bearing. Head-stock gears are made of high-quality steel, ground and hardened. The removable gap is provided for larger diameter work. The easy operating gearbox has various feeds and thread cutting functions.
Now only
R 239,950.00(incl. VAT)

Online Only
Specifications
Power Output
4 KW (5 HP)
Voltage
230/380 V
Frequency
50 - 60 HZ
Max. Swing Over Bed
320 MM (13" IN)
Max. Swing Over Cross Slide
178 MM (7" IN)
Max. Swing Over Gap
450 MM (18" IN)
Distance Between Centres
1 000 MM (39" IN)
Width Of Bed
181 MM
Spindle Bore
38 MM (1 1/2" IN)
Taper Of Spindle Bore
MT 5
Range of Spindle Speeds
75 - 1 400 RPM (9 Steps) 65 - 1 810 RPM (18 Steps)
Diameter Of Tailstock Quill
32 MM (1 1/4" IN)
Max. Travel of Tailstock Quill
100 MM (4" IN)
Taper Of Tail Stock
MT 3
Metric Threads Can be Cut
32 Kinds: 0.4 - 7 MM
Imperial Threads Can be Cut
32 Kinds: 4 - 60 TPI
Range of Longitudinal Feeds
0.0527 - 1.2912 MM/REV (0.0021 - 0.0508 INCH/REV)
Range Of Cross Feeds
0.011 - 0.276 MM/REV (0.0006 - 0.0136 INCH/REV)
Gross Weight
550 KG
Max. Rotatory Angle of Tool Post
90°
Tool Slide Travel
76 MM (3" IN)
