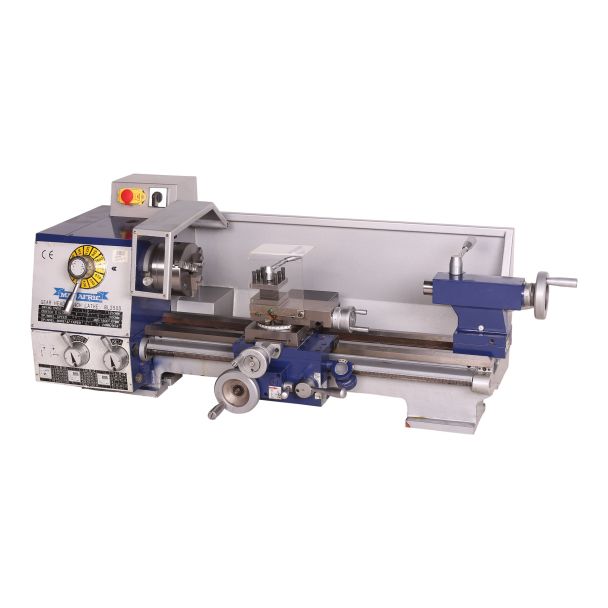

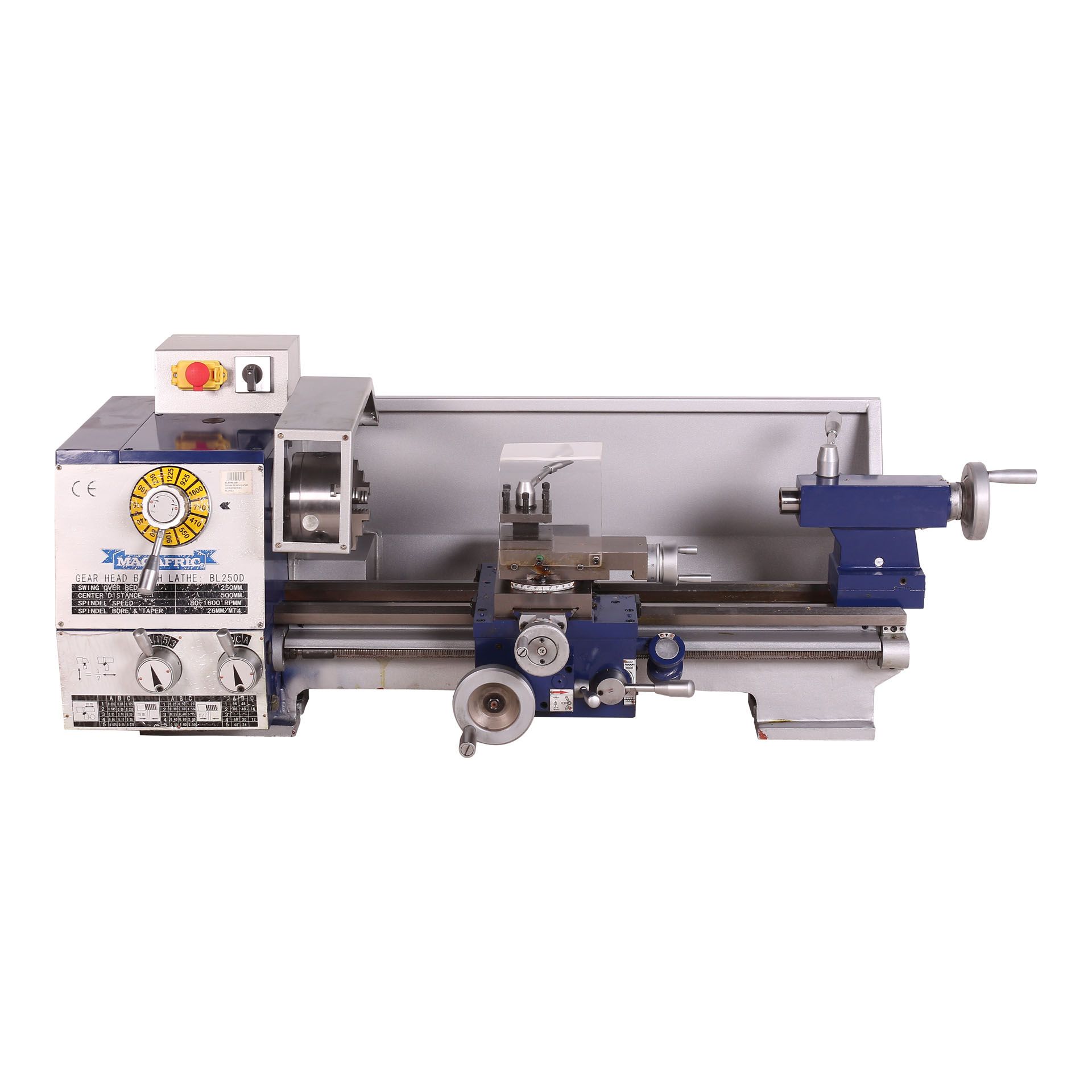

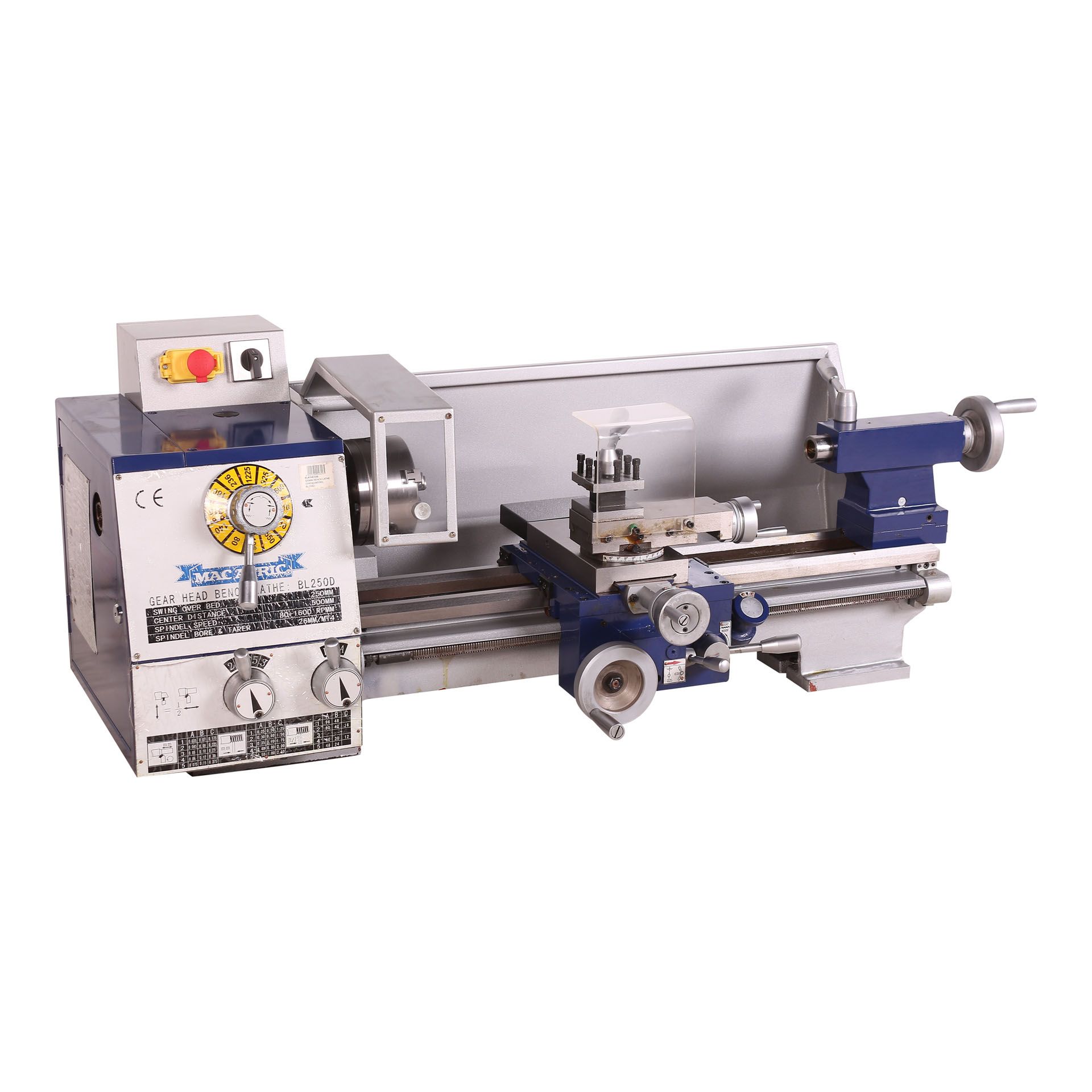

MAC AFRIC 500 MM Geared Head Bench Lathe

SKU: ELATHE250
This lathe adopts full gear transmission with great stability and high tooling accuracy. Superb precision incorporated with longitudinal / cross auto-feed. The lathe is user friendly with smooth operation.
Now only
R 28,995.00(incl. VAT)

Specifications
Power Output
750 W
Voltage
230 V
Frequency
50 HZ
Max. Swing Over Bed
250 MM
Max. Swing Over Cross Slide
150 MM
Max. Swing Over Gap
NA
Distance Between Centres
500 MM
Width Of Bed
115 MM
Spindle Bore
NA
Taper Of Spindle Bore
M.T.#3
Range of Spindle Speeds
80 – 1600 RPM (12 Steps)
Max. Travel of Tailstock Quill
60 MM
Taper Of Tail Stock
MT#3
Metric Threads Can be Cut
0.3 - 7 MM
Imperial Threads Can be Cut
4 - 60 TPI
Range of Longitudinal Feeds
0.0527 - 1.2912 MM/REV
Range Of Cross Feeds
0.011 - 0.276 MM/REV
Gross Weight
180 KGS
Tool Slide Travel
75 MM
