Engineering EquipmentLathe MachinesMAC AFRIC 500 MM Geared Head Metal Screw cutting Bench Lathe
MAC AFRIC 500 MM Geared Head Metal Screw cutting Bench LatheMAC AFRIC 500 MM Geared Head Metal Screw cutting Bench Lathe

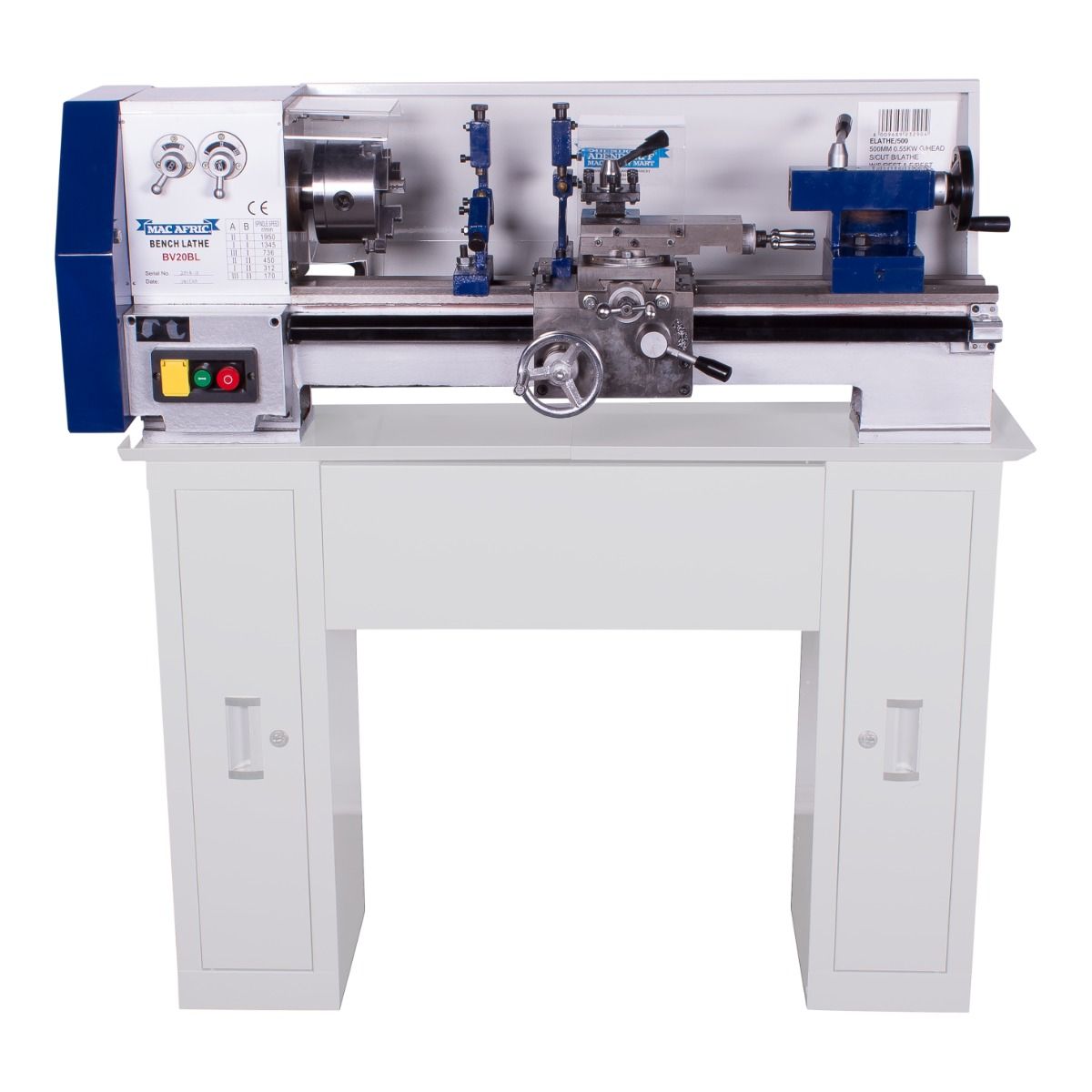

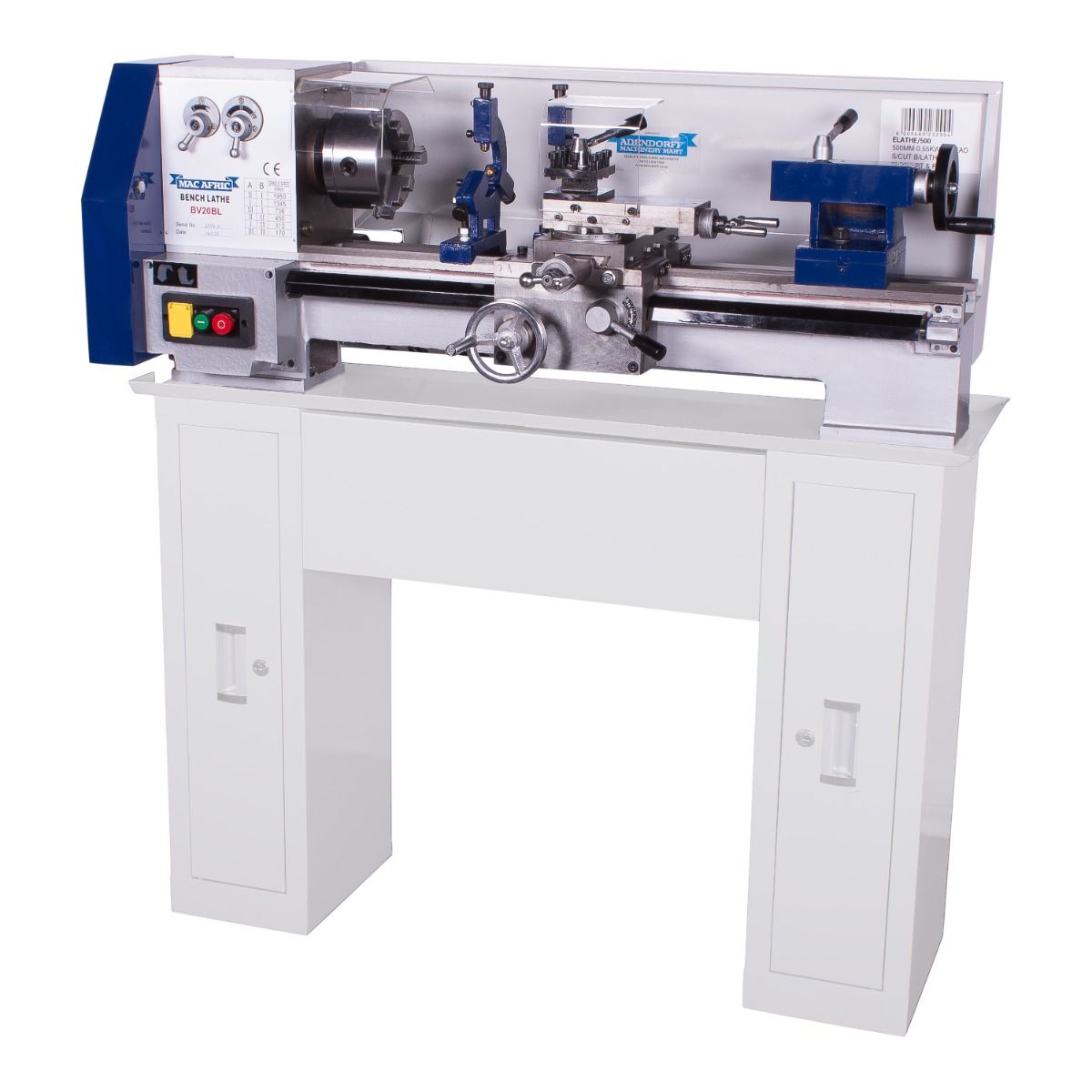

MAC AFRIC 500 MM Geared Head Metal Screw cutting Bench Lathe

SKU: ELATHE500
(Excluding Stand) Ideal for the automotive and engineering workshops Solid Construction Compact Design
Now only
R 21,950.00(incl. VAT)

Specifications
Power Output
370 W
Voltage
230 V
Frequency
50 HZ
Max. Swing Over Bed
210 MM
Distance Between Centres
550 MM
Spindle Bore
20 MM
Taper Of Spindle Bore
MT#3
Range of Spindle Speeds
170 - 1 710 RPM (6 Steps)
Max. Travel of Tailstock Quill
20 MM
Metric Threads Can be Cut
17 Steps
Imperial Threads Can be Cut
5 Steps
Range of Longitudinal Feeds
0.05 - 0.20 MM
Gross Weight
110 KG
Max. Rotatory Angle of Tool Post
+-45°
Tool Slide Travel
115 MM
Max Rotation Diameter of The Lathe Bed
200 MM
Max Roation Diameter of Turning of Tool Carrier
115 MM
Max Length of Turning
550 MM
Level of Mainshaft Gear Change
6 Levels
Level of Longitudinal Feed
4 Levels
Vertical Distance From the Mainshaft Central Line to The Tool Installation Bottom of Square Tool Carrier
15 MM
Movement of Bolt Scale of Lateral Tool Carrier
0.04 MM
Max. Stroke of Tool Carrier
70 MM
Lead Screw Pitch
0.4 - 3 MM
Tool Post Screw Pitch
0.04 MM
