Engineering EquipmentLathe MachinesMAC AFRIC 520 MM Belt Driven Screw cutting Bench Lathe (Excluding Stand)
MAC AFRIC 520 MM Belt Driven Screw cutting Bench Lathe (Excluding Stand)MAC AFRIC 520 MM Belt Driven Screw cutting Bench Lathe (Excluding Stand)

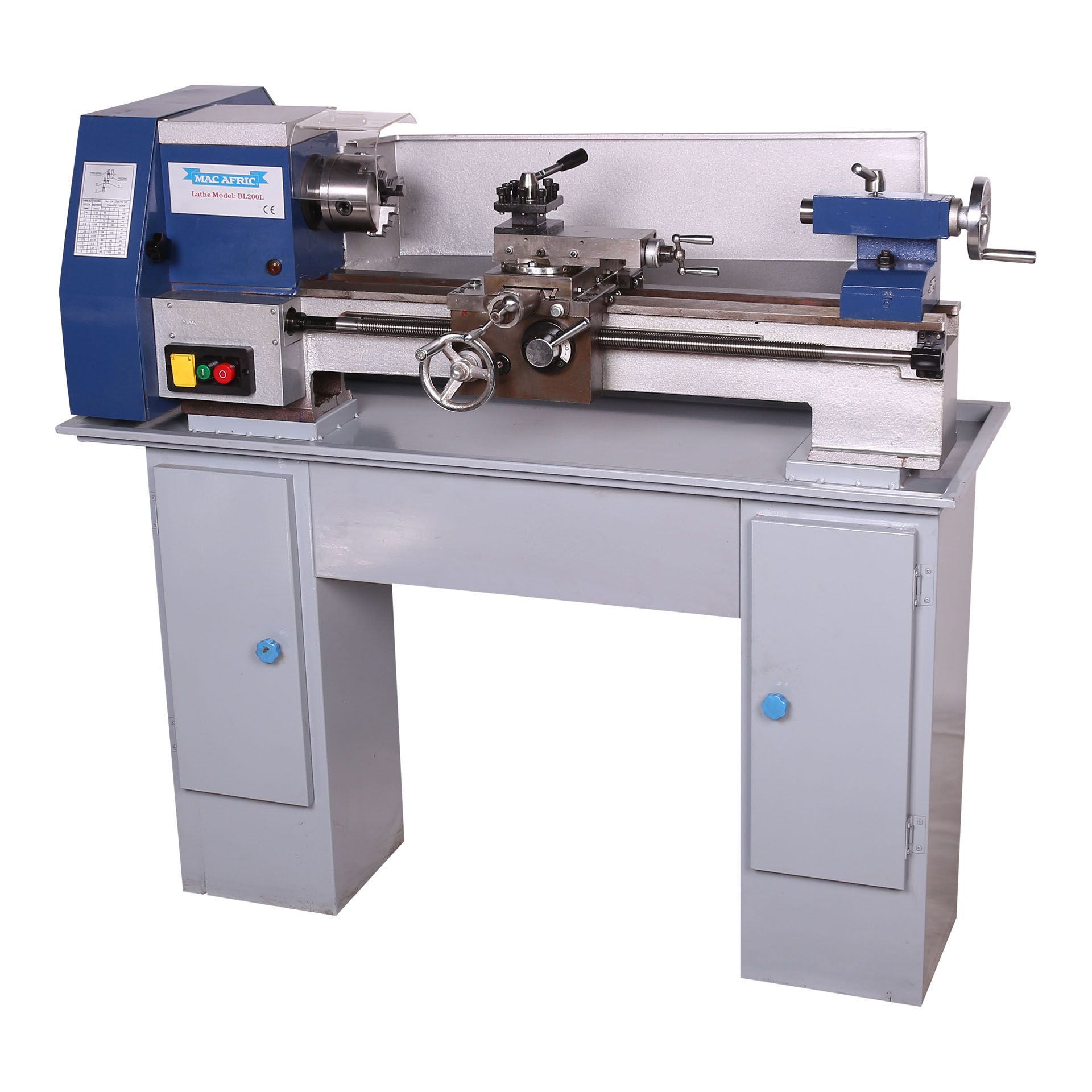

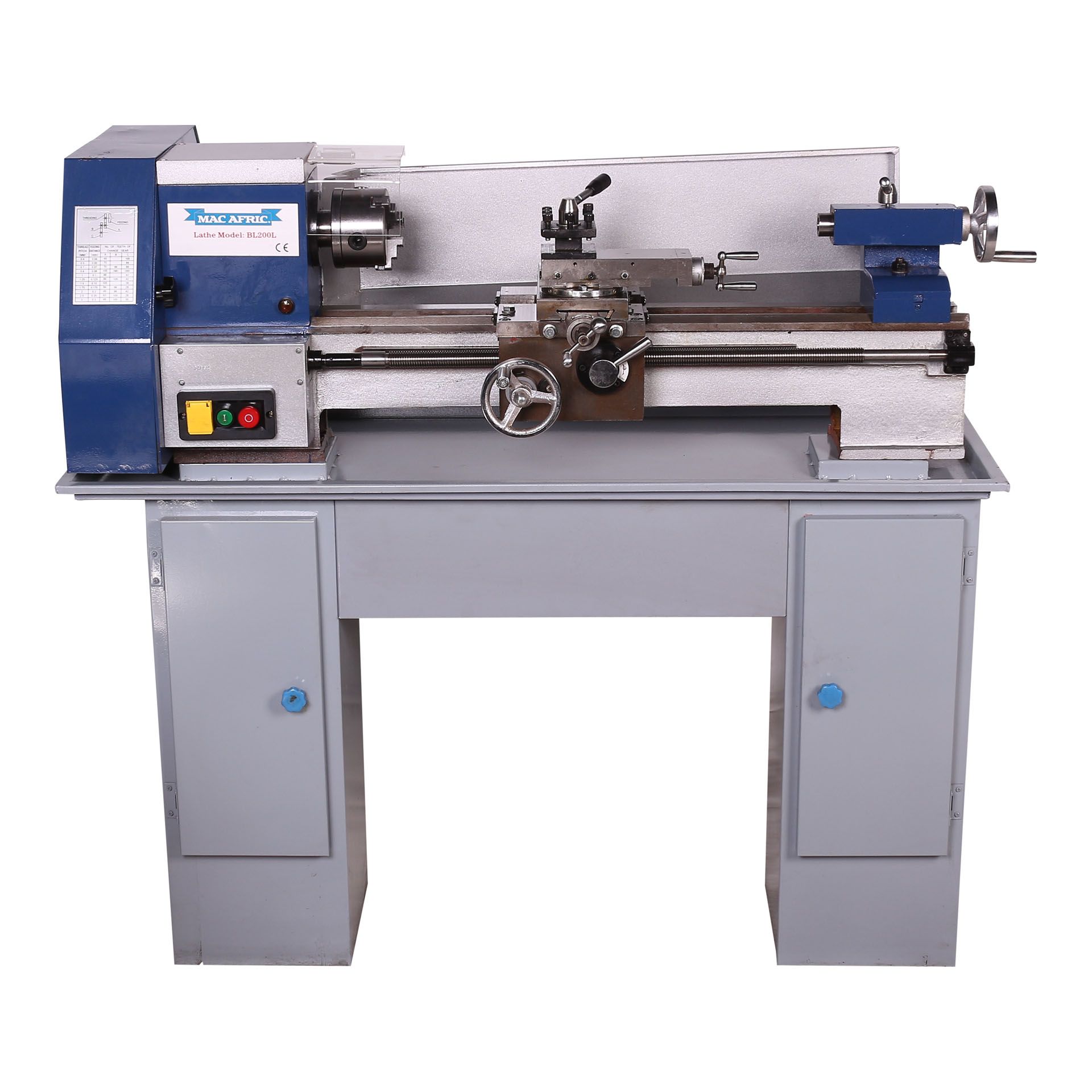

MAC AFRIC 520 MM Belt Driven Screw cutting Bench Lathe (Excluding Stand)

SKU: ELATHE520
Discover precision craftsmanship with the MAC AFRIC 520 MM Belt Driven Screw Cutting Bench Lathe (Excluding Stand)! Designed to elevate your machining capabilities, this lathe boasts a robust power output of 550W, providing efficiency for all your turning tasks. With a versatile range of features including a maximum swing over bed of 210mm, spindle speeds from 140 to 1800 RPM, and the ability to cut both metric and imperial threads, this lathe is the ideal companion for the meticulous craftsman seeking unparalleled performance and accuracy.
Now only
R 19,995.00(incl. VAT)

Specifications
Power Output
550 W
Voltage
230 V
Frequency
50 HZ
Max. Swing Over Bed
210 MM
Max. Swing Over Cross Slide
70 MM
Max. Swing Over Gap
122 MM
Distance Between Centres
520 MM
Width Of Bed
115 MM
Spindle Bore
20 MM
Taper Of Spindle Bore
M.T.#3
Range of Spindle Speeds
140 – 1800 RPM
Max. Travel of Tailstock Quill
50 MM
Taper Of Tail Stock
M.T.#2
Metric Threads Can be Cut
11/04 – 3 MM
Imperial Threads Can be Cut
17. 8’’ - 48’’
Range of Longitudinal Feeds
500 MM
Range Of Cross Feeds
0
Gross Weight
135 kg
Max. Rotatory Angle of Tool Post
±45°
Tool Slide Travel
60 MM
