Engineering EquipmentLathe MachinesMAC AFRIC 550 MM Geared Head Lathe, Drilling & Milling Machine
MAC AFRIC 550 MM Geared Head LatheMAC AFRIC 550 MM Geared Head Lathe

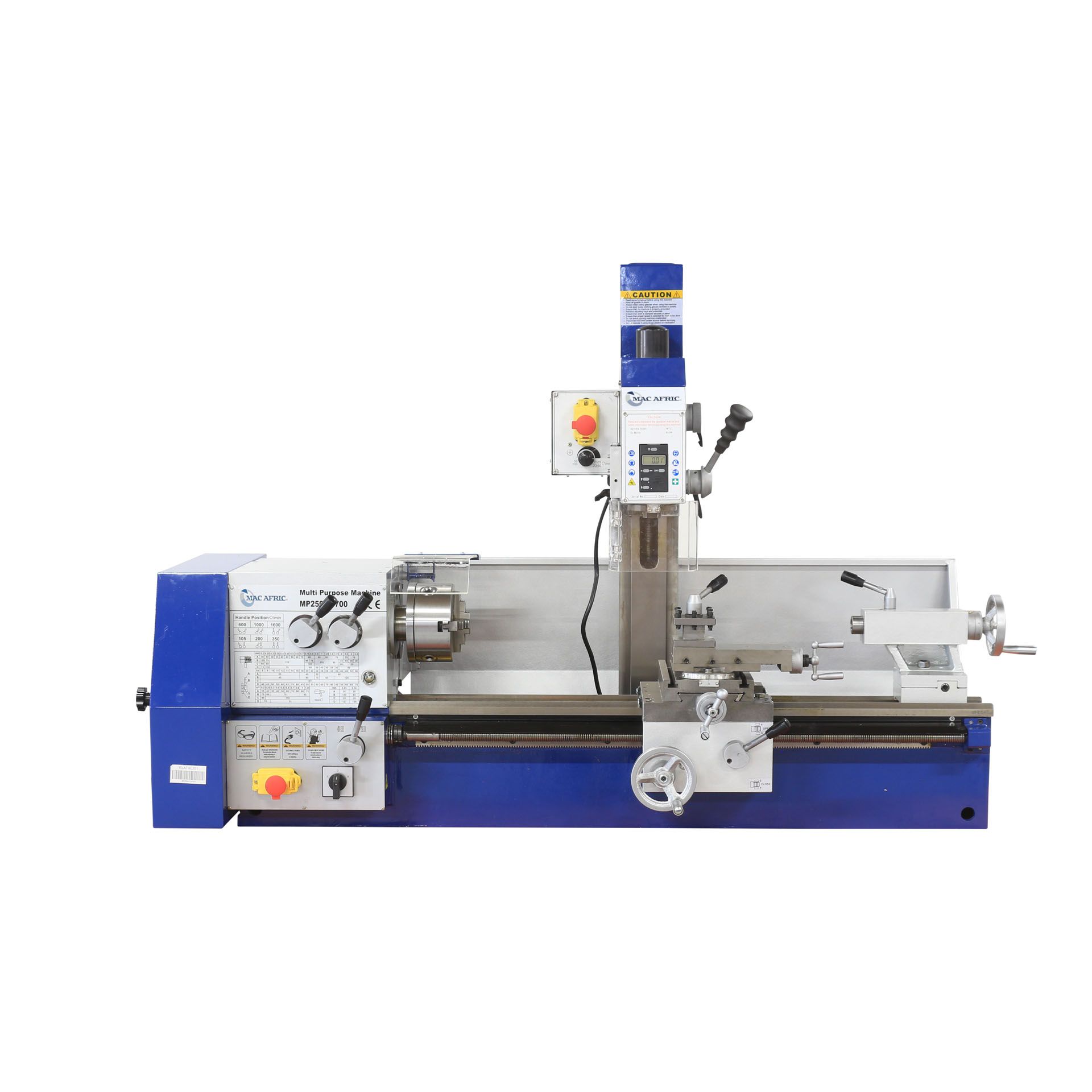

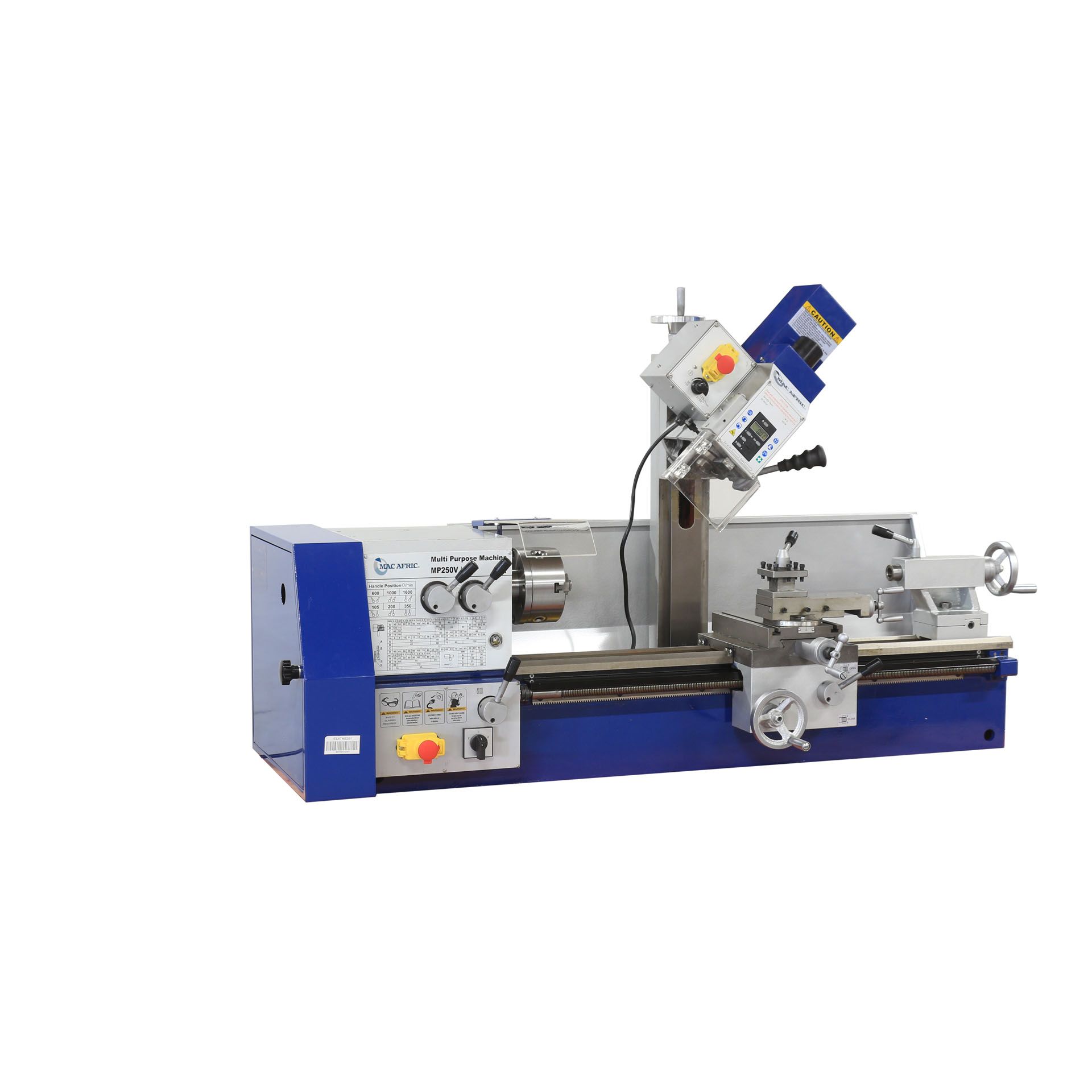

MAC AFRIC 550 MM Geared Head Lathe, Drilling & Milling Machine

SKU: ELATHE251
Compact precision & versatility all in one package. Customer Notice: Please note that this is images of the new model, some branches may still stock the old model. Call your nearest store regarding the model in stock.
Now only
R 36,950.00(incl. VAT)

Specifications
Power Output
550 W
Voltage
230 V (Single Phase)
Frequency
50 HZ
Max. Swing Over Bed
250 MM
Max. Swing Over Cross Slide
115 MM
Max. Swing Over Gap
115 MM
Distance Between Centres
550 MM
Width Of Bed
640 MM
Spindle Bore
26 MM
Range of Spindle Speeds
100 – 2500 RPM
Diameter Of Tailstock Quill
M.T#2
Max. Travel of Tailstock Quill
50 MM
Taper Of Tail Stock
M.T#2
Metric Threads Can be Cut
20/0.2 – 3.5 MM
Imperial Threads Can be Cut
NA
Range of Longitudinal Feeds
0.05/0.1 MM
Range Of Cross Feeds
NA
Gross Weight
195 KG
Tool Slide Travel
0.05 MM
