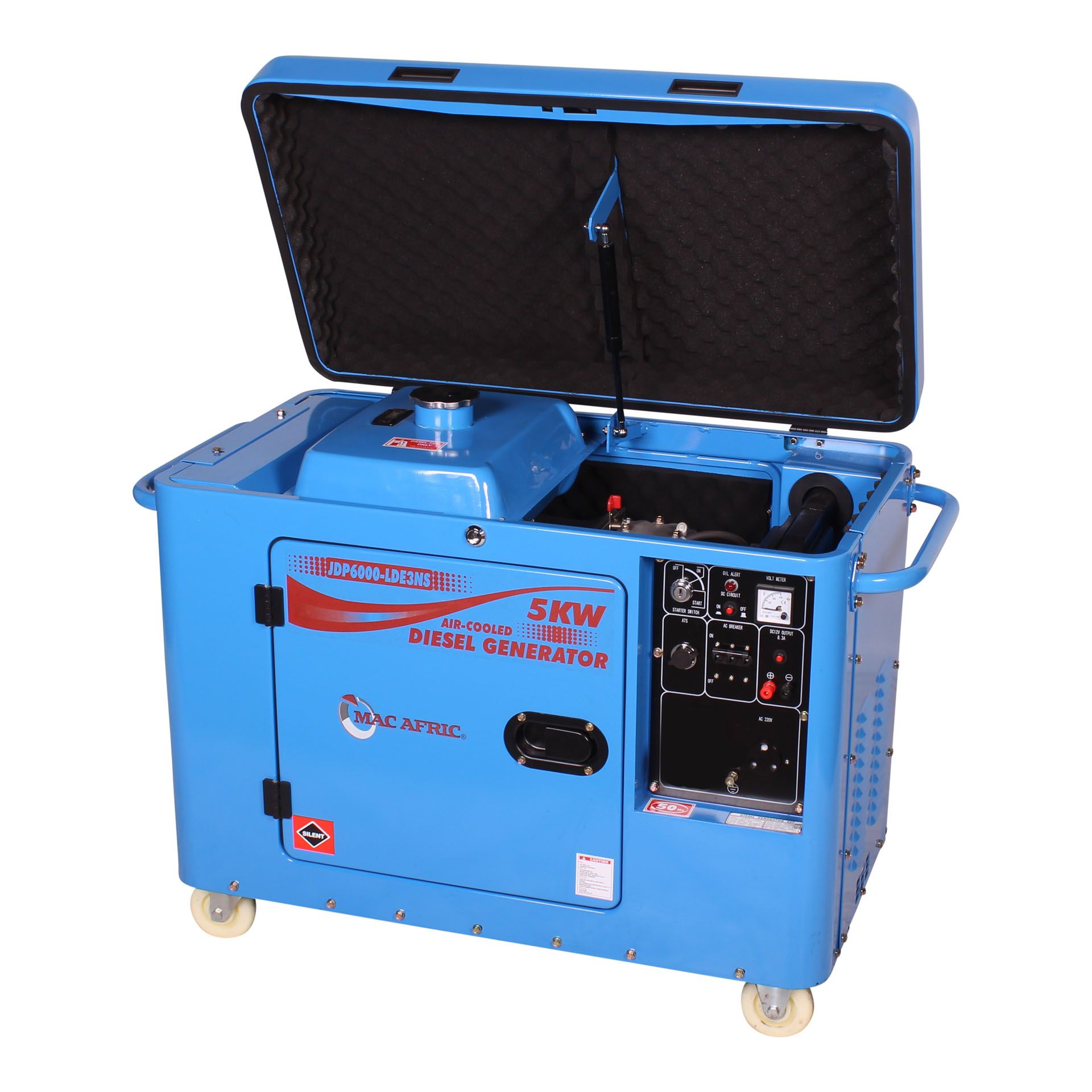

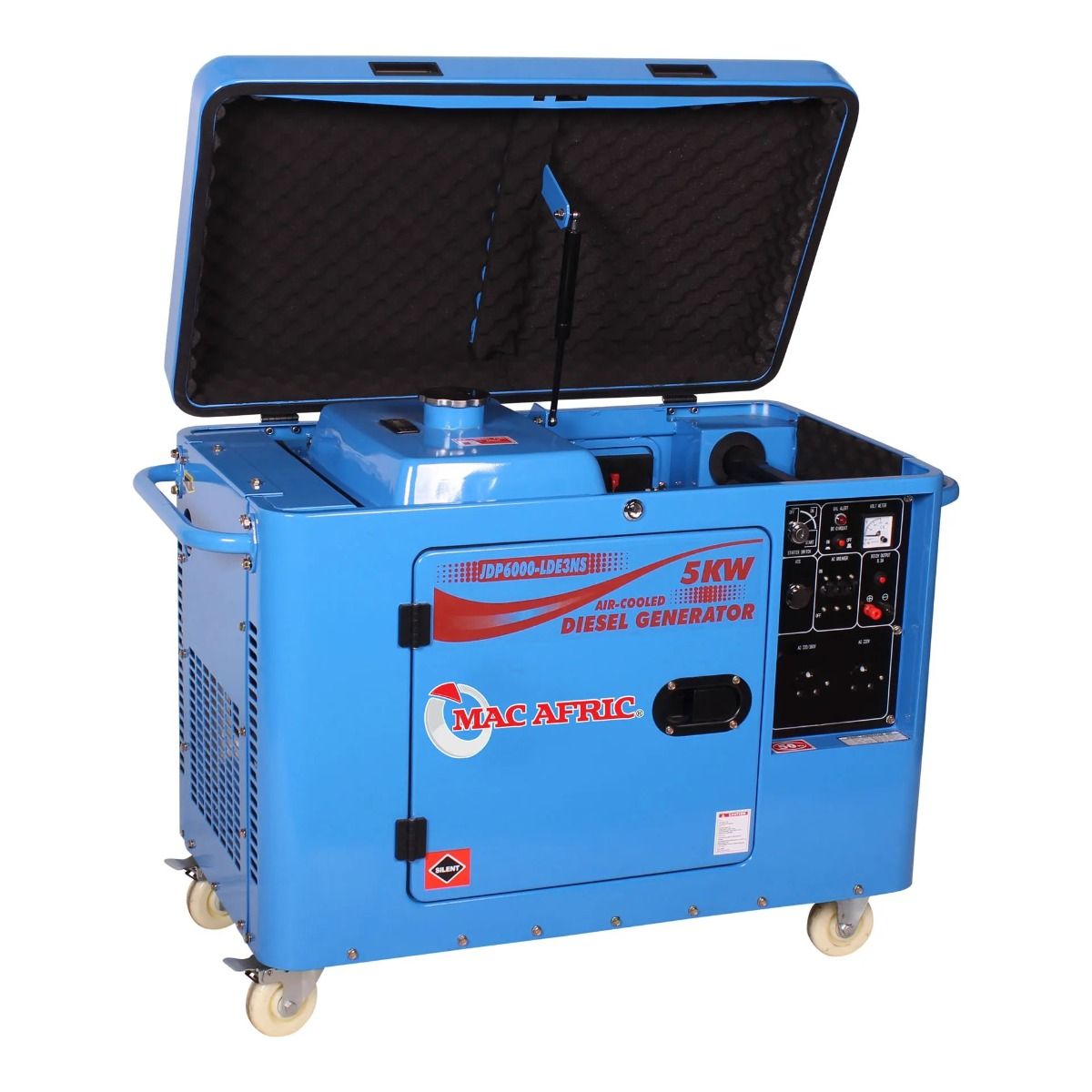

MAC AFRIC 6.5 kVA (5 KW) Standby Enclosed Type Diesel Generator - 230V Single Phase
A diesel-powered electricity generator. The engine is enclosed in a sound-shielded cover, making it ideal to provide backup power to a home or small business. Diesel. Electric (keyed) start. Enclosed design.
| Package Length (cm) | 94.00 |
|---|---|
| Package Width (cm) | 57.00 |
| Package Height (cm) | 75.00 |
| Package Weight (kg) | 180.000000 |
Diesel Generator Specifications
| Feature | Specification |
|---|---|
| Power Output | 5 KW (6.5 KVA) |
| Voltage | 230 V (Single Phase) @ 50 Hz |
| Amperage Per Phase | 22.7 A |
| Decibel Rating | 75 dB(A) |
| Fuel Consumption | 1.67 L/h |
| Tank Capacity | 22 L |
| Start Type | Electric Start |
| Voltage Regulator | Yes |
| Oil Capacity | 1.6 L |
| Engine Displacement | 418 cc |
| Engine Model | JDP6000-LDE3NS |
| Total Running Time | 4–6 hours |
| Service Kit | Yes |
Features
- Diesel engine
- Enclosed design
- Maximum output: 5 000 W
- Power factor: 1
- Horsepower: 13 HP
- Engine speed: 3 600 RPM
- Ignition system: Transistorized magneto
- Oil alert system
Expert Advice
When deciding on generator size, we recommend choosing a machine with 20% more capacity than required. This helps prevent overloading and extends the lifetime of the unit.
Important Notes
- An electrician is required to conduct a load-test to ensure your decision is based on your needed amperage per phase.
- Generators are designed to run at 80% of maximum output at sea level and in neutral climates. Altitude and temperature can reduce engine efficiency.
Limitations of Use
- Do not use more than 50% of your generator’s rated load for the first step load.
- Do not use more than 75% of the rated load for continuous running.
- These limitations help accommodate power spikes and drops that occur during combustion.
