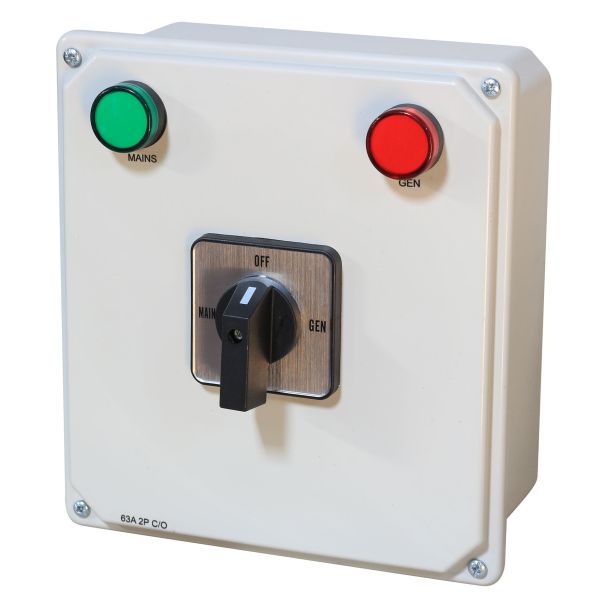

MAC AFRIC 63 A 1-pole & Neutral Change over Switch (230 V)

CHANGE-OVER WIRING:

• 1) All poles that have bridges on, are to be connected to
  your Load (appliances). (On a four pole switch, the pole
  closest to the handle, is the Neutral)
• 2) When the switch is in OFF position (centre), all
  contacts are open.
• 3) When turned anti-clockwise, the Mains contacts will
  then engage, which can be clearly seen from the side of
  the switch. (These contacts are to be connected to
  your Mains(Eskom).
• 4) The remaining available contacts, are
  for Generator connections.

ALL CHANGE-OVER SWITCHES AND
DISCONNECTORS, SHOULD ONLY BE CONNECTED BY A
QUALIFIED ELECTRICIAN.

Labelling:

Labelling of our switches are as follows:

NB !!!!!

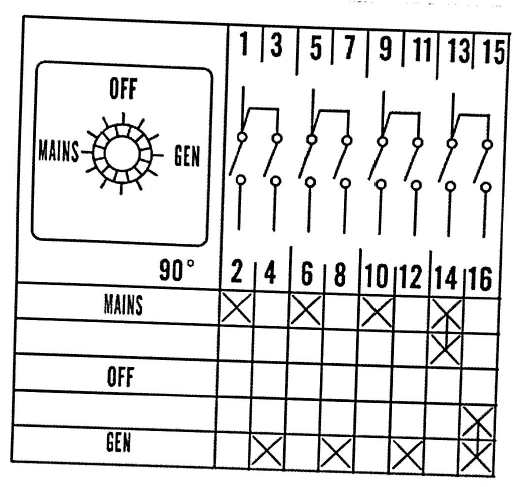

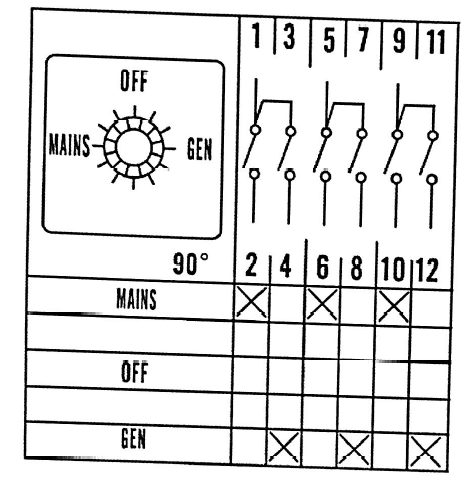

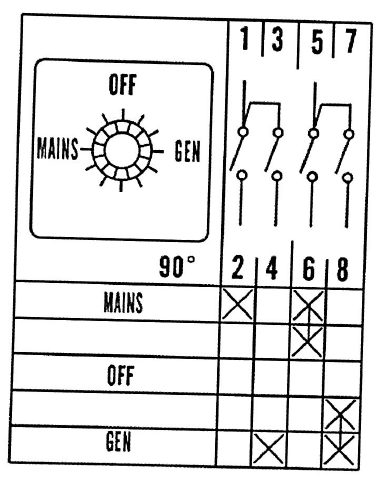

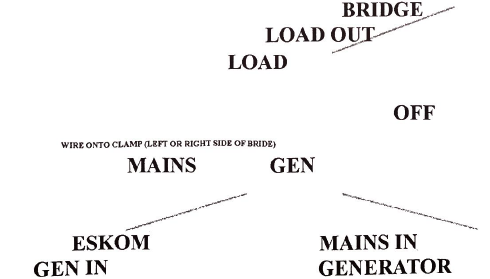

Load - 1,2,3,4 > Appliances
                            (House)
Main - 1,2,3,4 > Eskom
Gen - 1,2,3,4 > Generator
