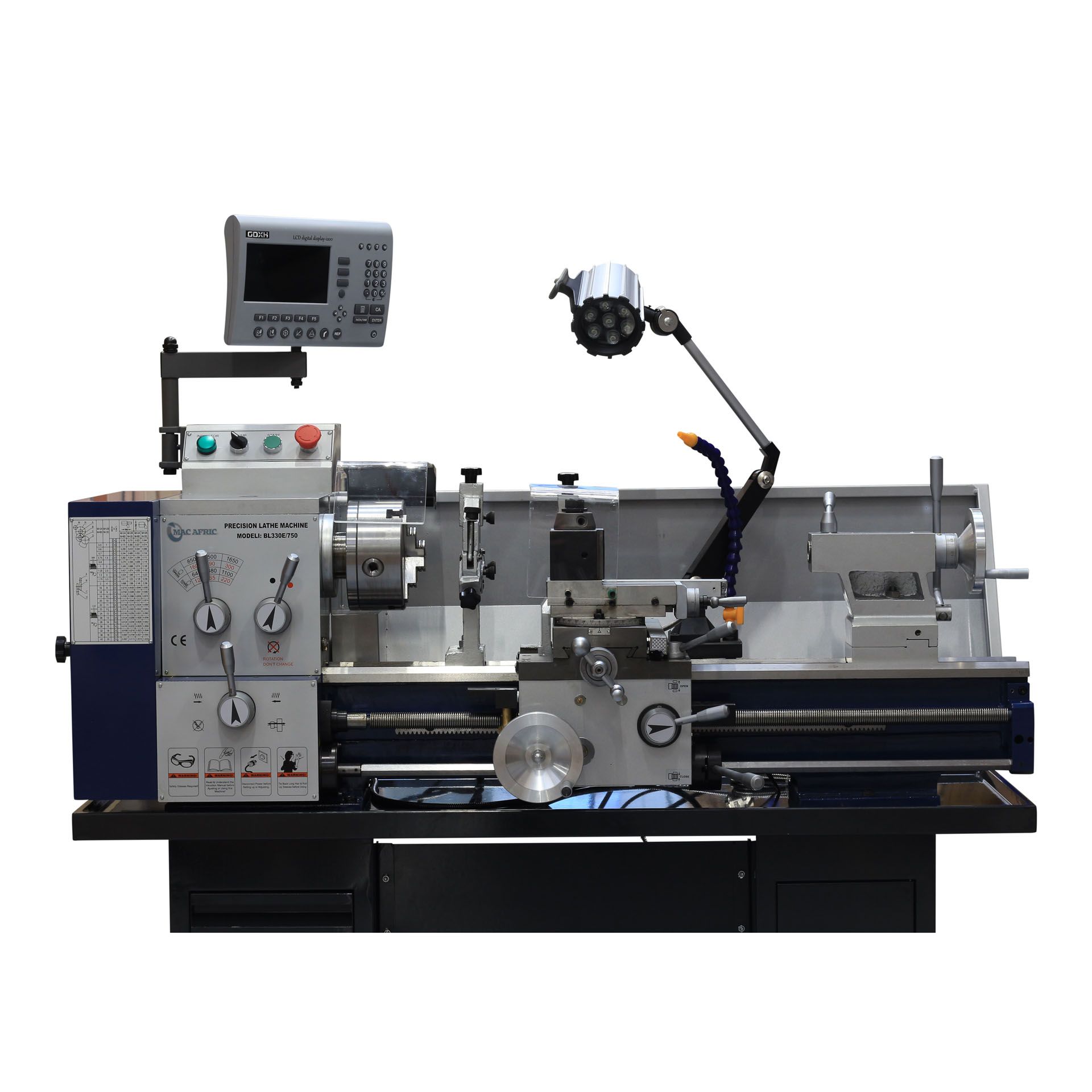

MAC AFRIC 750 MM Professional Geared Head Bench Lathe
Our Mac-Afric ELATHE-750 is superbly engineered, featuring a solid construction, superb precision, and smooth operation with a multitude of features which makes this model outstanding value for money and the professional enthusiast/engineers choice.
This model is fitted with a quick change tool post that cuts the set-up time for ease of operation. Additionally, this lathe is equipped with steady and follow rest, LED work light, coolant system, and features a 3-axis D.R.O. system fitted for high accuracy and repetitive turning.
| Product Quote | No |
|---|---|
| Disable Add To Cart | No |
| Disable Add To Quote | No |
| Package Length (cm) | 132.00 |
| Package Height (cm) | 70.00 |
| Power Output | 1 100 W |
| Voltage | 230 V |
| Frequency | 50 HZ |
| Max. Swing Over Bed | 330 MM |
| Max. Swing Over Cross Slide | 220 MM |
| Max. Swing Over Gap | NA |
| Width Of Bed | 160 MM |
| Spindle Bore | 38 MM |
| Range of Spindle Speeds | 60, 90, 120, 160, 220, 300, 380, 500, 640, 850, 1 100, 1 650 RPM (12 Steps) |
| Max. Travel of Tailstock Quill | 70 MM |
| Metric Threads Can be Cut | 0.5 - 4 MM (17 Steps) |
| Imperial Threads Can be Cut | 9 - 40 TPI (24 Steps) |
| Range of Longitudinal Feeds | 0.1 - 1.396 MM/REV |
| Range Of Cross Feeds | 0.025 - 2.34 MM/REV |
| Gross Weight | 240 KG |
| Is In Storelocator Stock | Yes |
| Specifications Description | |
| Product FAQs | How do I order a Product?You are welcome to visit any of our stores nationwide. Alternatively you can order the product here on our website. Simply click add to cart to begin. We offer both delivery option or collection in store Is the payments secure?Yes. You payment information is never present on our website or the payment providers software. Its all encrypted with the highest level of security. You are welcome to contact our payment providers websites for more information How can I contact you?You can contact any store directly from the store locator page. Or alternatively use the button on the right. All your contact information is on our contact page for easy reference How long does delivery take?Delivery orders are sent from our warehouse DC in Aeroton every business day. Time for final delivery is between 3-5 business days for most orders. Sometimes sooner for main centres. Deliveries are completed by our trusted couriers & logistics partners How can I make payment?In store we offer Visa & Mastercard or EFT payments (please note EFT payments take 48 Hours to clear). Alternatively online we offer Visa, Mastercard & Secure Instant EFT |
Our Mac-Afric ELATHE-750 is superbly engineered, featuring a solid construction, superb precision, and smooth operation with a multitude of features which makes this model outstanding value for money and the professional enthusiast/engineers choice.
This model is fitted with a quick change tool post that cuts the set-up time for ease of operation. Additionally, this lathe is equipped with steady and follow rest, LED work light, coolant system, and features a 3-axis D.R.O. system fitted for high accuracy and repetitive turning.
