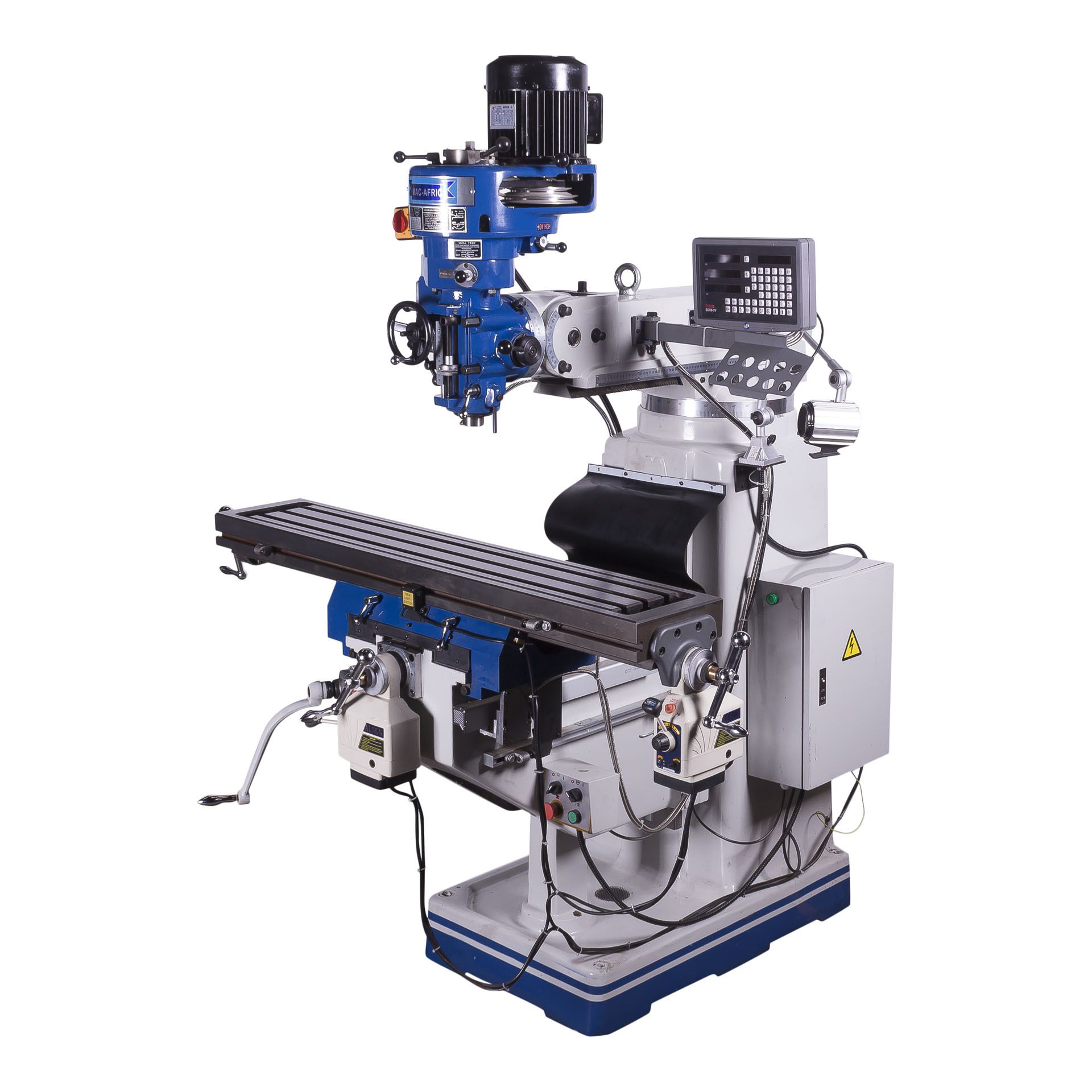

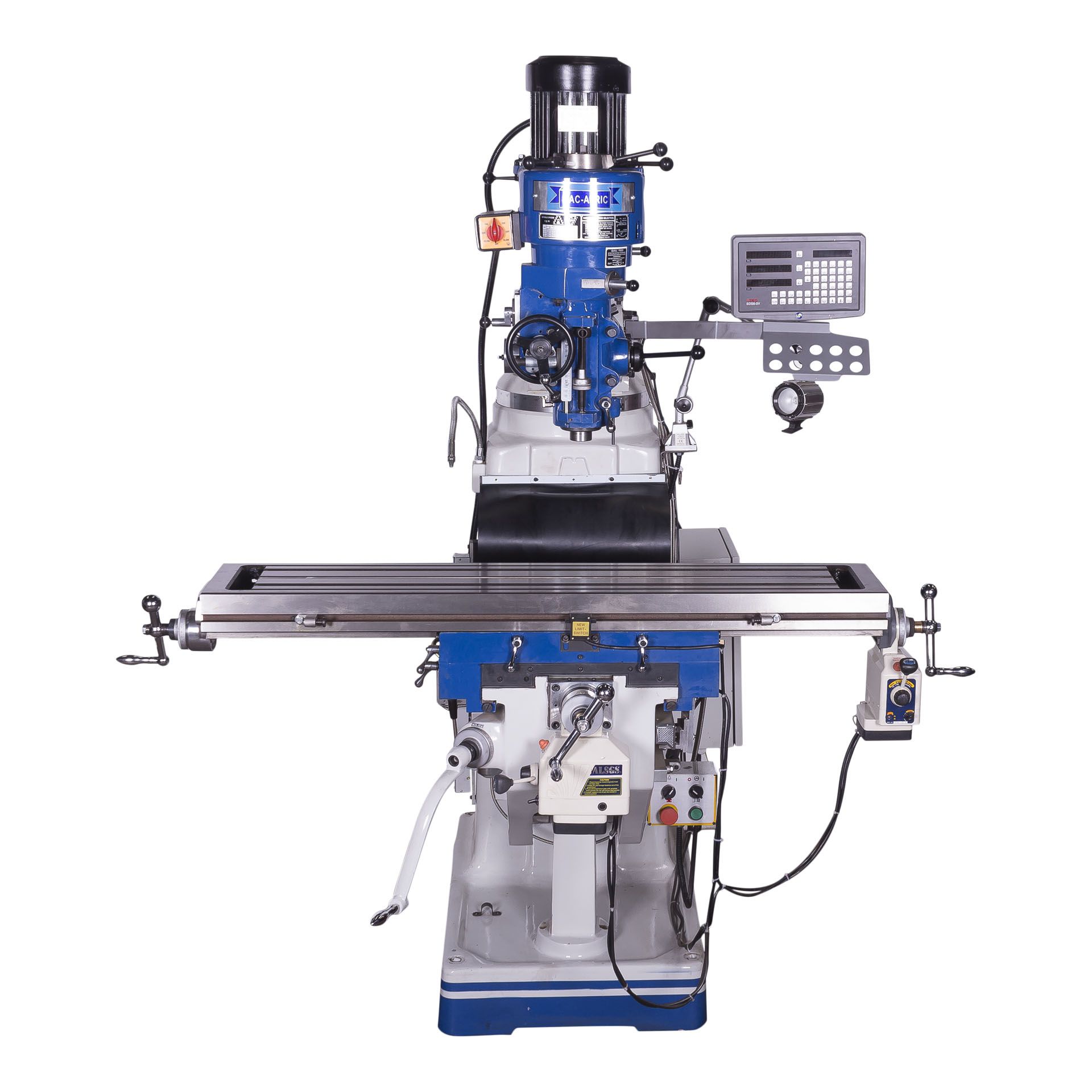

MAC AFRIC BP Type Milling Machine (Turret Head 380V)

SKU: EMILGH632
The machine can be widely used to process plane surface, an oblique plane at any angle, to mill key slots, grooves, and to drill, ream, and boreholes. Its milling head can turn by an angle of 90Ëš rightward or leftward, of 45Ëš forward or backward. The ram can revolve horizontally by an angle of 180Ëš. The spindle can rotate at a high speed with wide angles. The spindle quill can undertake automatic sizing feed and is protected by an overload safeguard. The machine is an ideal universal equipment for metalworking.
Now only
R 149,950.00(incl. VAT)

Specifications
Motor Power
2.2 KW
Voltage
380 V @ 50 HZ
Table Size
254 x 1370 MM
Table Travel
400 x 800 MM
Cross Travel
405 MM
Knee Travel
405 MM
Max. Drilling Capacity
50 MM
Max Boring
152.4 MM
Spindle Taper
R8
Max. End Mill Capacity
25 MM
Max. Tapping Capacity
M16
Spindle Speed
60 – 3600 RPM
Spindle Speed (Low)
65 RPM
Spindle Speed (High)
4500 RPM
Extra features
Water Pump Light, Digital Readout, Auto-Feed
