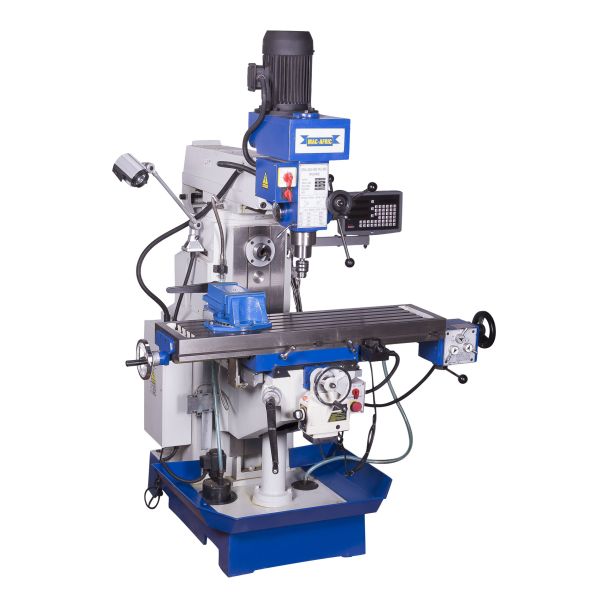

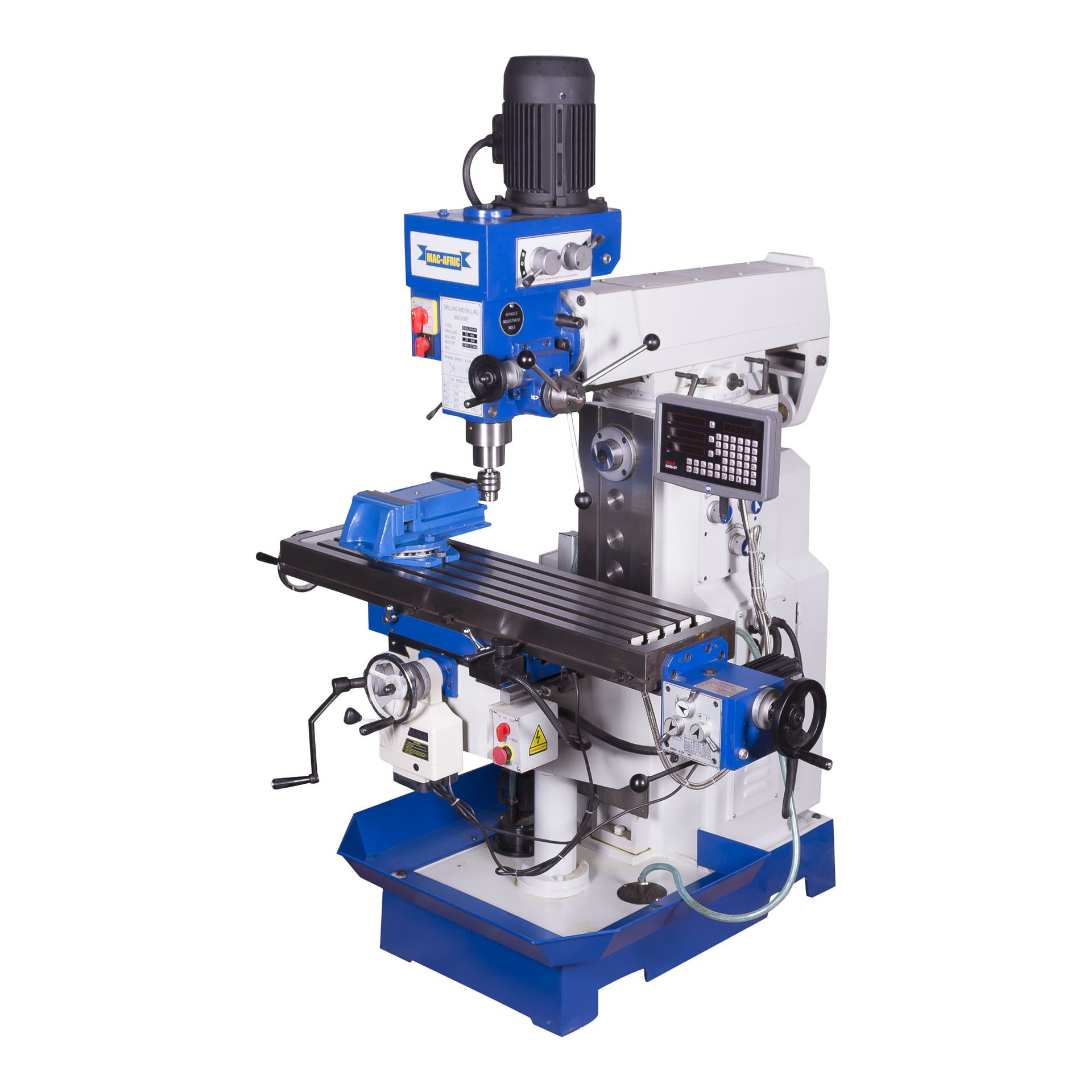

MAC AFRIC Dual Motor Geared Head Milling Machine

SKU: EMILGH635
*Accessories incl.: Water pump, light, digital readout, and auto-feed. The Mac Afric 635 Geared Head Milling Machine is designed and made with uncompromising quality. Dual motors allow for Vertical & Horizontal Milling. Fitted with a 3 axis D.R.O., Coolant Pump and Power Feeds allows for a much less labor-intensive & more accurate results.
Now only
R 134,950.00(incl. VAT)

Specifications
Motor Power
1.5 KW/2 HP (H) and 2.2 KW/3 HP (V)
Voltage
380 V @ 50 HZ
Table Size
1 120 x 230 MM
Table Travel
630 x 350 MM
Cross Travel
NA
Max. Drilling Capacity
50 MM
Max Boring
120 MM
Spindle Taper
MT 4
Max. End Mill Capacity
25 MM
Max. Tapping Capacity
M16
Spindle Speed
115 - 1 750 RPM (12 Steps)
Spindle Speed (Low)
115, 290, 360, 875 MM
Spindle Speed (High)
230, 580, 720, 1 750 MM
Distance Between Vertical: Spindle & Surface Column
200 - 550 MM
Spindle & Surface of Table
100 - 480 MM
Vertical Spindle Travel
120 MM
Extra features
Water Pump Light, Digital Readout, Auto-Feed
