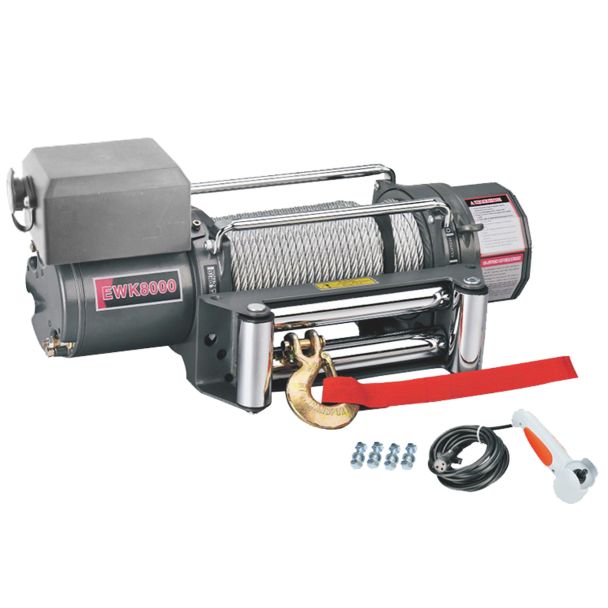

MAC AFRIC EWK 8000U 12 V Winch

SKU: GWINCH800

Unleash the power of the MAC AFRIC EWK 8000U 12V Winch - your ultimate off-road partner for the most demanding challenges! With a staggering rated line pull of 3,620 kg (7,981 lb) at 6 meters and 2,170 kg (4,784 lb) at 29 meters, its durable permanent magnet motor delivers impressive performance in any situation. With a gear reduction ratio of 184:1 and a generous 29-meter cable length, this winch ensures you have the strength and reach to tackle the toughest terrains, making it an essential addition to your off-road arsenal.

Now only

R 4,995.00(incl. VAT)

Price Includes 15% VAT
Click & Collect Service is Free
4 - 6 Days Delivery Available

Specifications

Rated Line Pull

3692 KGs (8000 lbs)

Motor Type

Permananent Magnet

Motor Specifications

12V: Input: 4.2KW / 5.5HP; Output: 1.4KW / 1.9HP

Gear Reduction Ratio

184:1

Cable Length

29 M

Cable Diameter

8.3 MM

Mounting Bolt Pattern

10 "×4.5 " (254mm×114.3 mm) 4-M10

Mounting Dimensions

25.2 x 11.4 MM

Drum Size

Ø2.48 "×8.9" (Ø63mm×227mm)

Pull, Speed, Amperes, Volts (First layer):

Line Pull	Line Speed ft/min (m/min)	Current (A)
lbs (kgs)	12 V DC	12 V DC
0 (0)	13.8 (4.2)	26
2000 (907)	10.8 (3.3)	85
4000 (1814)	8.8 (2.7)	160
6000 (2722)	6.6 (2.0)	250
8000(3629)	4.6 (1.4)	320

Line Pull And Rope Capacity In Layer:

Layer	Rated line Pull lbs (kgs)	Total rope on the drum ft (m)
1	8000 (3629)	19.7 (6.0)
2	6500 (2948)	42.7 (13.0)
3	5500 (2495)	68.9 (21.0)
4	4800 (2177)	95.1 (29.0
