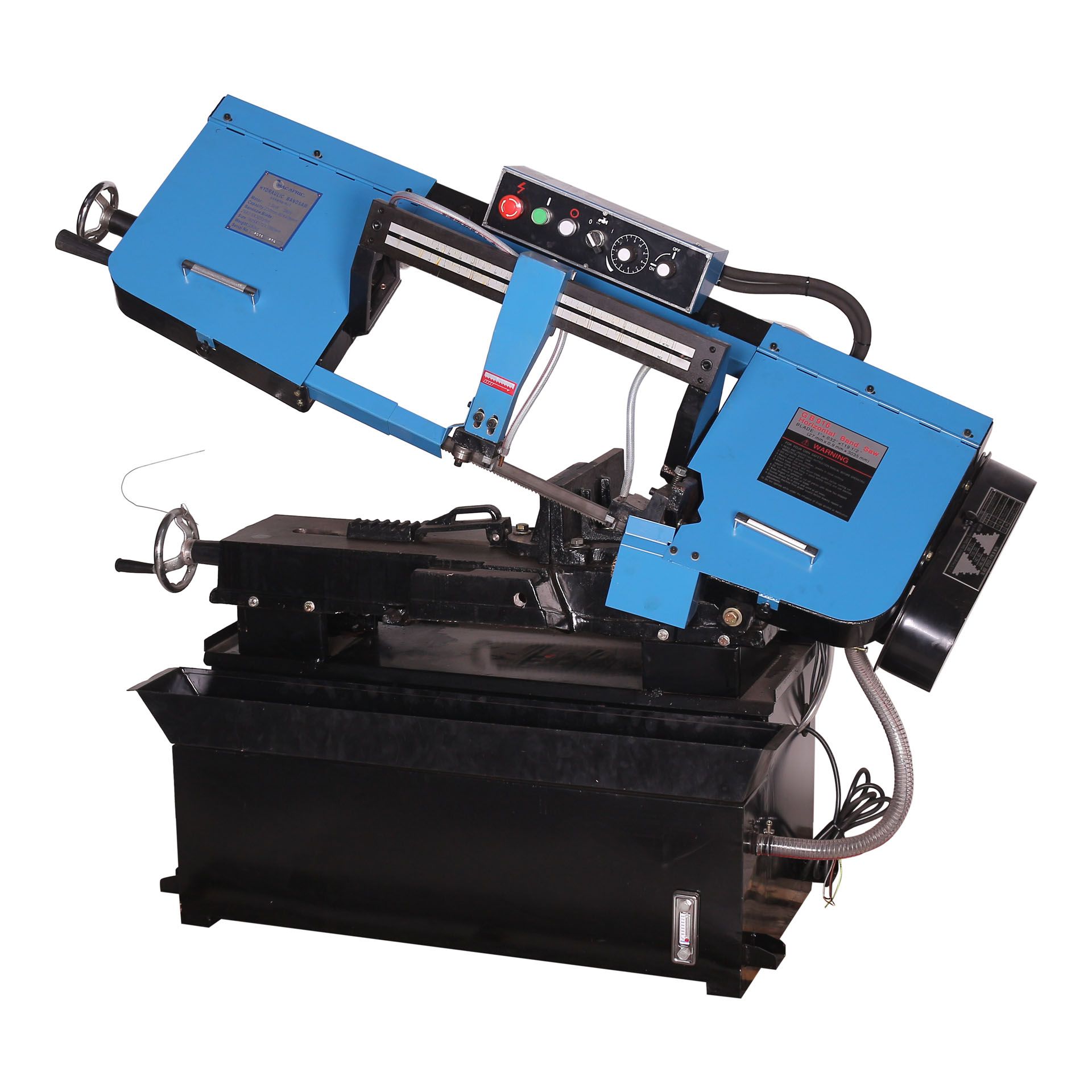

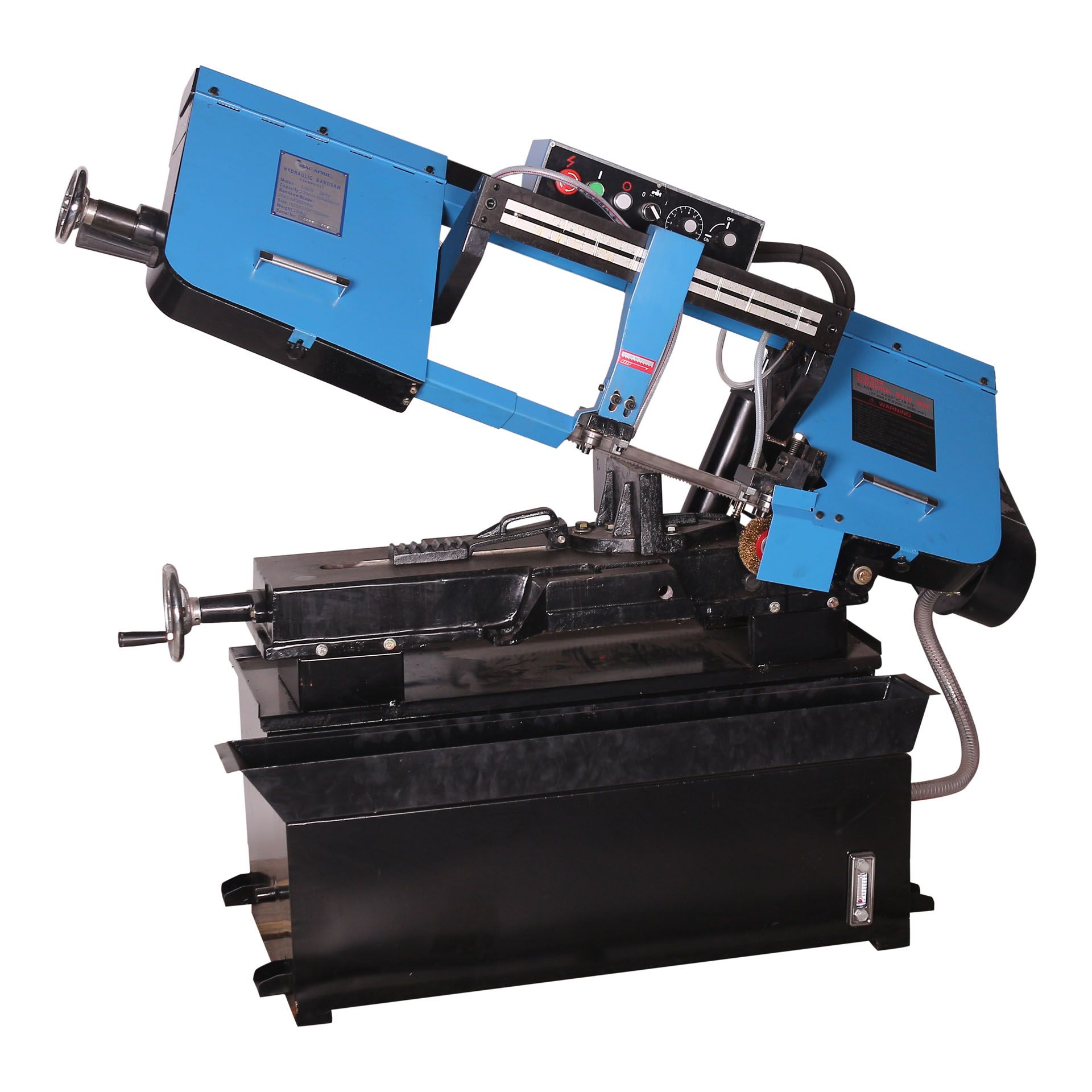

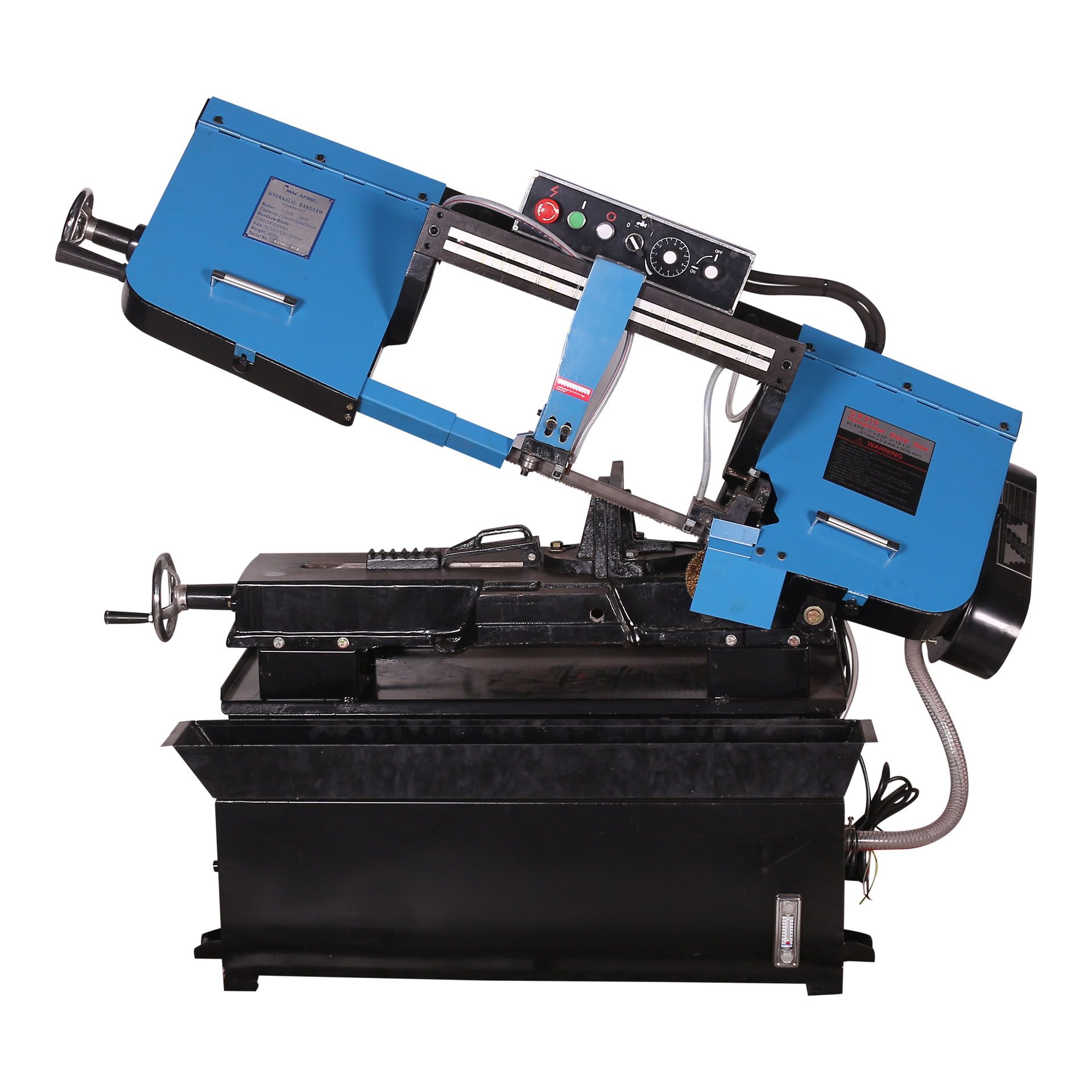

MAC AFRIC GB916 Hydraulic Horizontal Band-saw - 380V Three Phase
Automatic Hydraulic Power Hacksaw Sawing Machine, a versatile and precision cutting tool designed for efficient metalworking processes. This machine employs a sophisticated hydraulic drive system, featuring components such as a pump, valve, cylinder, fuel tank, and pipelines, all intricately connected within the hydraulic circuit. Under precise electrical control, this system orchestrates the movement of the saw beam and securely clamps the workpiece.
One of its standout features is the speed control valve, which enables seamless, stepless adjustment of the feeding speed. This flexibility allows the machine to adapt to the specific requirements of different materials, ensuring precise and efficient sawing.
| Package Length (cm) | 170.00 |
|---|---|
| Package Width (cm) | 115.00 |
| Package Height (cm) | 80.00 |
| Package Weight (kg) | 350.000000 |
| Blade Size | 25x0.9x3035 mm |
| Motor Output | 1.5 kw 50hz/1420 rpm |
| Specifications Description | The electrical control system, comprising an electric box, control box, junction box, travel switch, and electromagnet, plays a pivotal role in managing various aspects of the cutting process. It governs the rotation of the saw blade, guides the movement of the saw beam, and secures the workpiece during the operation. This intricate control system enables the machine to execute a predetermined cutting cycle with precision and reliability. The Automatic Hydraulic Power Hacksaw Sawing Machine is the ideal tool for achieving consistent and high-quality cuts in metalworking, making it an indispensable asset in various industrial applications. |
