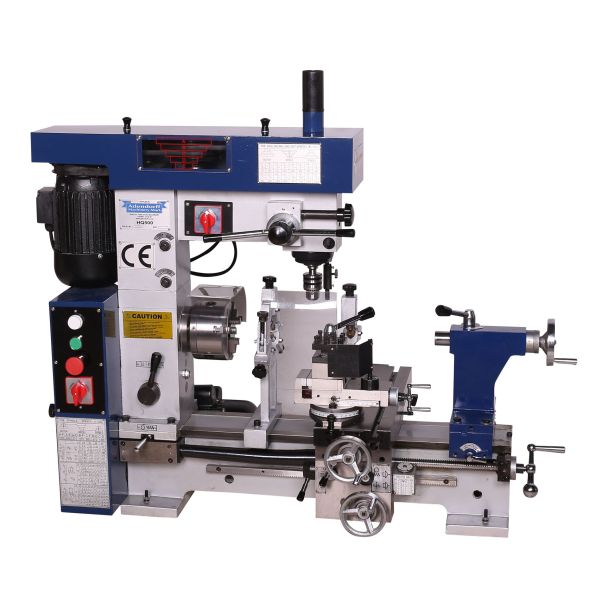

MAC AFRIC HQ500 Lathe, Drilling & Milling Machine

SKU: EMILHQ500
A truly remarkable concept! Lathe + Drill/Mill Combo makes this machine the ideal multi-functional workshop must-have. Fitted with two motors (Lathe & Mill).
Now only
R 39,995.00(incl. VAT)

Specifications
Power Output
550 W
Voltage
230 V @ 50 HZ
Max. Swing Over Bed
440 MM
Table Size
475 x 160 MM
Tail Stock Barrel Taper
MT3
Drilling Diameter
15 MM
Max. Drilling Capacity
22 MM
Max. End Milling Cutter
20 MM
Distance Between Centres
400 / 500 MM
Spindle Travel
85 MM
Amount of Power Feed
0.05 - 0.35 MM (0.002" - 0.014" IN)
Max. Face Milling Capacity
63 MM
Spindle Taper
MT4
Threads That Can be Cut
0.2 - 6 MM / 4 - 120 TPI
Spindle Bore
28 MM
Range of Spindle Speeds
7 Steps / 160 - 1300 RPM
Cross Travel
200 MM
Longitude Travel
440 MM
