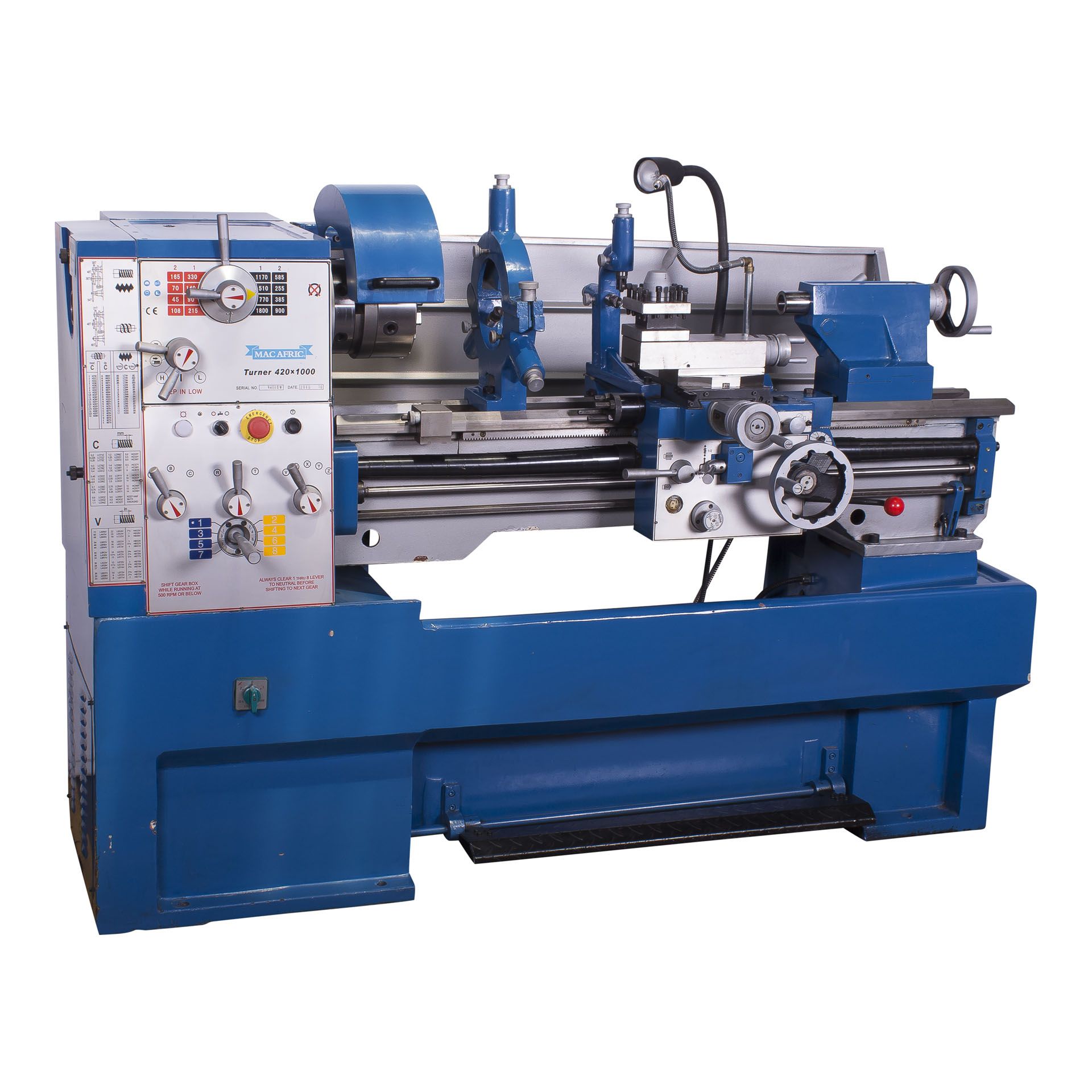

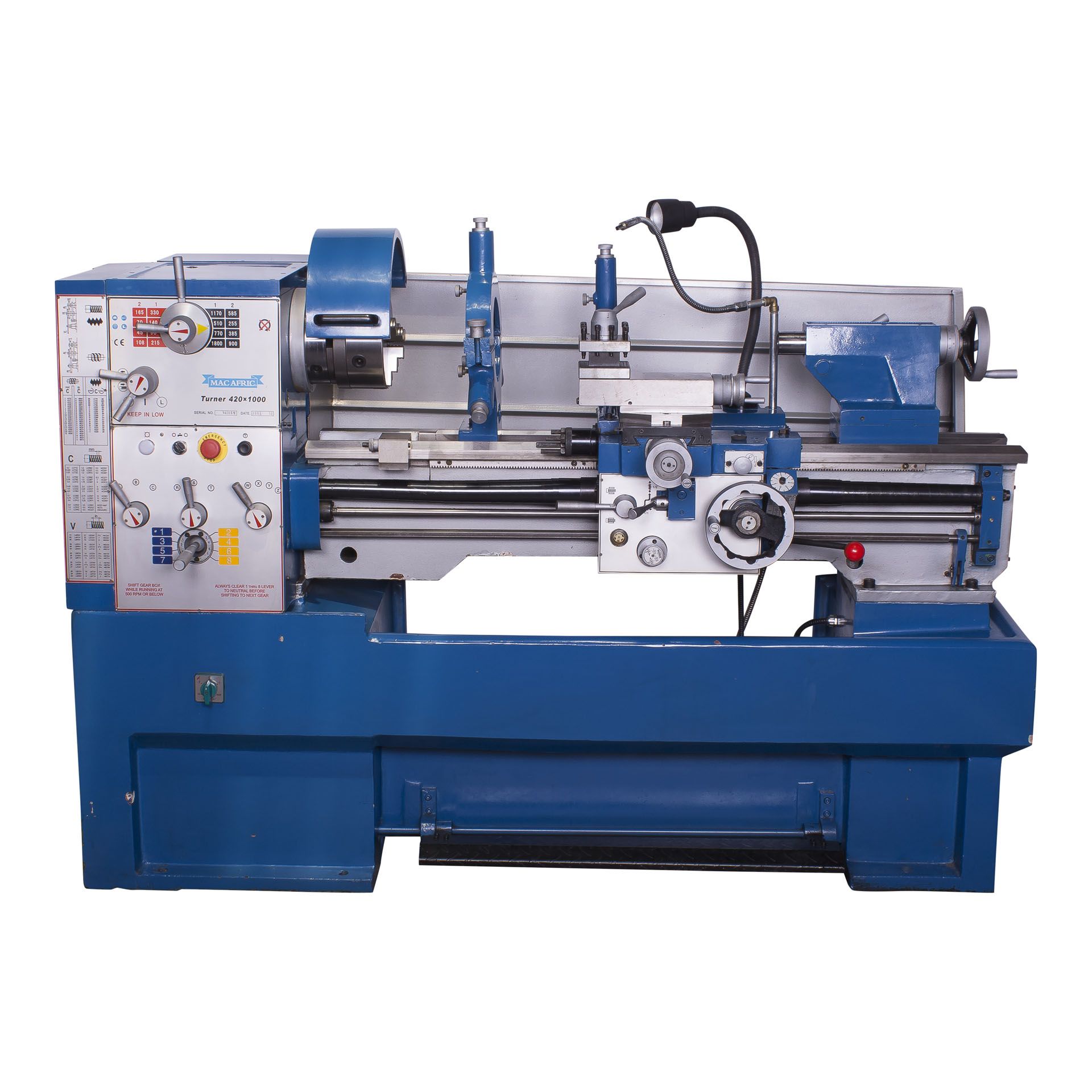

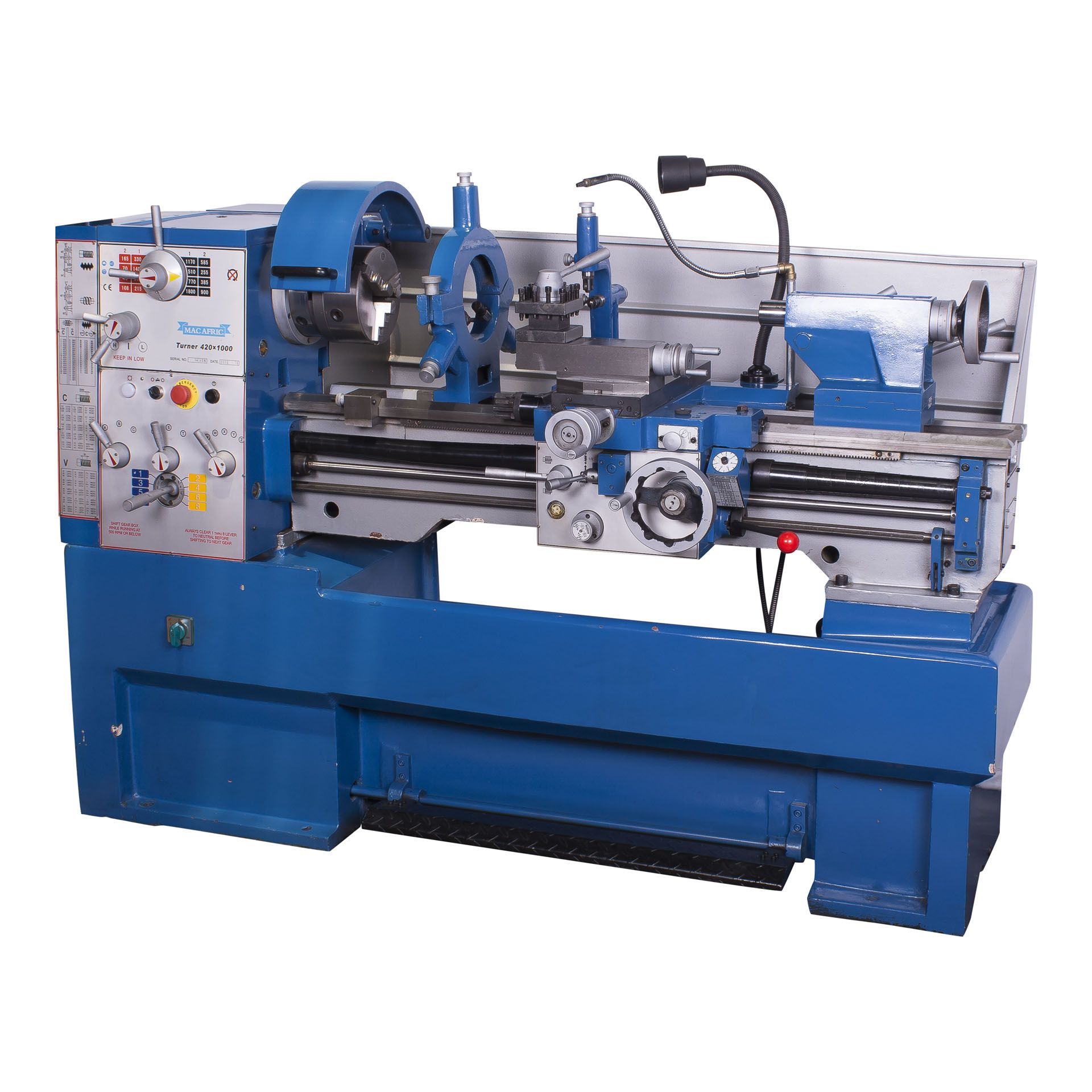

MAC AFRIC Industrial Tool Room Lathe D420

SKU: ELATHE104
Now only
R 164,950.00(incl. VAT)

Specifications
Power Output
3 KW (4 HP)
Voltage
380 V
Frequency
50 HZ
Max. Swing Over Bed
410 MM (16" IN)
Max. Swing Over Cross Slide
255 MM (10" IN)
Max. Swing Over Gap
558.8 x 190 MM (22" IN x 7 1/2" IN)
Distance Between Centres
1 000 MM (39" IN)
Width Of Bed
250 MM (10" IN)
Spindle Bore
52 MM (2" IN)
Taper Of Spindle Bore
MT 6
Range of Spindle Speeds
45 - 1 800 RPM (16 Speeds)
Diameter Of Tailstock Quill
50 MM (2" IN)
Max. Travel of Tailstock Quill
120 MM (4 3/4" IN)
Taper Of Tail Stock
MT 4
Metric Threads Can be Cut
0.2 - 14 MM (39 NOs)
Imperial Threads Can be Cut
2 - 27 TPI (45 NOs)
Range of Longitudinal Feeds
0.05 - 1.7 MM/REV (0.002 - 0.067 INCH/REV)
Range Of Cross Feeds
0.025 - 0.85 MM/REV (0.001 - 0.0335 INCH/REV)
Gross Weight
1 555 KG
Max. Rotatory Angle of Tool Post
NA
Tool Slide Travel
140 MM (5 1/2" IN)
Range of Module Pitches
0.3 - 3.5 M P (18 NOS)
Range of Diametral Pitches
8 - 44 DP (1 NOS)
Cutting Tool Max Section
20 x 20 MM (3/4" IN x 3/4" IN)
Spindle Nose
D1 - 6
Coolant Pump Motor
4.5/3 KW 4P, 3PH 90 W
