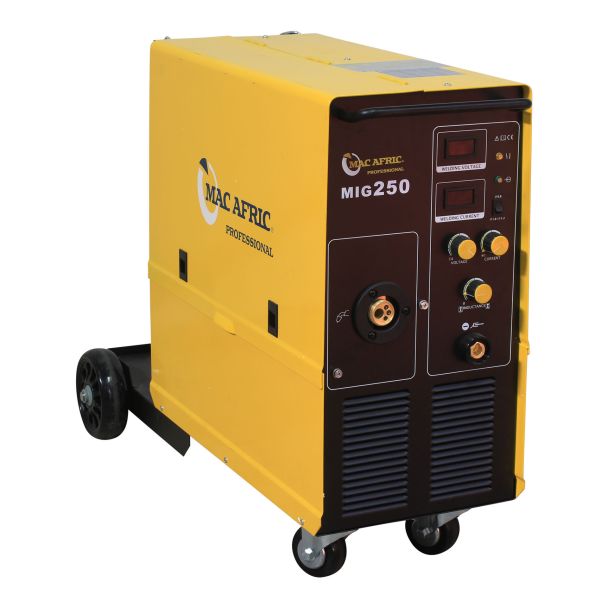

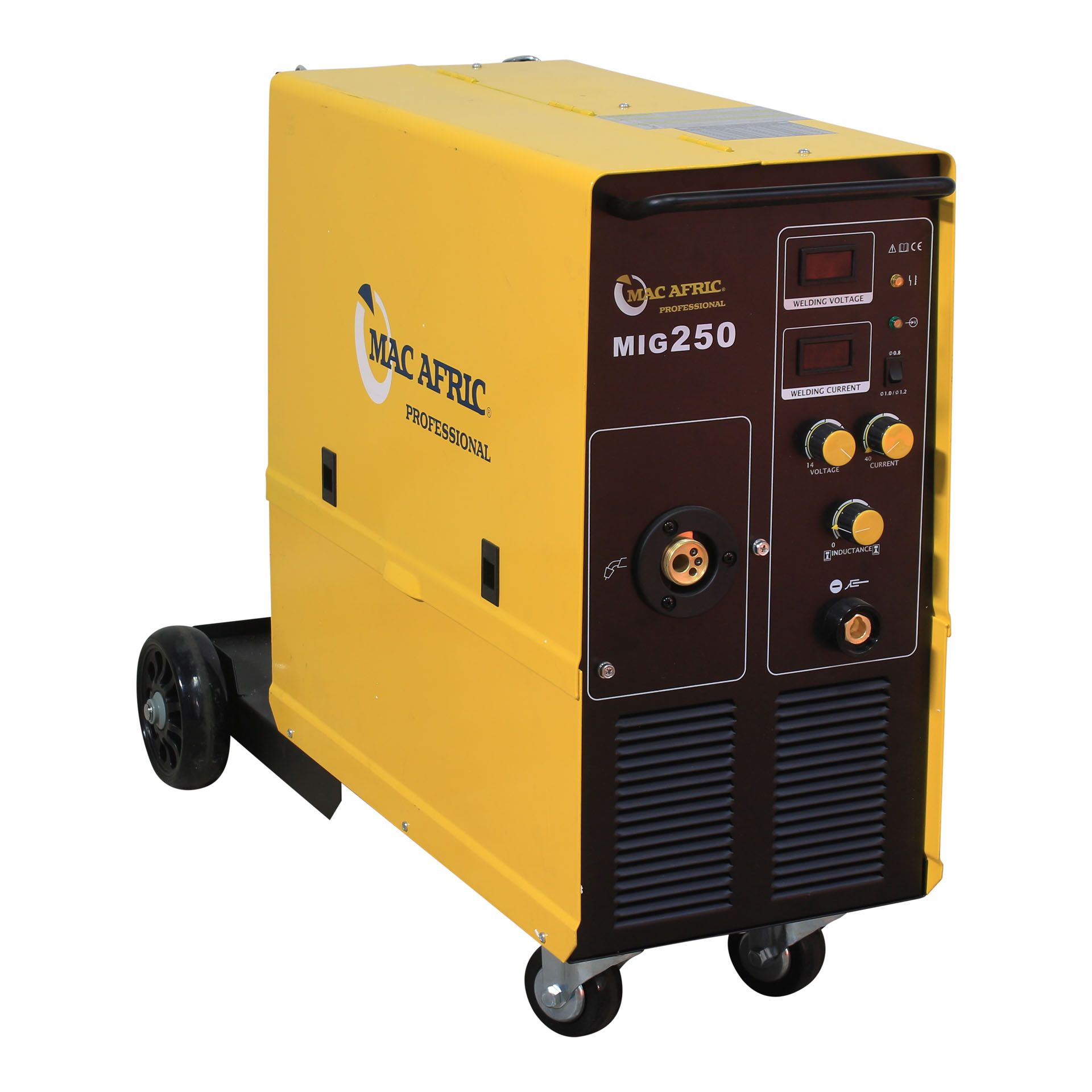

MAC AFRIC MODEL 250 MIG Inverter Welder
The MAC AFRIC Model 250 MIG Inverter Welder is designed for the professional welder, combining advanced technology with reliable performance.
Package Weight (kg) | 25.720000 |
---|---|
Package Length (cm) | 57.80 |
Package Width (cm) | 36.20 |
Package Height (cm) | 68.40 |
EWELDM250K25 Welder Specifications
Specification | Value |
---|---|
Model | EWELDM250K25 |
Input Voltage | 220 V ± 15% |
Frequency | 50/60 Hz |
Rated Input Current | 40 A (Ieff = 25 A) |
Rated Input Power | 8.8 kVA |
Output Current | 40 – 210 A |
Wire Speed | 1.0 – 15 m/min |
Output Voltage | 16 – 24.5 V |
No Load Voltage | 45 V |
Post Flow | 1 ± 0.5 s |
Duty Cycle (40°C) | 210 A / 25.6 V @ 25% 160 A / 22 V @ 60% 130 A / 20.5 V @ 100% |
Power Factor | 0.73 |
Efficiency | 80% |
Housing Protection Grade | IP21 |
Key Features
- User-Friendly Control Panel: Easily adjusts wire feed speed and voltage with customisable arc traits for precise welding.
- Advanced Inverter Technology: Uses 100 kHz full-bridge MOSFET inverter (12 PCS) for efficient, stable welding.
- Optimised Thermal Management: Four heat sinks maximise heat dissipation, improving stability and lifespan.
- Adjustable Parameters: Allows current, voltage and arc trait adjustments, with selectable wire speed for versatility.
- Large Wire Spool Capacity: Holds up to a 15 kg spool for extended welding.
- Real-Time Display: LED display shows actual welding current for precision.
- Intelligent Protection: Built-in safeguards against phase default, overload, and overheating.
