MAC AFRIC Portable Spot Welder - Model H-3000S
In stock
SKU
EWELSP001
R 13,995.00

MAC AFRIC Portable Spot Welder - Model H-3000S

In stock
SKU
EWELSP001
R 13,995.00
Check Store Availability
MAC AFRIC Portable Spot Welder - Model H-3000S
In stock
SKU
EWELSP001

Find a Store

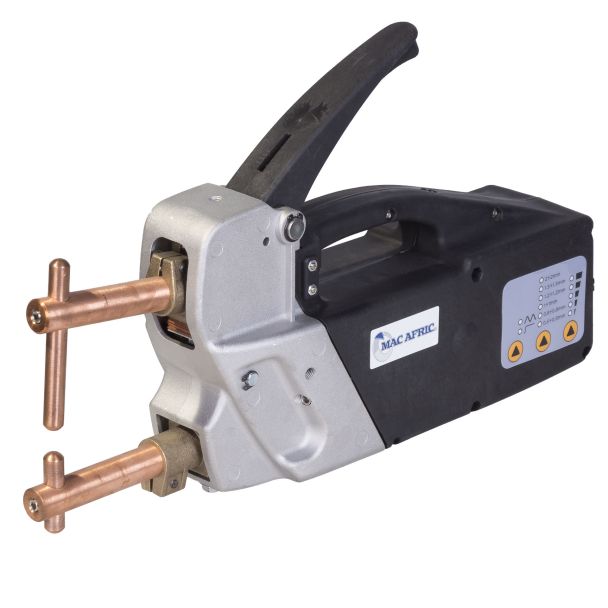

The MAC AFRIC Portable Spot Welder H-3000S is a compact, microprocessor-controlled spot welding machine ideal for precision spot welding on low carbon sheet steel up to a thickness of 2+2mm. It features adjustable electrode pressure, a selection of normal or pulse welding modes, and comes with standard 120mm arms and electrodes, making it a versatile and efficient tool for various welding applications.
More Information
Specifications Description
  • Electronic Timer: Enables precise spot welding control.
  • Microprocessor Controlled: Offers functions like adjustable welding time, thickness selection, and normal or pulse welding modes.
  • Electrode Pressure Adjustment Screw
  • Right/Left Handgrip
  • Position for Eyebolt (eyebolt not included)
  • Moving Welding Arm
  • Fixed Welding Arm
  • Power Supply Cable
  • Rating Plate
  • Microswitch
  • Welding Time Adjustment
  • Control Panel
  • Welding Lever

Specifications:

  • Voltage: 230V, 1ph
  • Power at 50%: 2.5kVA
  • Max Welding Power: 14kVA
  • No Load Voltage: 2.5V
  • Max Short Circuit Current: 6.3kA
  • Weight: 10.5kg
  • Airborne Noise Level: <70dB(A)
  • Dimensions: 440 x 100 x 185 mm
  • Plug and Socket: 16/32A
  • Delayed Mains Fuses: 25A
  • Max Spot Weld Thickness: 2+2mm
  • Min Rest Period Between Welds: 20 seconds
  • Maximum Clamping Force: 120kg
  • Projection of Arms: 120mm
Package Weight (kg) 13.000000
Package Length (cm) 55.00
Package Width (cm) 26.00
Package Height (cm) 17.00
The MAC AFRIC Portable Spot Welder H-3000S is a compact, microprocessor-controlled spot welding machine ideal for precision spot welding on low carbon sheet steel up to a thickness of 2+2mm. It features adjustable electrode pressure, a selection of normal or pulse welding modes, and comes with standard 120mm arms and electrodes, making it a versatile and efficient tool for various welding applications.
