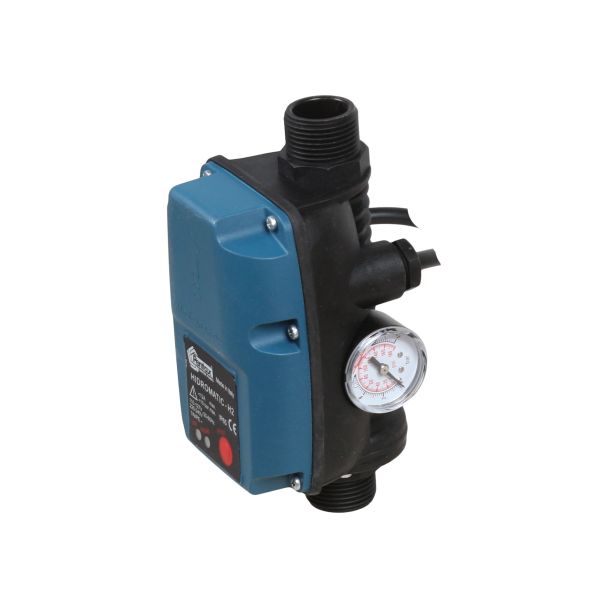

PENTAX Hydromatic Flow Control (H2)
The PENTAX Hydromatic flow controller is a complete replacement for your water system set. Containing a pressure switch that ensures you have constant water pressure by automating the start/stop function of the water pump if there is a drop in pressure. Provides dry-run protection and automatic reset & overload protection
| Package Length (cm) | 25.40 |
|---|---|
| Package Width (cm) | 11.68 |
| Package Height (cm) | 12.70 |
| Package Weight (kg) | 0.700000 |
| Max. Liquid Temperature | 5 – 55 C |
| Voltage | Single Phase (220 - 230V) |
| Working Pressure | 14.5 – 50.65PSI |
| Rated Current | 12A |
| Max Flow | 150 litres per minute |
| Product FAQs | How do I order a Product?You are welcome to visit any of our stores nationwide. Alternatively you can order the product here on our website. Simply click add to cart to begin. We offer both delivery option or collection in store Is the payments secure?Yes. You payment information is never present on our website or the payment providers software. Its all encrypted with the highest level of security. You are welcome to contact our payment providers websites for more information How can I contact you?You can contact any store directly from the store locator page. Or alternatively use the button on the right. All your contact information is on our contact page for easy reference How long does delivery take?Delivery orders are sent from our warehouse DC in Aeroton every business day. Time for final delivery is between 3-5 business days for most orders. Sometimes sooner for main centres. Deliveries are completed by our trusted couriers & logistics partners How can I make payment?In store we offer Visa & Mastercard or EFT payments (please note EFT payments take 48 Hours to clear). Alternatively online we offer Visa, Mastercard & Secure Instant EFT |

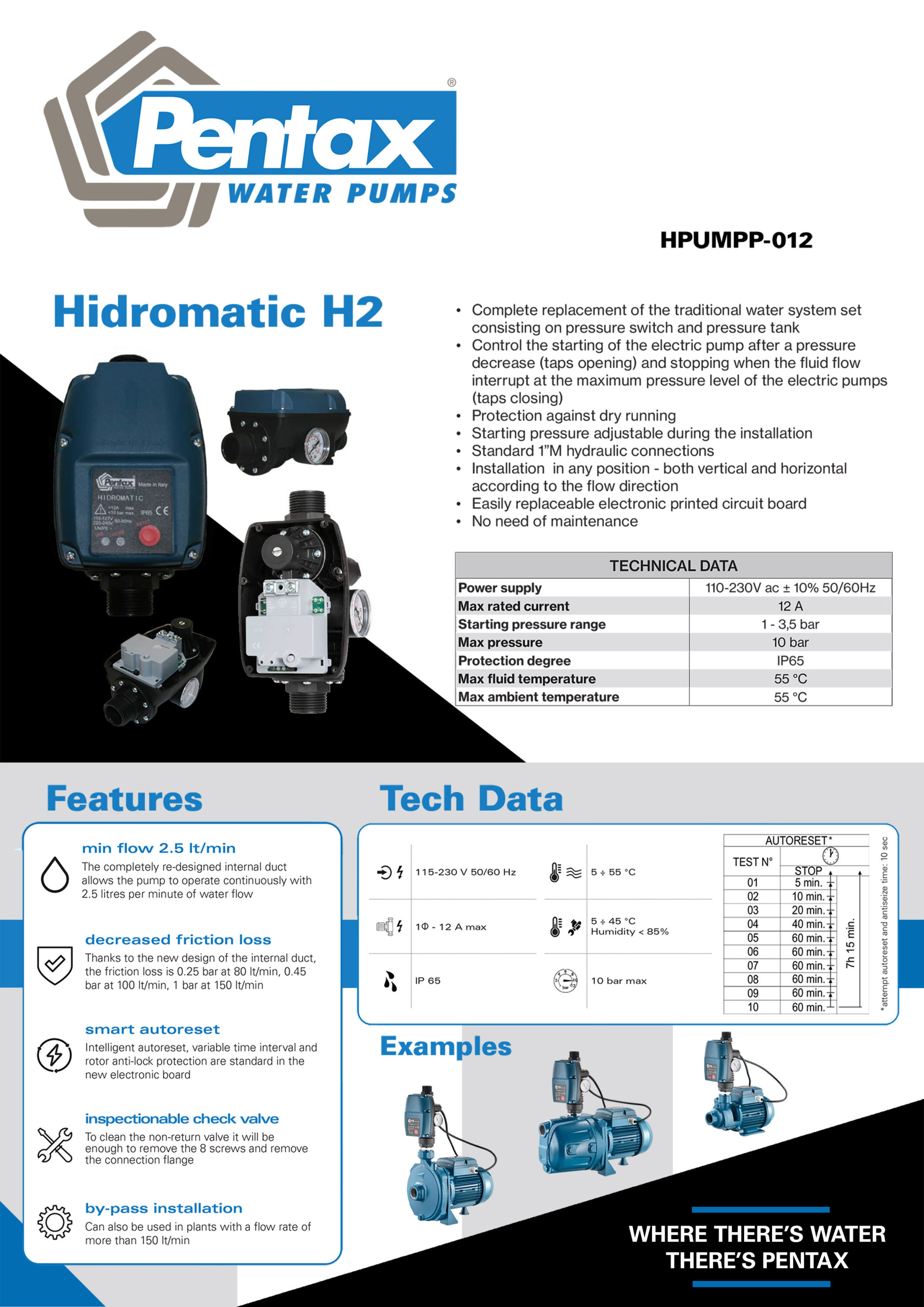

Features
- Complete replacement of the traditional water system set consisting of a pressure switch and pressure tank.
- Controls the starting of the electric pump after a pressure decrease (tap opening) and stops when the fluid flow is interrupted at the maximum pressure level of the electric pump (tap closing).
- Protection against dry running.
- Starting pressure adjustable during installation.
- Standard 1" M hydraulic connections.
- Installation in any position – both vertical and horizontal, according to the flow direction.
- Easily replaceable electronic printed circuit board.
- No need for maintenance.
Technical Data
| Feature | Specification |
|---|---|
| Voltage | 110 - 230V AC ± 10% 50/60Hz |
| Max. Rated Current | 12A |
| Starting Pressure Range | 1 - 3.5 bar |
| Max Pressure | 10 bar (145 PSI) |
| Protection Degree | IP65 |
| Max. Fluid Temperature | 55°C |
| Max. Ambient Temperature | 55°C |
