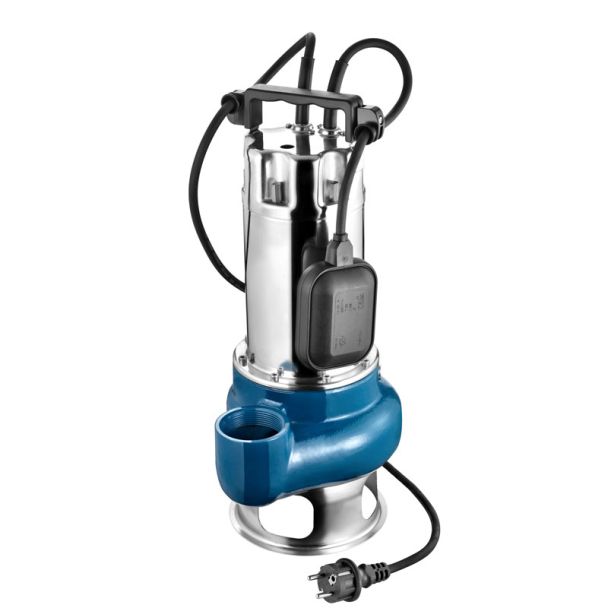

PENTAX DB150G 1700W 230V Submersible Drainage Pump (With FLOAT)
In stock
SKU
HPUMPD201
R 8,495.00

PENTAX DB150G 1700W 230V Submersible Drainage Pump (With FLOAT)

In stock
SKU
HPUMPD201
R 8,495.00
Check Store Availability
PENTAX DB150G 1700W 230V Submersible Drainage Pump (With FLOAT)
In stock
SKU
HPUMPD201

Find a Store

Drainage pump with “Double-Channel” impeller for pumping waste waters and liquids with suspended solids; ideal for civil and household applications. Single-phase version with built-in capacitor, thermal protector and equipped with a float switch.

More Information
Package Length (cm) 21.60
Package Width (cm) 26.60
Package Height (cm) 48.40
Package Weight (kg) 18.600000
Flow Rate 100 to 650 l/min
Specifications Description
Pump Specifications

Construction Features

FeatureSpecification
PaintingCataphoresis
Pump BodyCast iron
Shell, Motor Cover, Base SupportStainless steel
ImpellerStainless steel
Mechanical SealDouble seal with oil chamber: silicon carbide on pump side, ceramic graphite on motor side
Motor ShaftStainless steel AISI 430
Free PassageØ max 50mm
Max Submergence5m
Liquid Temperature0 - 40 °C
CableH07 RN8F, 10m
GFloat switch
Maximum Flow Rate650 l/m (39m³/h)
Maximum Head13.6m
Water QualityGrey water & black water

Motor

FeatureSpecification
Two Poles Induction Motor1~ 230V-50Hz (with thermal protection)
Insulation ClassF
Protection DegreeIPX8
Amperage8A
Power Output1700W

Dimensions

FeatureSpecification
Outlet Size2" G
Product FAQs

How do I order a Product?

You are welcome to visit any of our stores nationwide. Alternatively you can order the product here on our website. Simply click add to cart to begin. We offer both delivery option or collection in store

Is the payments secure?

Yes. You payment information is never present on our website or the payment providers software. Its all encrypted with the highest level of security. You are welcome to contact our payment providers websites for more information

How can I contact you?

You can contact any store directly from the store locator page. Or alternatively use the button on the right. All your contact information is on our contact page for easy reference

How long does delivery take?

Delivery orders are sent from our warehouse DC in Aeroton every business day. Time for final delivery is between 3-5 business days for most orders. Sometimes sooner for main centres. Deliveries are completed by our trusted couriers & logistics partners

How can I make payment?

In store we offer Visa & Mastercard or EFT payments (please note EFT payments take 48 Hours to clear). Alternatively online we offer Visa, Mastercard & Secure Instant EFT

Drainage pump with "Double-Channel" impeller for pumping waste waters and liquids with suspended solids; ideal for civil and household applications. The single-phase version with built-in capacitor and thermal protector, equipped with a float switch.
