PENTAX DX100G 1350W 230V Submersible Drainage Pump (With FLOAT)
In stock
SKU
HPUMPD100
R 7,595.00

PENTAX DX100G 1350W 230V Submersible Drainage Pump (With FLOAT)

In stock
SKU
HPUMPD100
R 7,595.00
Check Store Availability
PENTAX DX100G 1350W 230V Submersible Drainage Pump (With FLOAT)
In stock
SKU
HPUMPD100

Find a Store

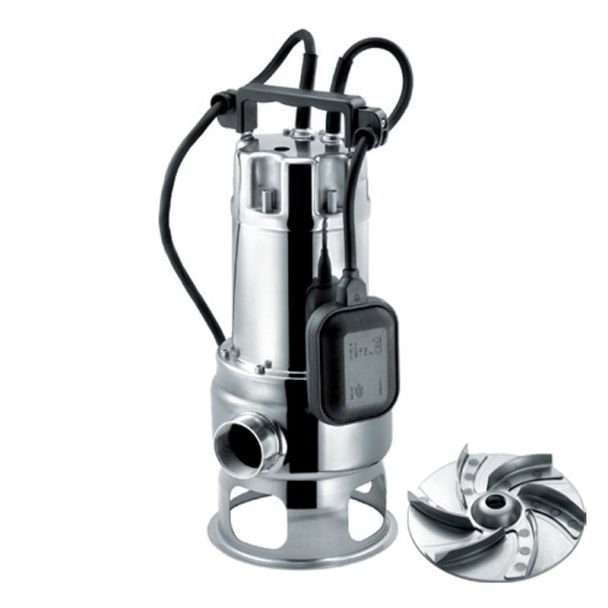

Drainage pump with set-back Vortex type impeller for pumping charged waters and liquids with suspended solids; ideal for civil and household applications. The single-phase version with built-in capacitor, thermal protector and equipped with a float switch.

More Information
Package Length (cm) 17.00
Package Width (cm) 24.80
Package Height (cm) 41.60
Package Weight (kg) 12.120000
Specifications Description

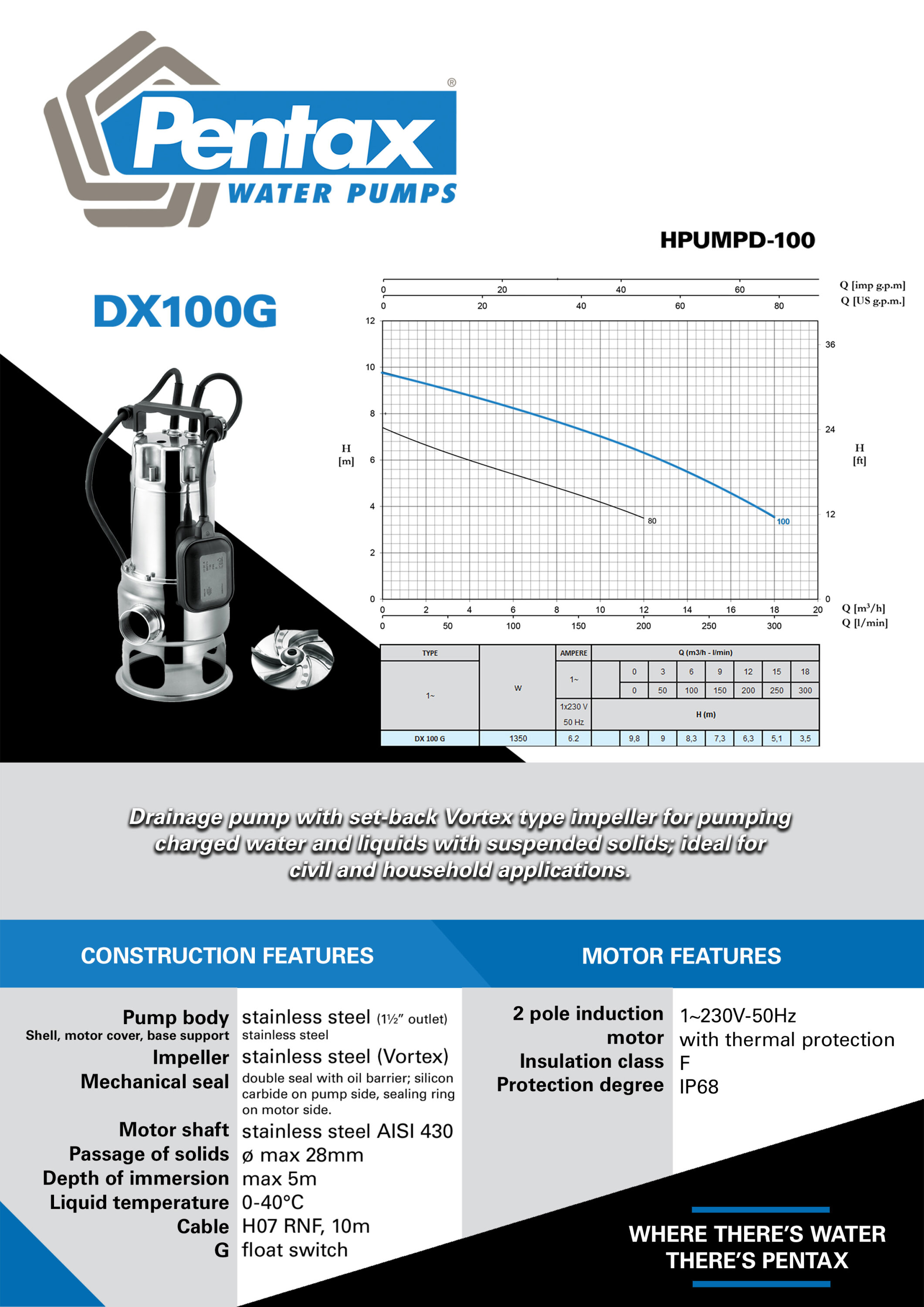

Pump Specifications

Construction Features

FeatureSpecification
Pump BodyStainless steel
Shell, Motor Cover, Base SupportStainless steel
ImpellerStainless steel vortex type
Mechanical SealDouble seal with oil barrier: silicon carbide on pump side, sealing ring on motor side
Motor ShaftStainless steel AISI 430
Free PassageØ max 28mm
Max Submergence5m
Liquid Temperature0 - 40 °C
CableH07 RN8F, 10m
GFloat switch
Maximum Flow Rate300 l/m (18m³/h)
Maximum Head9.8m
Water QualityGrey water and black water

Motor

FeatureSpecification
Two Poles Induction Motor1~ 230V-50Hz (with thermal protection)
Insulation ClassF
Protection DegreeIPX8
Amperage6.2A
Power Output1350W

Dimensions

FeatureSpecification
Outlet Size1 1/2" G
