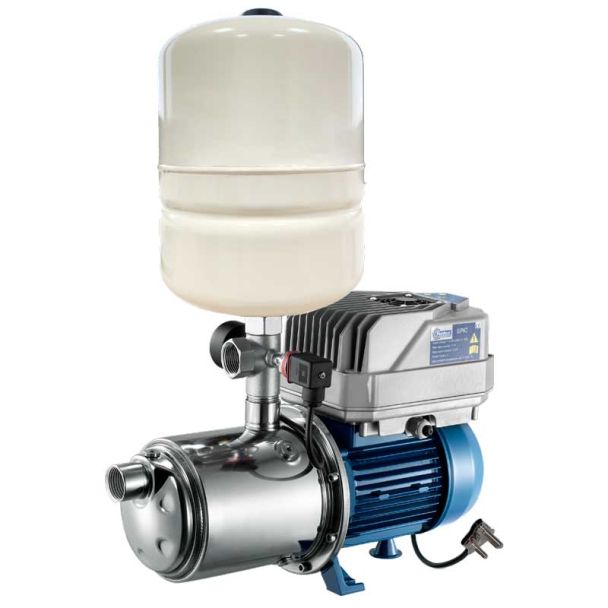

PENTAX Variable Speed Drive Booster Pump (Epic Superdomus) 1.3KW
In stock
SKU
HPUMPV186
R 19,695.00

PENTAX Variable Speed Drive Booster Pump (Epic Superdomus) 1.3KW

In stock
SKU
HPUMPV186
R 19,695.00
Check Store Availability
PENTAX Variable Speed Drive Booster Pump (Epic Superdomus) 1.3KW
In stock
SKU
HPUMPV186

Find a Store

Pentax is proud to present the new Epic Superdomus booster set, featuring Variable Speed Drive technology to provide Constant Pressure in a variety of 230V (Single phase) residential, commercial & semi-industrial applications.





More Information
Specifications Description
Pump Specifications

Construction Features

FeatureSpecification
Pump BodyStainless steel AISI 304
Motor BracketAluminum
ImpellerStainless steel AISI 304
Mechanical SealCeramic-graphite-EDPM
Motor ShaftStainless steel AISI 303
Liquid Temperature-15 to +110 °C
Operating PressureMax 8.5 bar
Maximum Flow Rate140 l/m (8.4m³/h)
Maximum Head67m

Motor

FeatureSpecification
Two Poles Induction Motor3~ 230/400V-50Hz
Insulation ClassF
Protection DegreeIPX4
Amperage3.3A
Power Output1.5 KW (2 HP)

Dimensions

FeatureSpecification
Inlet Size1" G
Outlet Size1" G

Features

Feature
Variable speed drive EPIC - single-phase supply (1-230V-in, 3-230V-out)
Three-phase horizontal pump (PENTAX U5S-180/6T)
Stainless steel 5-way connector with built-in non-return valve
Pressure sensor (transducer)
Pressure gauge (glycerine filled)
8 liters diaphragm pressure tank
Cable with 3-pin plug

Functioning

If the pressure in the network drops, the pump will gradually speed up to provide the set with more pressure. When the water demand decreases, the pressure will rise, causing the pump speed to slow down and eventually stop the pump if the demand ceases. The pump will remain on standby, waiting to start at the next water demand.

VSD Specs

FeatureSpecification
Input Rated Voltage1×230V
Output Rated Voltage3×230V
Max Electric Pump Current6.8A
Max Nominal Power P2 (for U5S)1.85KW (2.5HP)
Package Weight (kg) 22.560000
Package Length (cm) 65.00
Package Width (cm) 24.00
Package Height (cm) 66.80
Pentax is proud to present the new Epic Superdomus booster set, featuring Variable Speed Drive technology to provide Constant Pressure in a variety of 230V (Single phase) residential, commercial & semi-industrial applications.
