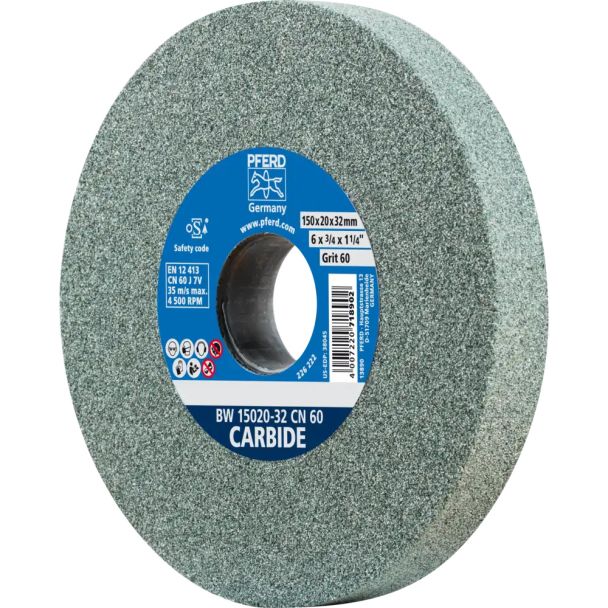

PFERD Carbide Bench Grinding wheel 150x20mm

• Type: CARBIDE (For hard materials)
• External Diameter: 150 mm
• Hole Diameter: 32 mm
• Grit Size: 60
• Width: 20 mm
• RPM, Max: 4500 RPM
• Packaging Unit: 1 piece
• Reductions [mm]: 25/20/16

Description: PFERD bench grinding wheels are designed to fit standard bench grinders, specifically tailored for sharpening hard materials such as tungsten carbide tools.

Advantages:

• Long tool life.
• High dimensional stability.
• High abrasive performance.
• Integrated adapter sleeves enable mounting on almost any bench grinder spindle.

Recommendations for Use:

• Regularly dress the disc to expose sharp grain and maintain an even grinding area.
• Adjust the workpiece support to the grinding disc diameter, ensuring a gap width of max. 3 mm.

Safety Notes:

• The maximum permitted peripheral speed is 35 m/s.
• Never exceed the indicated maximum rotational speed for safety reasons.
• Perform a ring test before clamping to ensure the grinding tool is free from cracks. A clear tone indicates an undamaged tool.

Materials Suitable for Grinding:

• Glass
• Hardened, heat-treated steels over 1,200 N/mm² (< 38 HRC)
• Steel materials with a hardness > 54 HRC
• Tungsten carbide

Applications:

• Deburring
• Sharpening
• Working on edges (chamfering, rounding)

Drive Type:

• Bench grinder
