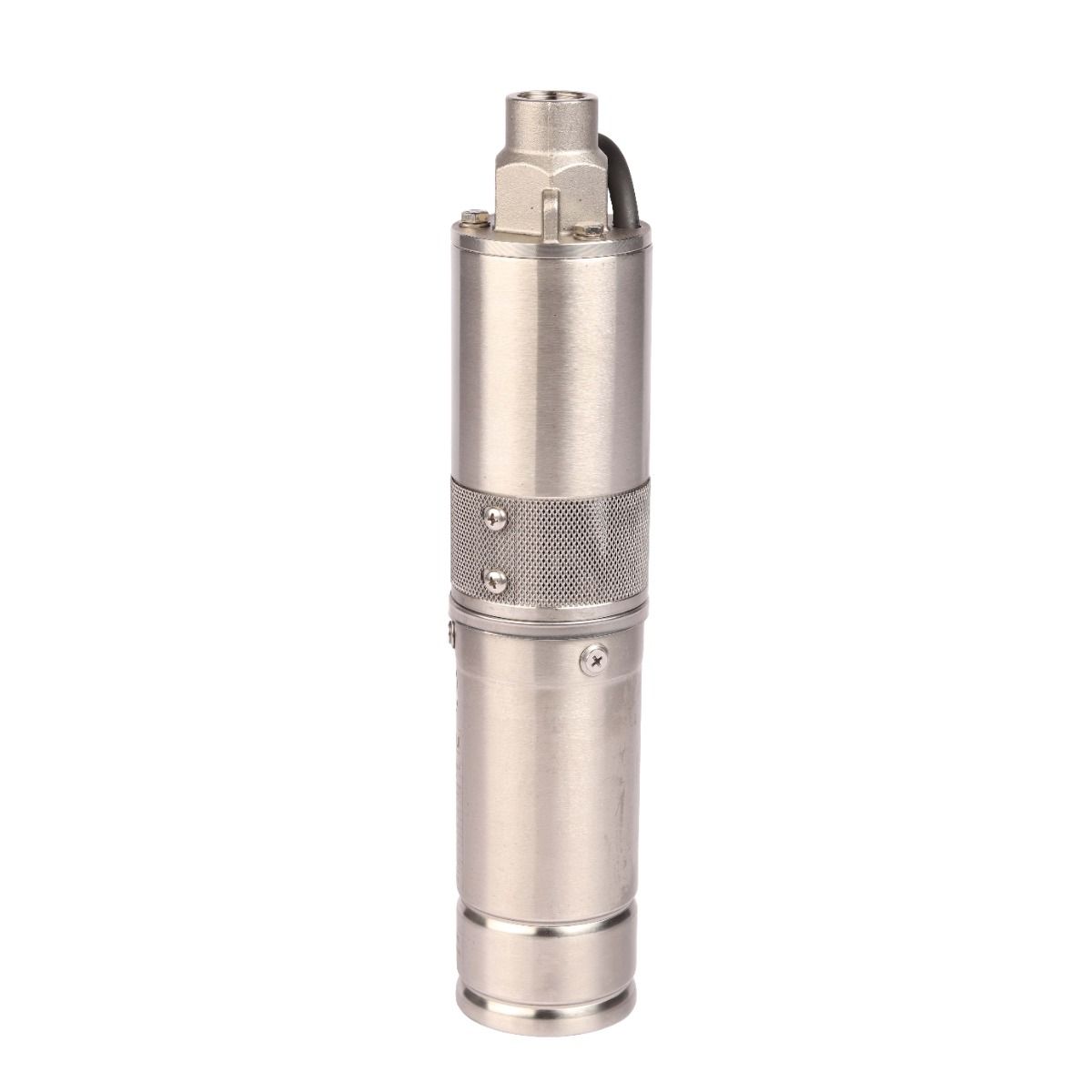

Taifu 3" Solar DC Bore Hole Pump 500W 48V DC (3TSS2-110-48/500)
The Taifu 3" Solar DC Bore Hole Pump 500W 48V DC is an efficient and durable solution for deep well water extraction. Designed for off-grid and solar-powered systems, it ensures reliable performance in agricultural and residential applications.
| Package Length (cm) | 47.24 |
|---|---|
| Package Width (cm) | 33.78 |
| Package Height (cm) | 18.03 |
| Package Weight (kg) | 8.390000 |
Pump Specifications
| Feature | Specification |
|---|---|
| Power | 500 W |
| Outlet Size | 3/4" IN |
| Max Head | 110M |
| Recommended Operating Pressure | 1.1 m³/h @ 60m |
| DC Voltage | 48 V |
| Open Circuit Voltage | <100 V |

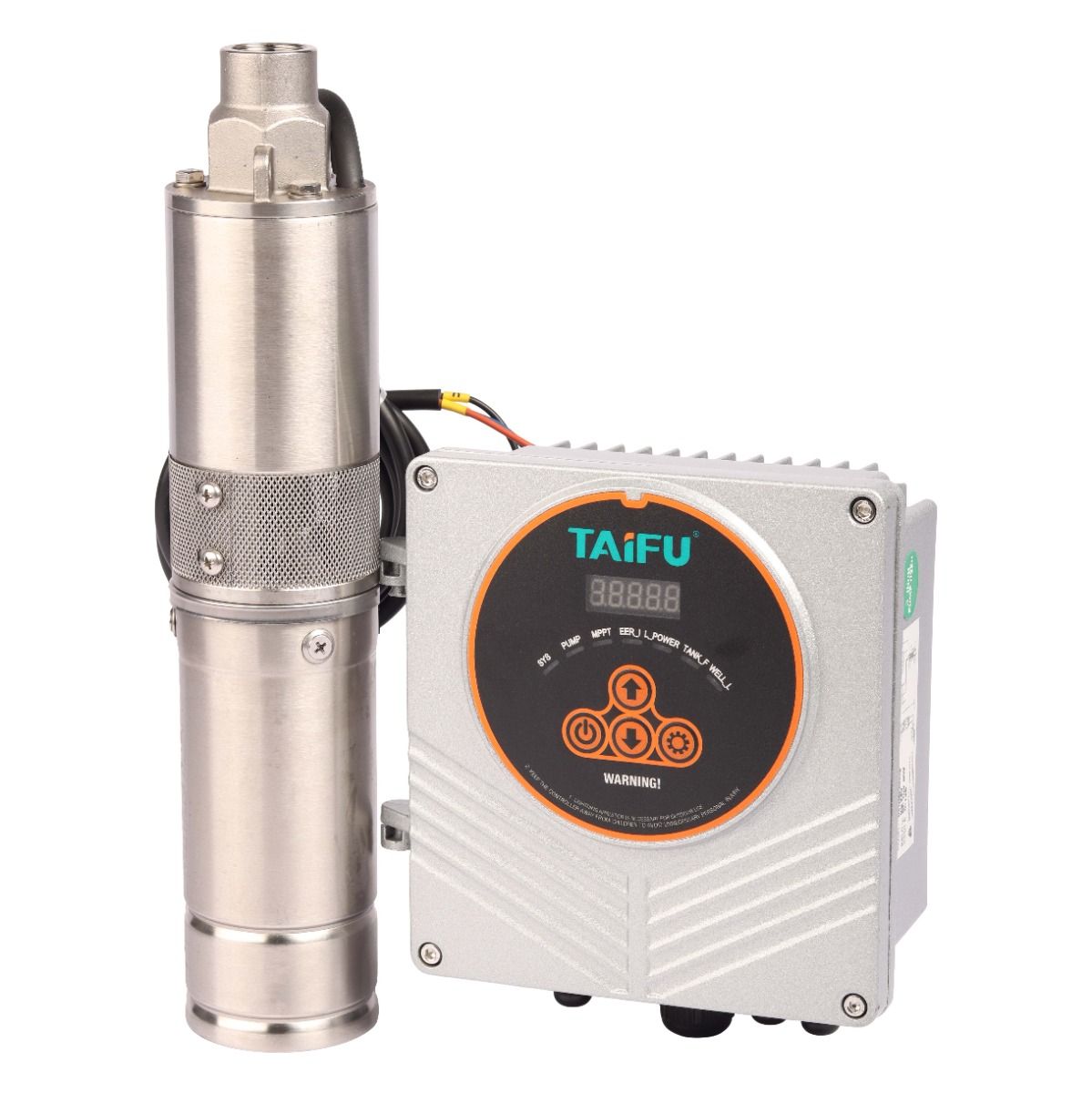

| Includes | Controller |
Electrical Specifications
| Feature | Specification |
|---|---|
| Voltage | 220 V DC |
| Current | 10 A |
| Max Current | 12 A |
| Open Circuit Voltage Input | 60 V - 430 V |
| Max Open Circuit Voltage | 430 V |
| Overvoltage Circuit Protection Value | 430 V ±5% |
| Overvoltage Restoration Value | 410 V ±5% |
| Min Input Voltage | 60 V |
| Undervoltage Protection Value | 60 V ±5% |
| Undervoltage Restoration Value | 70 V ±5% |
| Max Power | 2200 W ±5% |
